Visualization

The package exports a single viz command that can be used to add objects to the scene with a consistent set of options.

Meshes.viz — Function

viz(object; [options])

Visualize Meshes.jl object with various options.

Available options

color - color of geometries
alpha - transparency in [0,1]
colormap - color scheme/map from ColorSchemes.jl
colorrange - minimum and maximum color values
showsegments - visualize segments
segmentcolor - color of segments
segmentsize - width of segments
showpoints - visualize points
pointmarker - marker of points
pointcolor - color of points
pointsize - size of points

The option color can be a single scalar or a vector of scalars. For Mesh subtypes, the length of the vector of colors determines if the colors should be assigned to vertices or to elements.

Examples

Different coloring methods (vertex vs. element):

# vertex coloring (i.e. linear interpolation)
viz(mesh, color = 1:nvertices(mesh))

# element coloring (i.e. discrete colors)
viz(mesh, color = 1:nelements(mesh))

Different strategies to show the boundary of geometries (showsegments vs. boundary):

# visualize boundary with showsegments
viz(polygon, showsegments = true)

# visualize boundary with separate call
viz(polygon)
viz!(boundary(polygon))

Notes

This function will only work in the presence of a Makie.jl backend via package extensions in Julia v1.9 or later versions of the language.

source

No docstring defined.

Plot type

The plot type alias for the viz function is Viz.

Attributes

alpha = nothing — No docs available.

color = :slategray3 — No docs available.

colormap = nothing — No docs available.

colorrange = nothing — No docs available.

pointcolor = :gray30 — No docs available.

pointmarker = :circle — No docs available.

pointsize = 4 — No docs available.

segmentcolor = :gray30 — No docs available.

segmentsize = 1.5 — No docs available.

showpoints = false — No docs available.

showsegments = false — No docs available.

source

Meshes.viz! — Function

viz!(object; [options])

Visualize Meshes.jl object in an existing scene with options forwarded to viz.

source

viz! is the mutating variant of plotting function viz. Check the docstring for viz for further information.

source

Geometries

We can visualize a single geometry or multiple geometries in a vector:

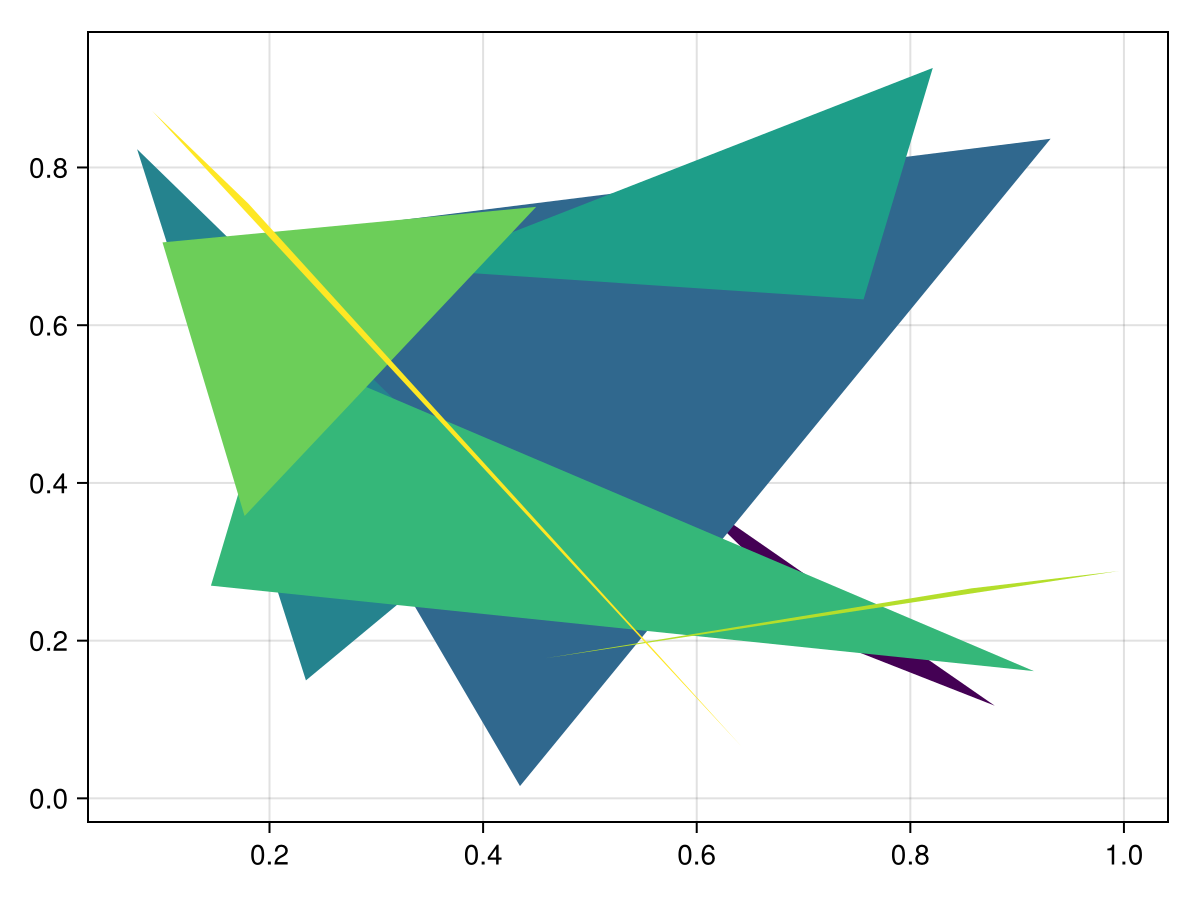

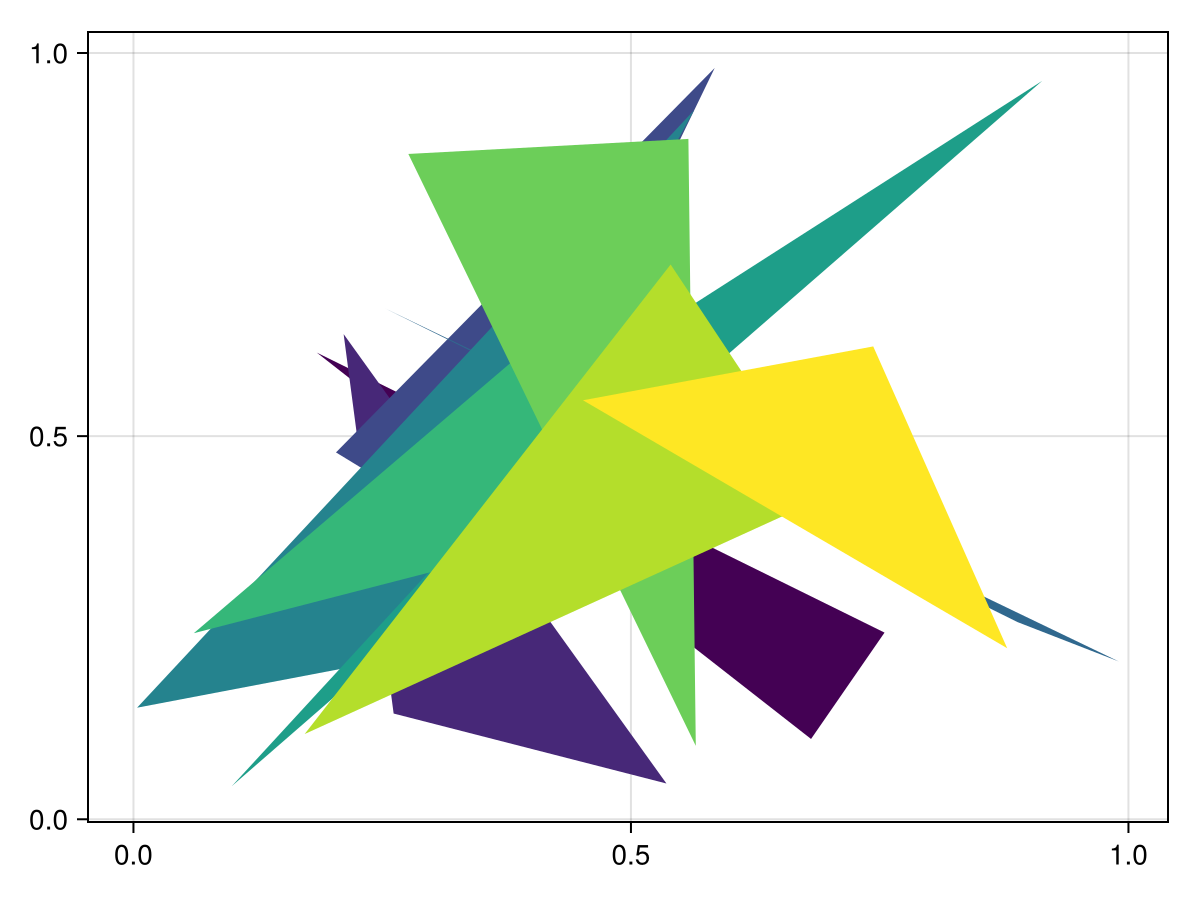

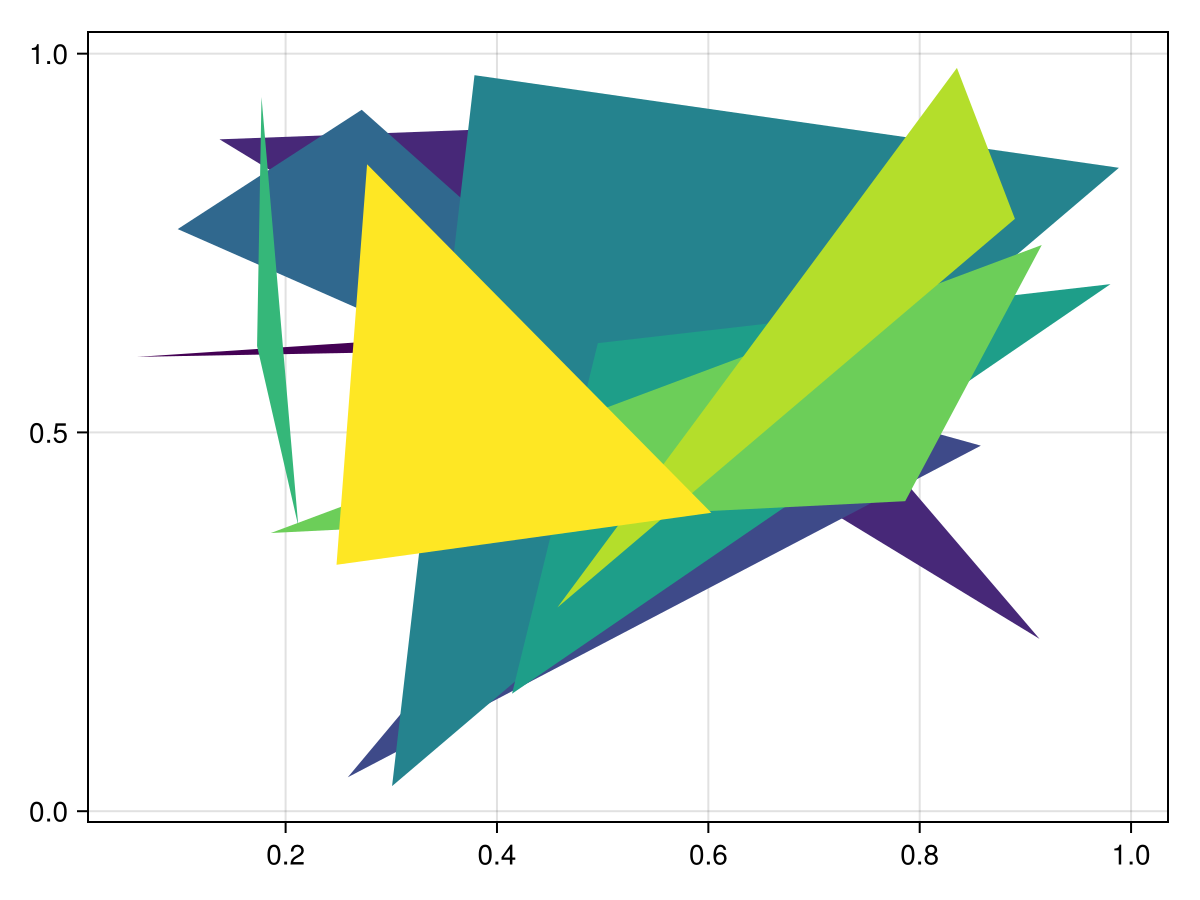

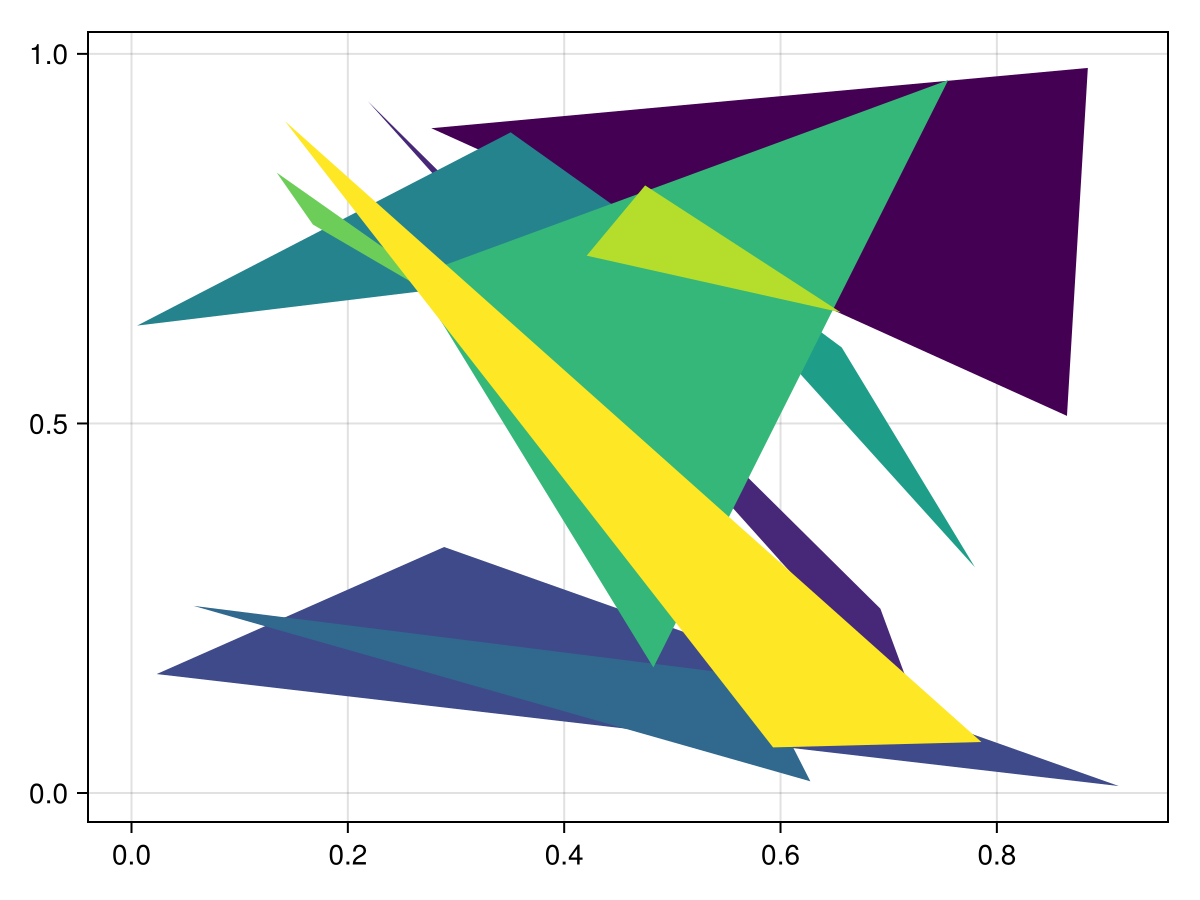

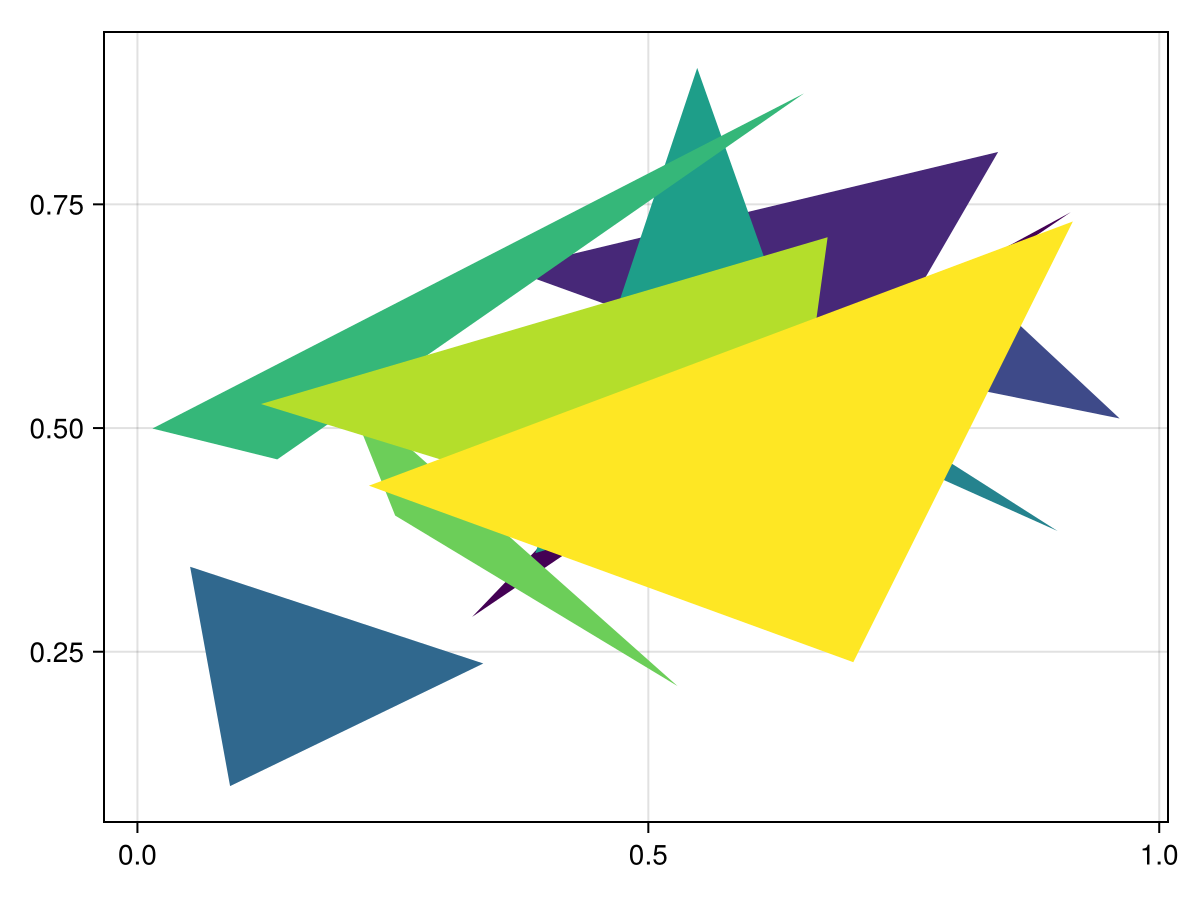

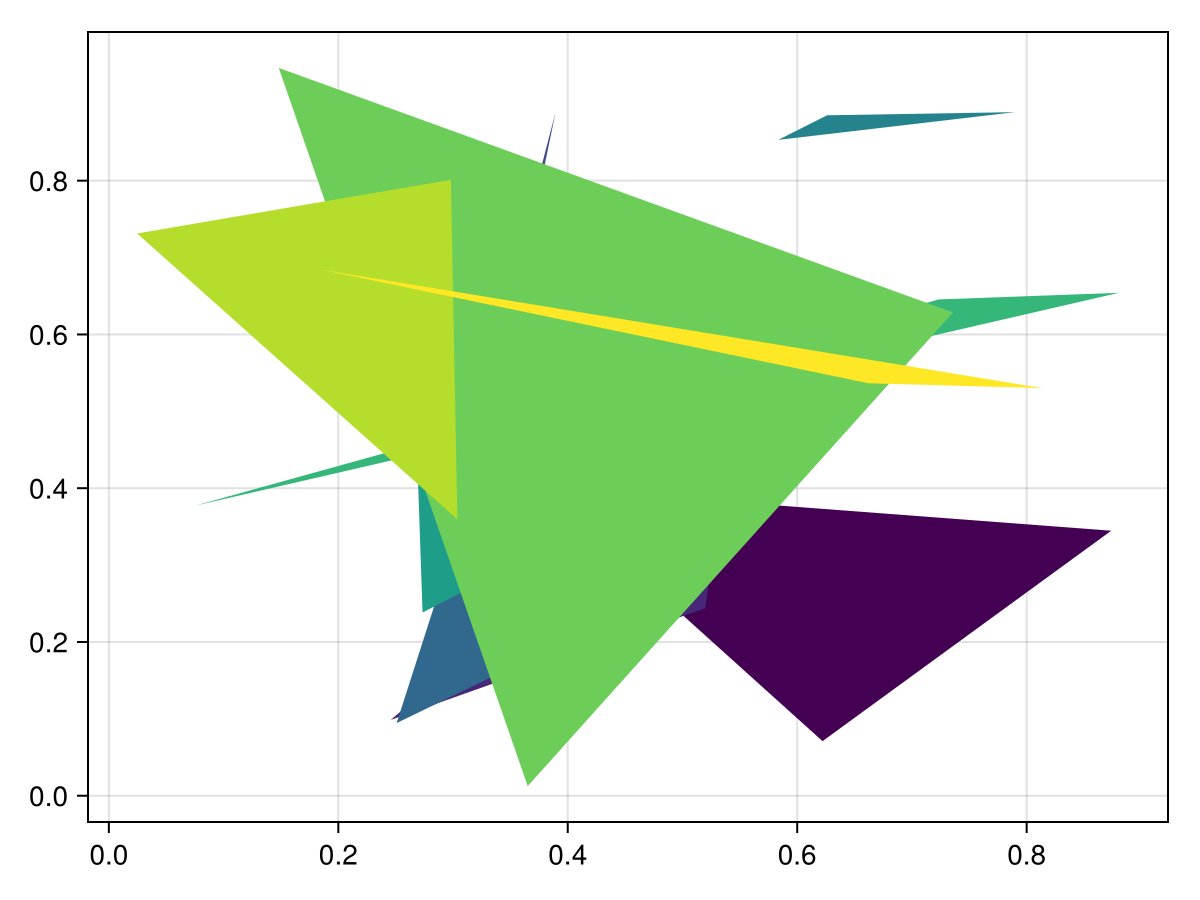

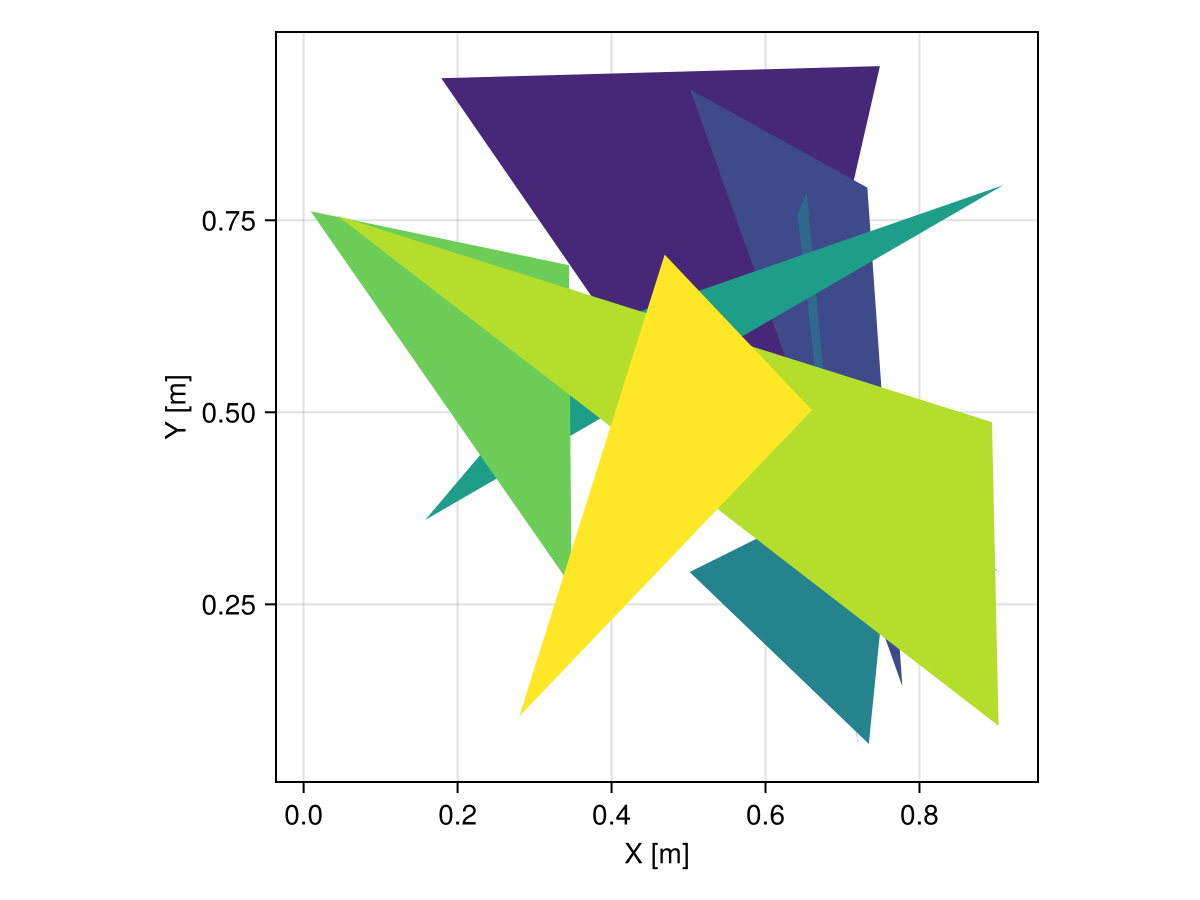

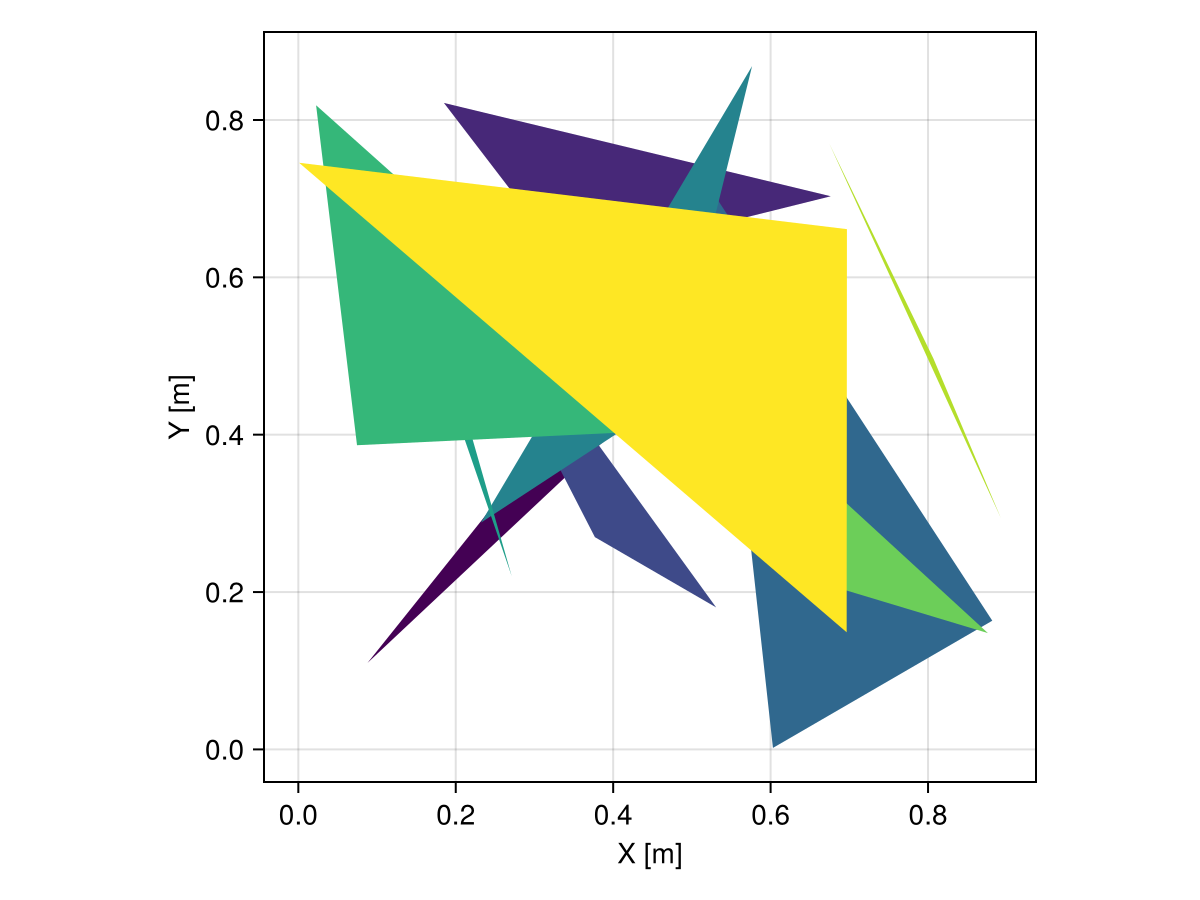

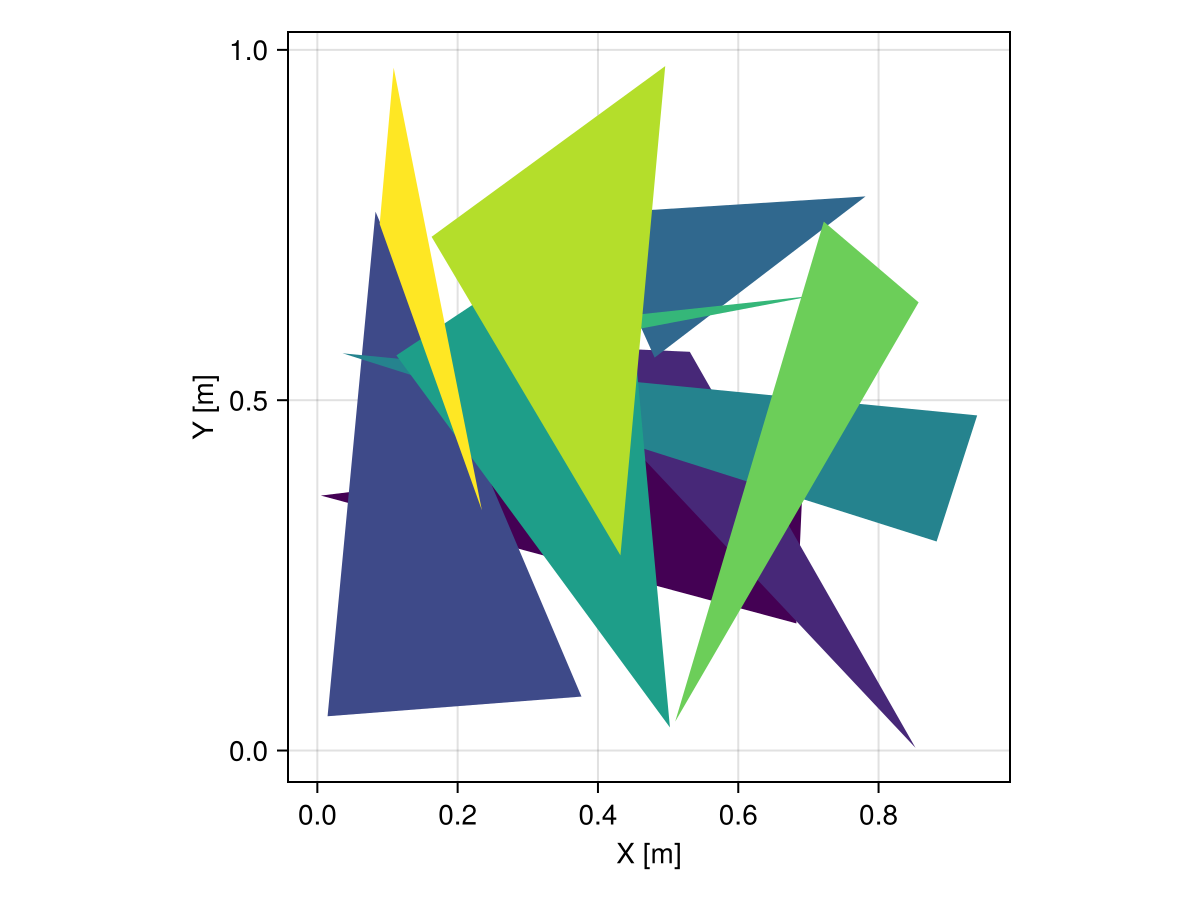

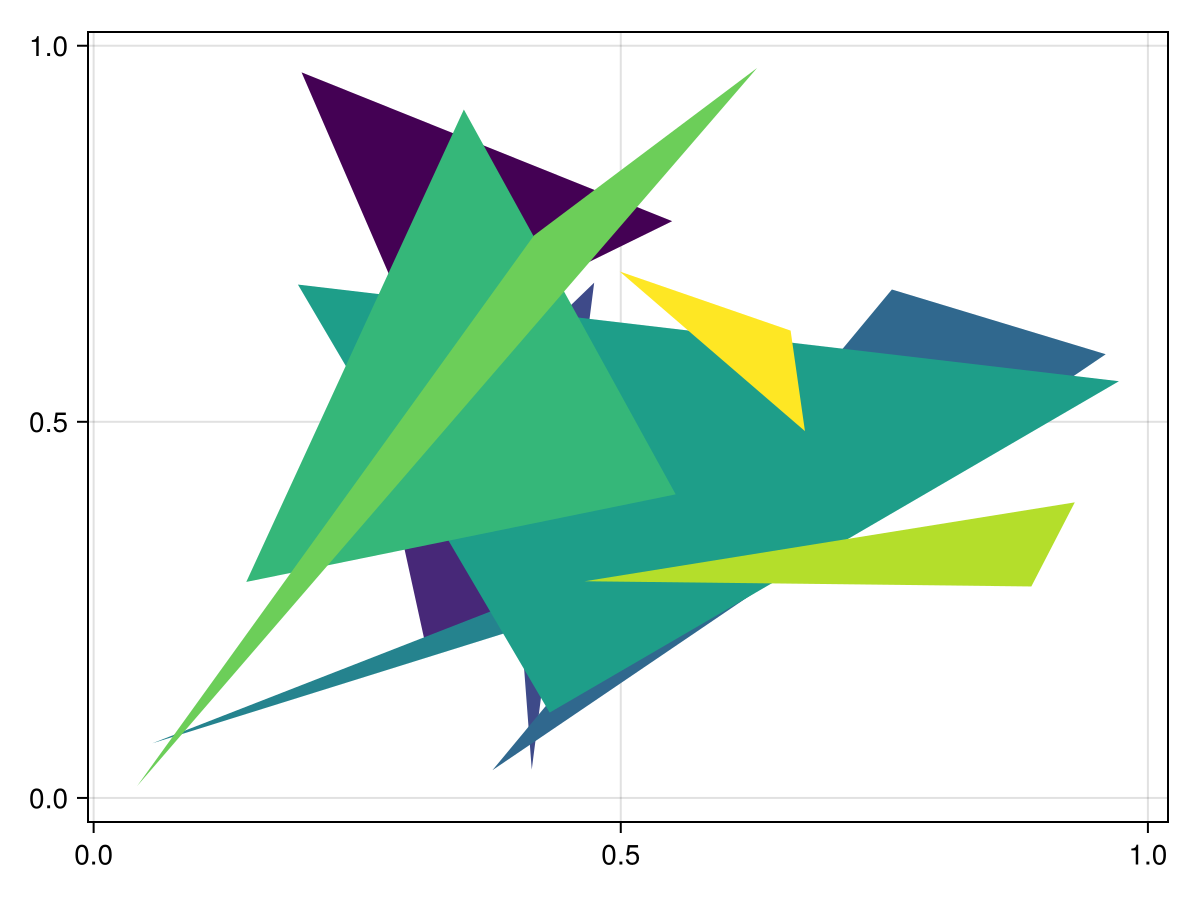

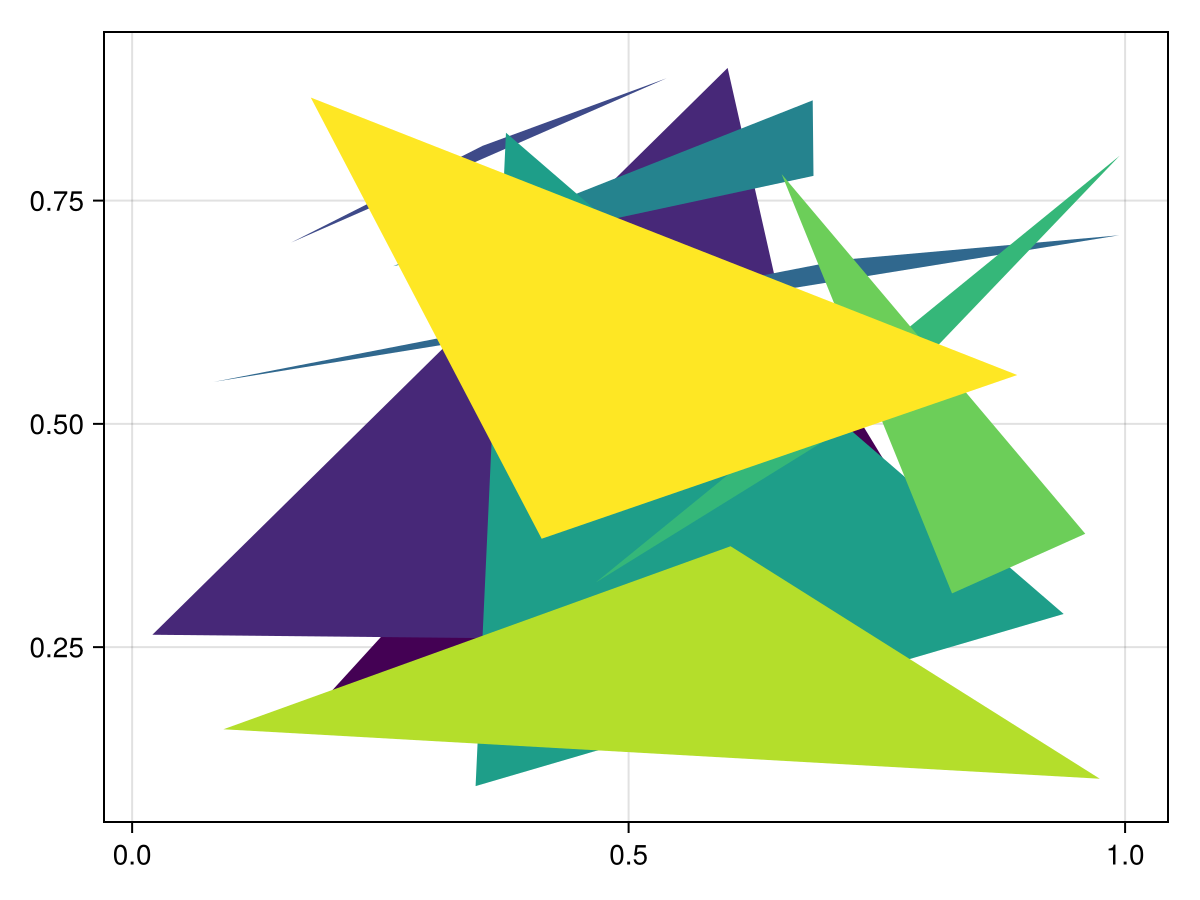

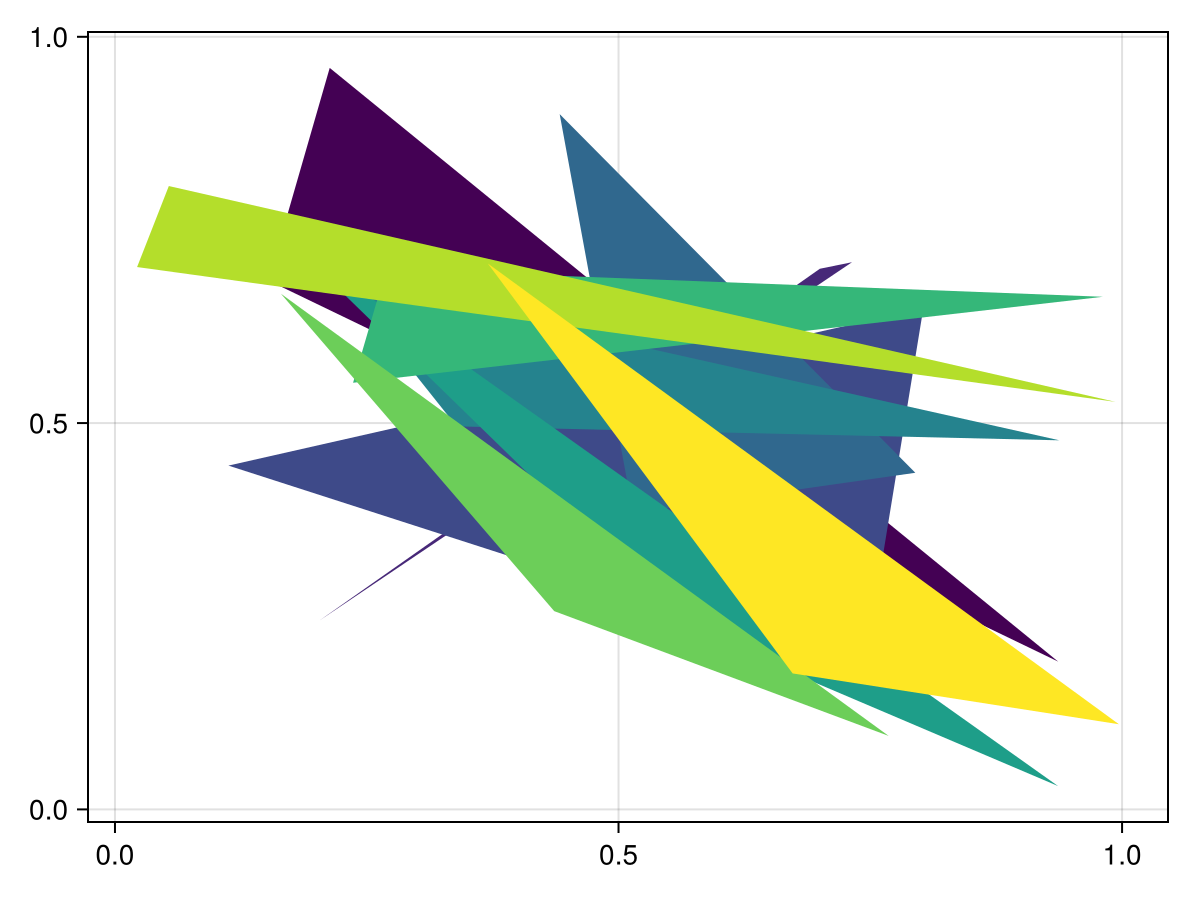

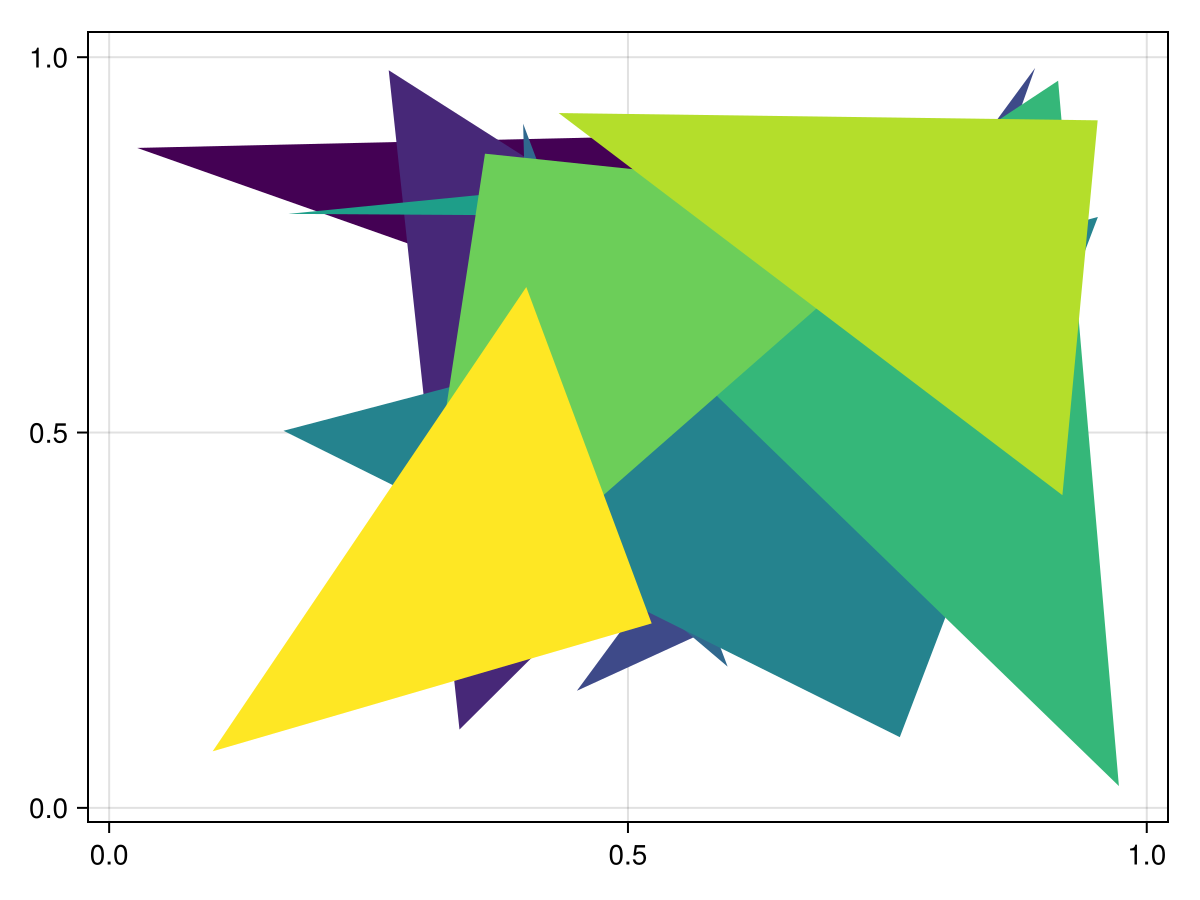

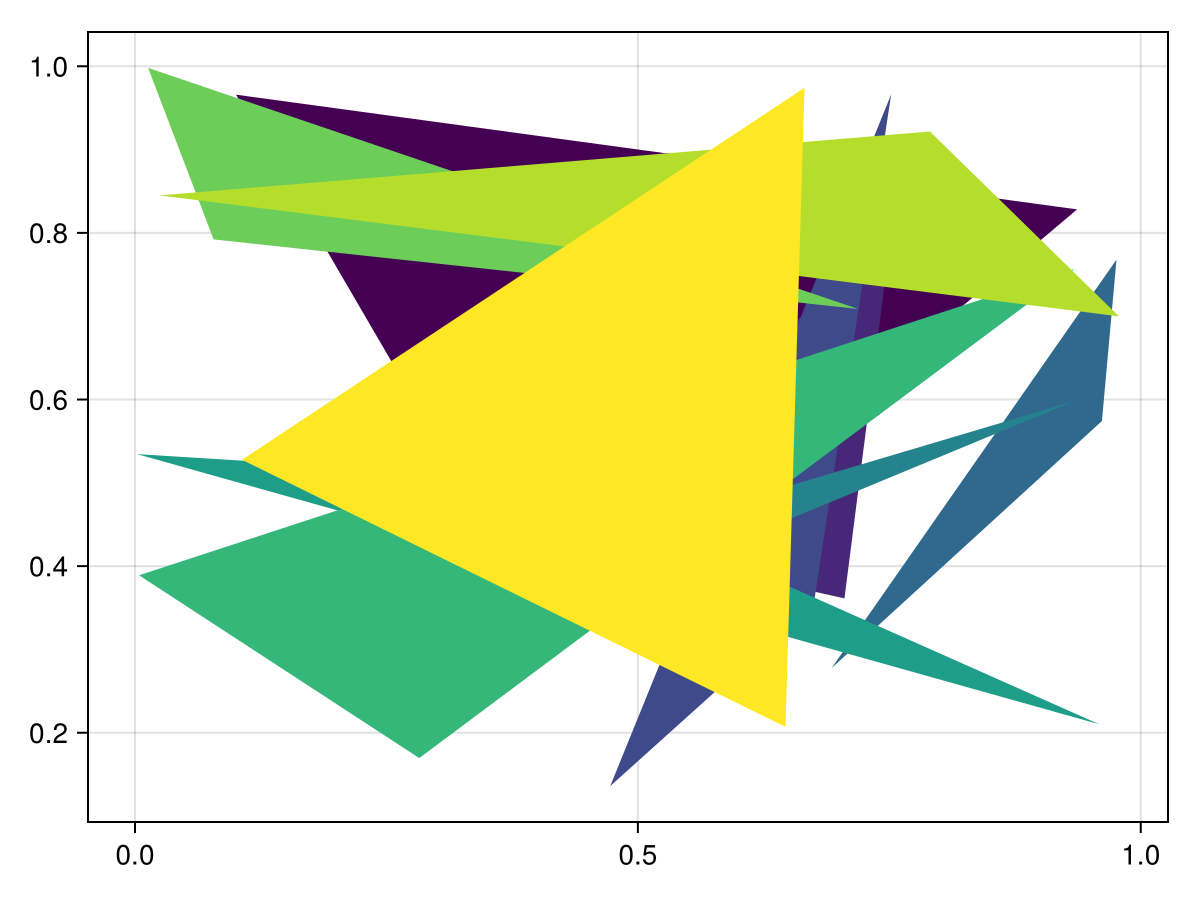

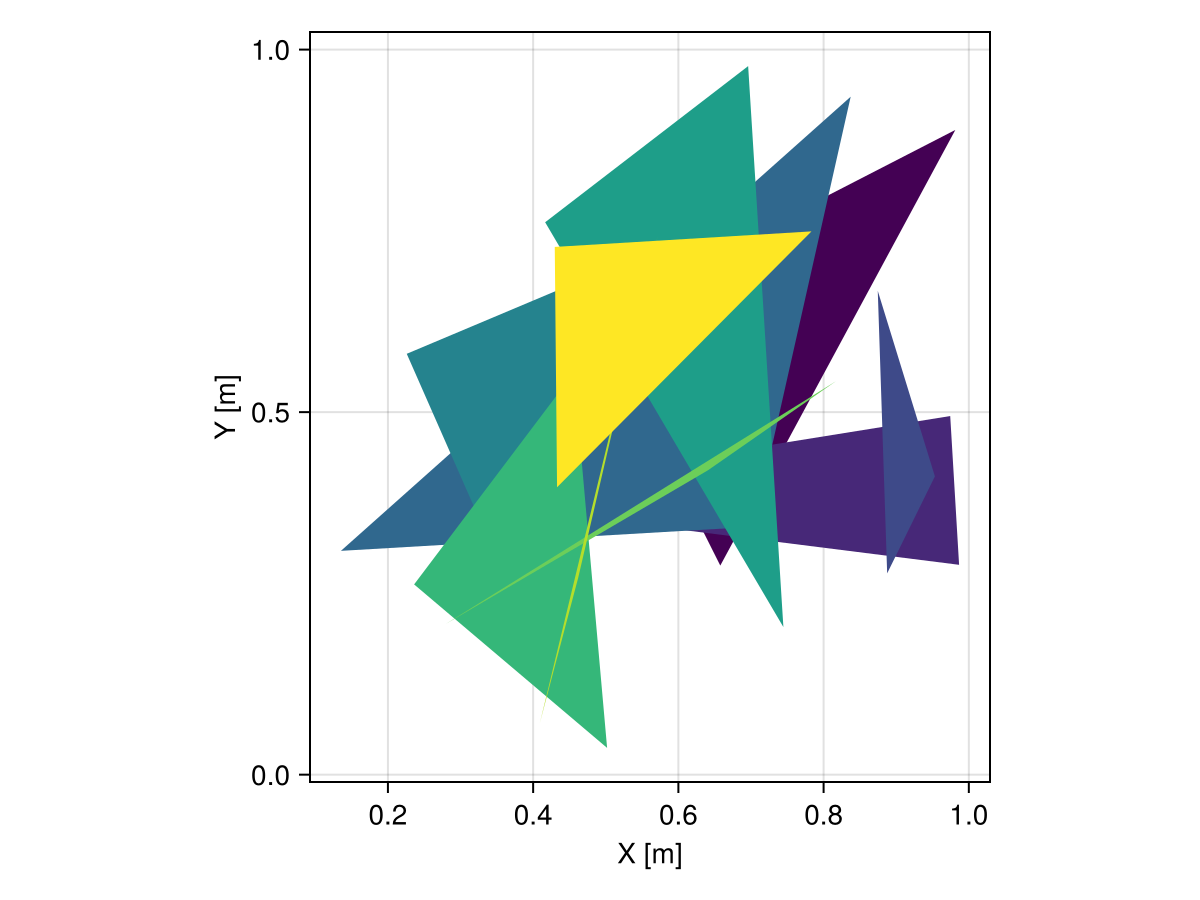

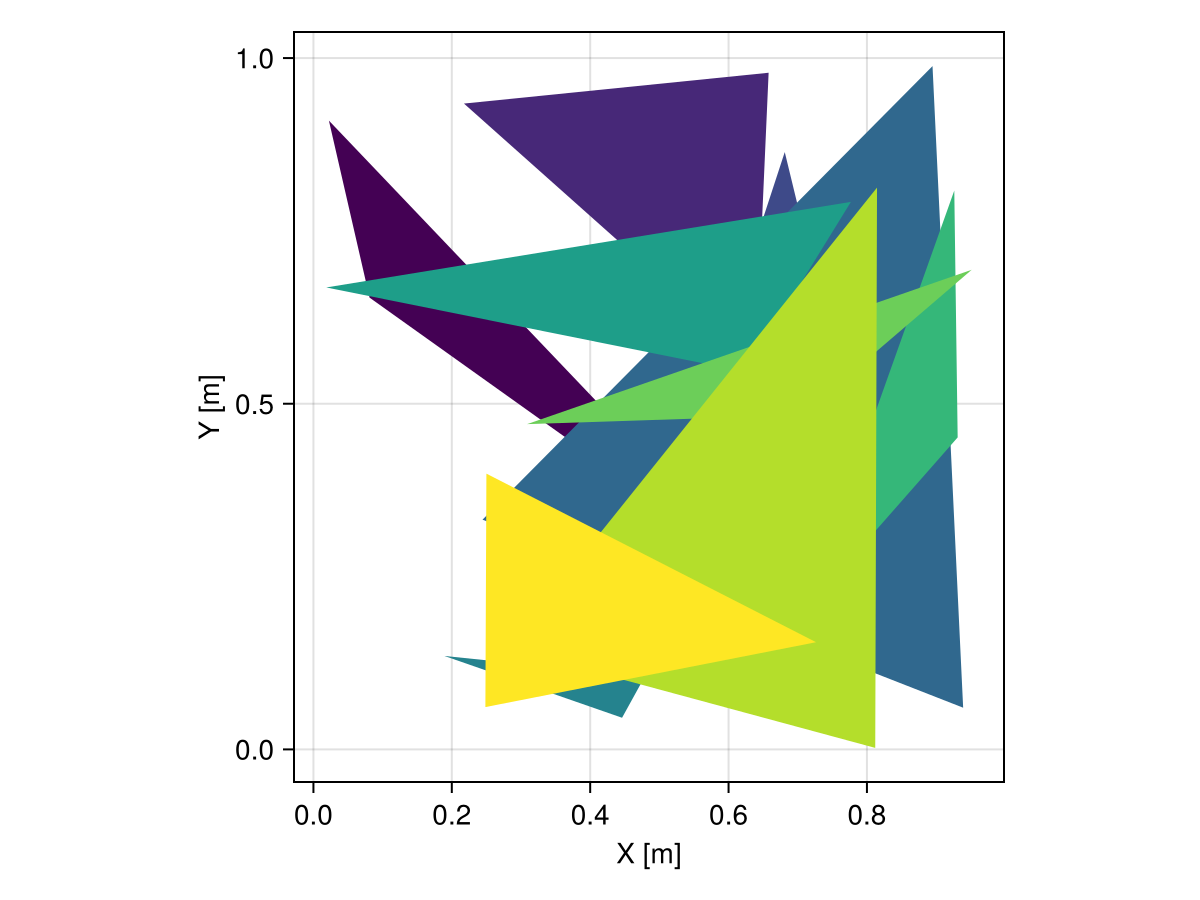

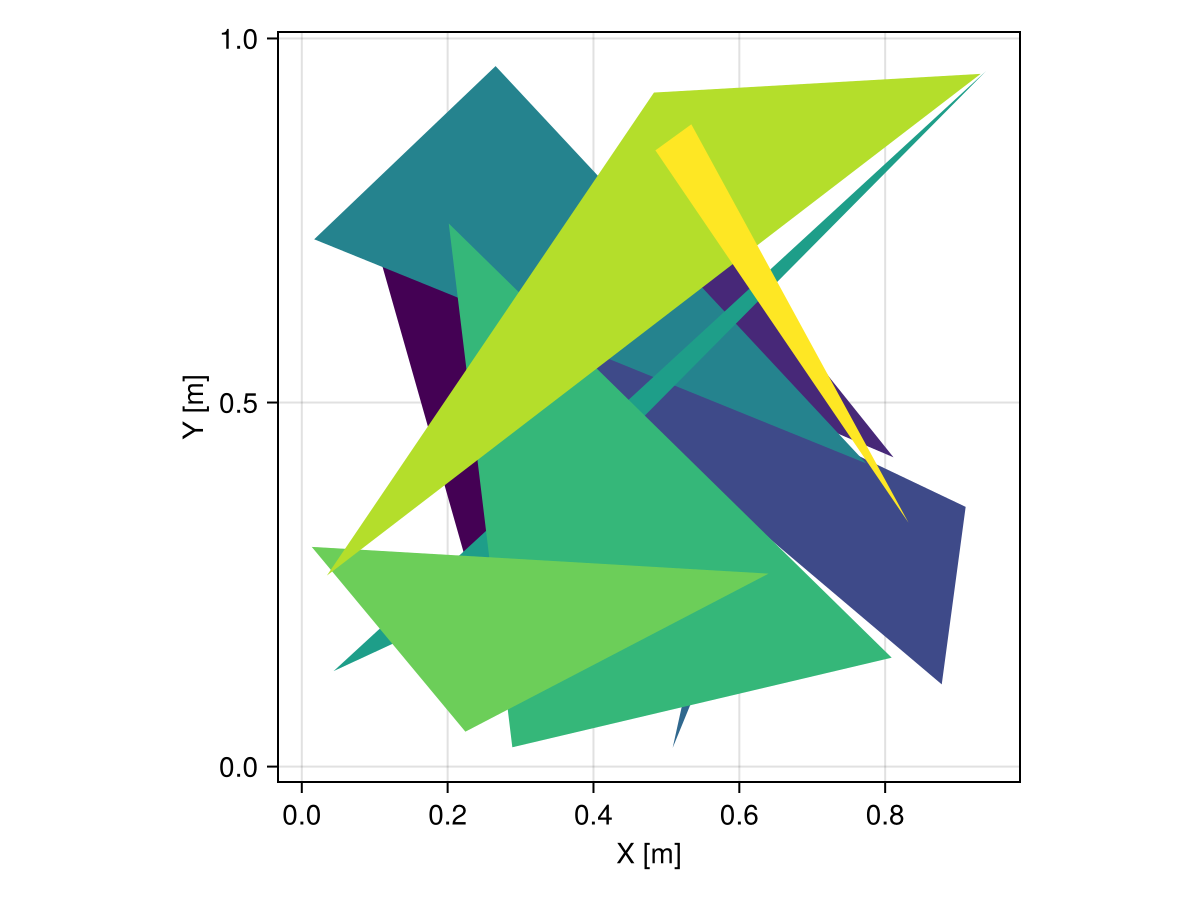

triangles = rand(Triangle, 10, crs=Cartesian2D)

viz(triangles, color = 1:10)

Domains

Alternatively, we can visualize domains with topological information such as Mesh and show facets efficiently:

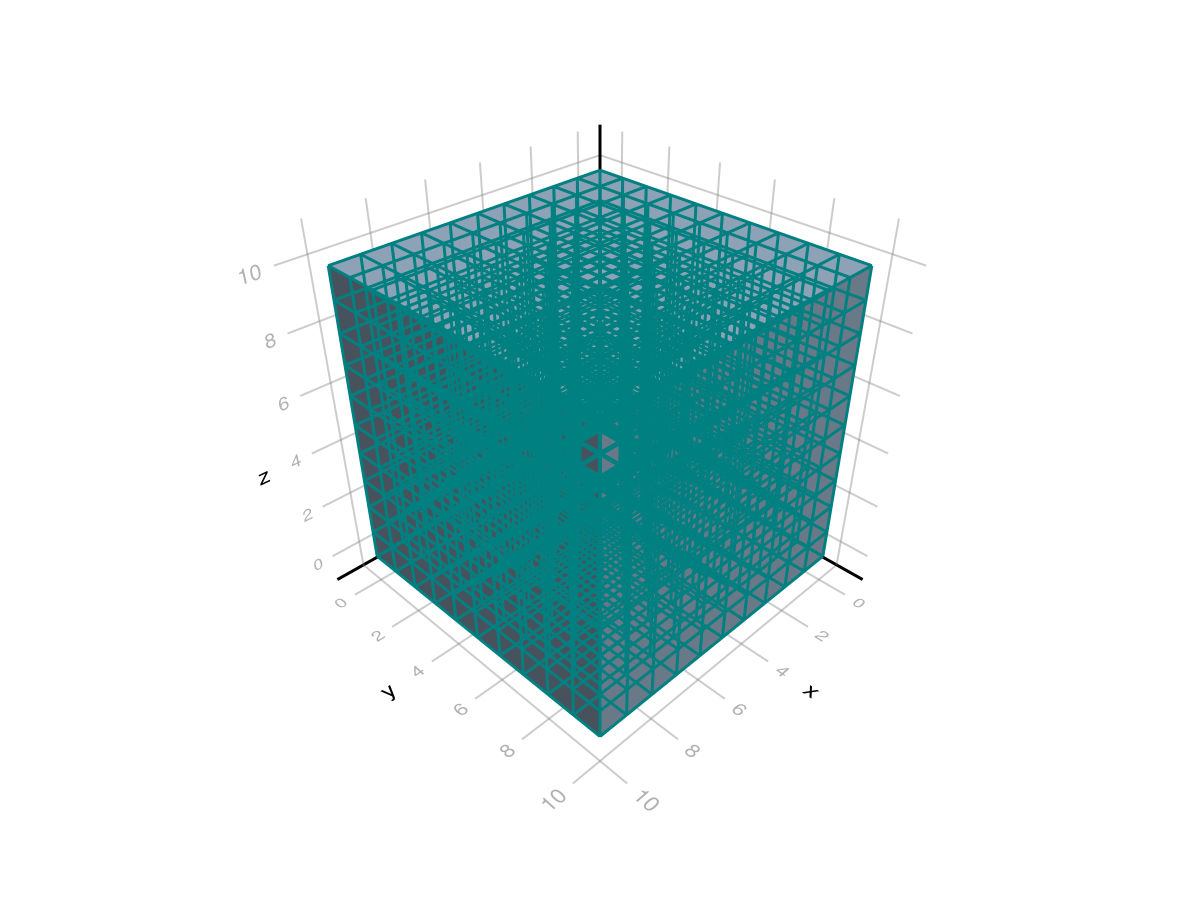

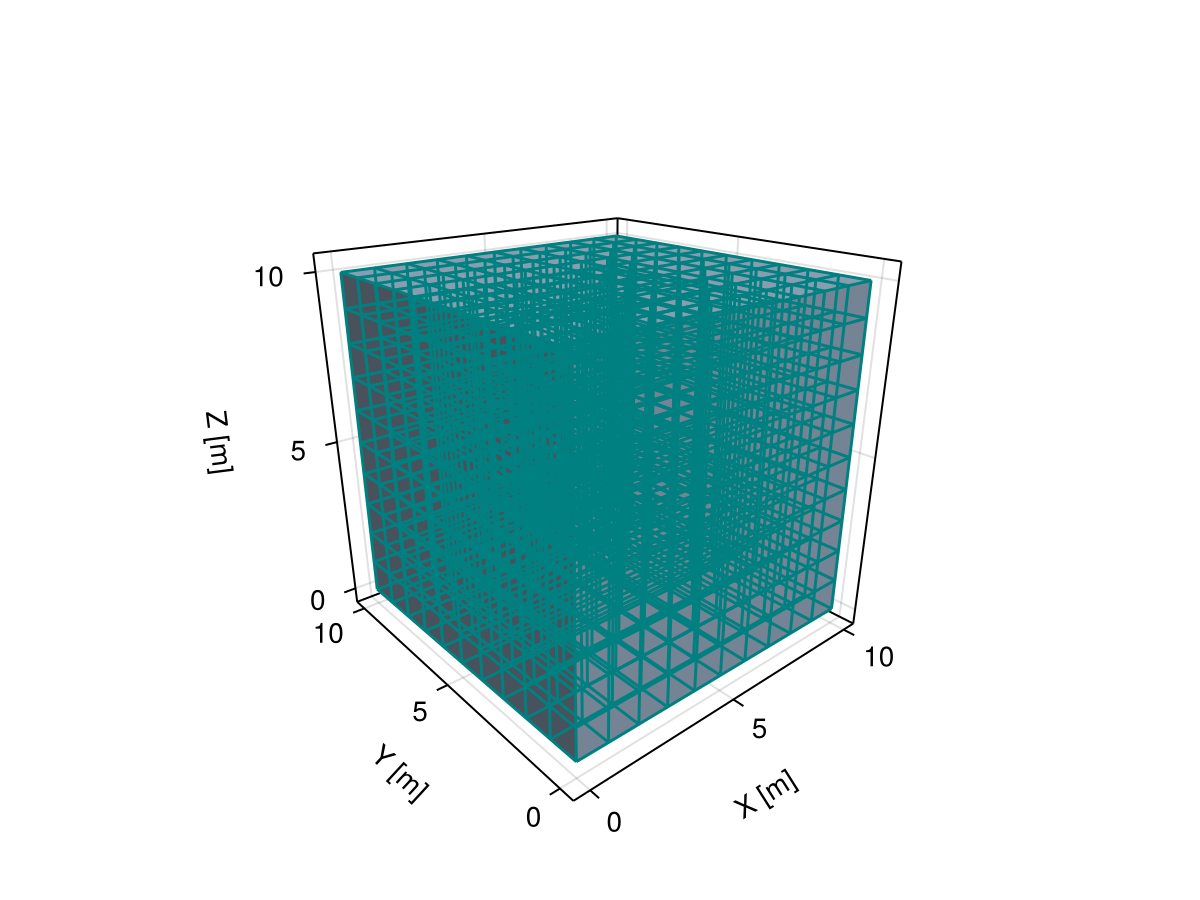

grid = CartesianGrid(10, 10, 10)

viz(grid, showsegments = true, segmentcolor = :teal)
