Calculus

Calculus with geometries is possible thanks to careful parametrizations and high-level interfaces such as DifferentiationInterface.jl and IntegrationInterface.jl.

Consider the following quadrangle for illustration purposes:

q = Quadrangle((0, 0, 0), (2, 0, 0), (2, 1, 0), (0, 1, 0))

Quadrangle
├─ Point(x: 0.0 m, y: 0.0 m, z: 0.0 m)
├─ Point(x: 2.0 m, y: 0.0 m, z: 0.0 m)
├─ Point(x: 2.0 m, y: 1.0 m, z: 0.0 m)
└─ Point(x: 0.0 m, y: 1.0 m, z: 0.0 m)

Differentiation

Meshes.derivative — Function

derivative(geom, uvw, j; dbackend)

Calculate the derivative of the geometry's parametric function at parametric coordinates uvw and along j-th coordinate using a differentiation dbackend from DifferentiationInterface.jl. By default, performs automatic differentation with ForwardDiff.jl.

source

# derivative at center point along first axis
derivative(q, (0.5, 0.5), 1)

Vec(2.0 m, 0.0 m, 0.0 m)

Meshes.jacobian — Function

jacobian(geom, uvw; dbackend)

Calculate the Jacobian of the geometry's parametric function at parametric coordinates uvw using a differentiation dbackend from DifferentiationInterface.jl. Returns a tuple of vectors, each corresponding to the derivative along a parametric coordinate. By default, performs automatic differentation with ForwardDiff.jl.

source

# Jacobian at center (i.e., derivative along both axes)
jacobian(q, (0.5, 0.5))

(Vec(2.0 m, 0.0 m, 0.0 m), Vec(0.0 m, 1.0 m, 0.0 m))

Meshes.differential — Function

differential(geom, uvw; dbackend)

Calculate the differential element (length, area, volume, etc.) of the geometry at parametric coordinates uvw using a differentiation dbackend from DifferentiationInterface.jl. By default, performs automatic differentation with ForwardDiff.jl.

source

# differential element (i.e., infinitesimal area)
differential(q, (0.5, 0.5))

2.0 m^2

Integration

Meshes.integral — Function

integral(fun, geom; ibackend, dbackend)

Calculate the integral over the geometry of the function that maps Points to values in a linear space using an integration ibackend from IntegrationInterface.jl and a differentiation dbackend from DifferentiationInterface.jl.

integral(fun, dom; ibackend, dbackend)

Alternatively, calculate the integral over the domain (e.g., mesh) by summing the integrals for each constituent geometry.

By default, performs automatic differentation with ForwardDiff.jl and h-adaptive integration with HAdaptiveIntegration.jl for good accuracy across a wide range of geometries.

See also integral.

source

# local integral in terms of parametric coordinates in [0, 1]²
localintegral((u, v) -> u^2 + 3v, q)

3.666666666666666 m^2

All these methods are implemented for curved geometries (e.g., spherical geometry):

# curved quadrangle over the globe
q = Quadrangle(Point(LatLon(0, 0)), Point(LatLon(0, 90)), Point(LatLon(80, 90)), Point(LatLon(80, 0)))

# Jacobian components as rays over the quadrangle
uv = Iterators.product(0:0.1:1, 0:0.1:1)
rs = [Ray.(q(u, v), 0.05 .* jacobian(q, (u, v))) for (u, v) in uv]

# split rays into u and v components
rᵤ = first.(rs) |> vec
rᵥ = last.(rs) |> vec

viz(q, color="teal")
viz!(rᵤ, color="gray80")
viz!(rᵥ, color="gray80")

# Bezier curve over the globe
c = BezierCurve(Point(LatLon(0, 0)), Point(LatLon(40, 90)), Point(LatLon(80, 0)))

# Jacobian components as rays over the curve
ts = 0:0.1:1
rs = [Ray.(c(t), 0.05 .* jacobian(c, (t,))) for t in ts]

# extract t component
rₜ = first.(rs) |> vec

viz!(c, color="yellow", segmentsize=4)
viz!(rₜ, color="magenta")

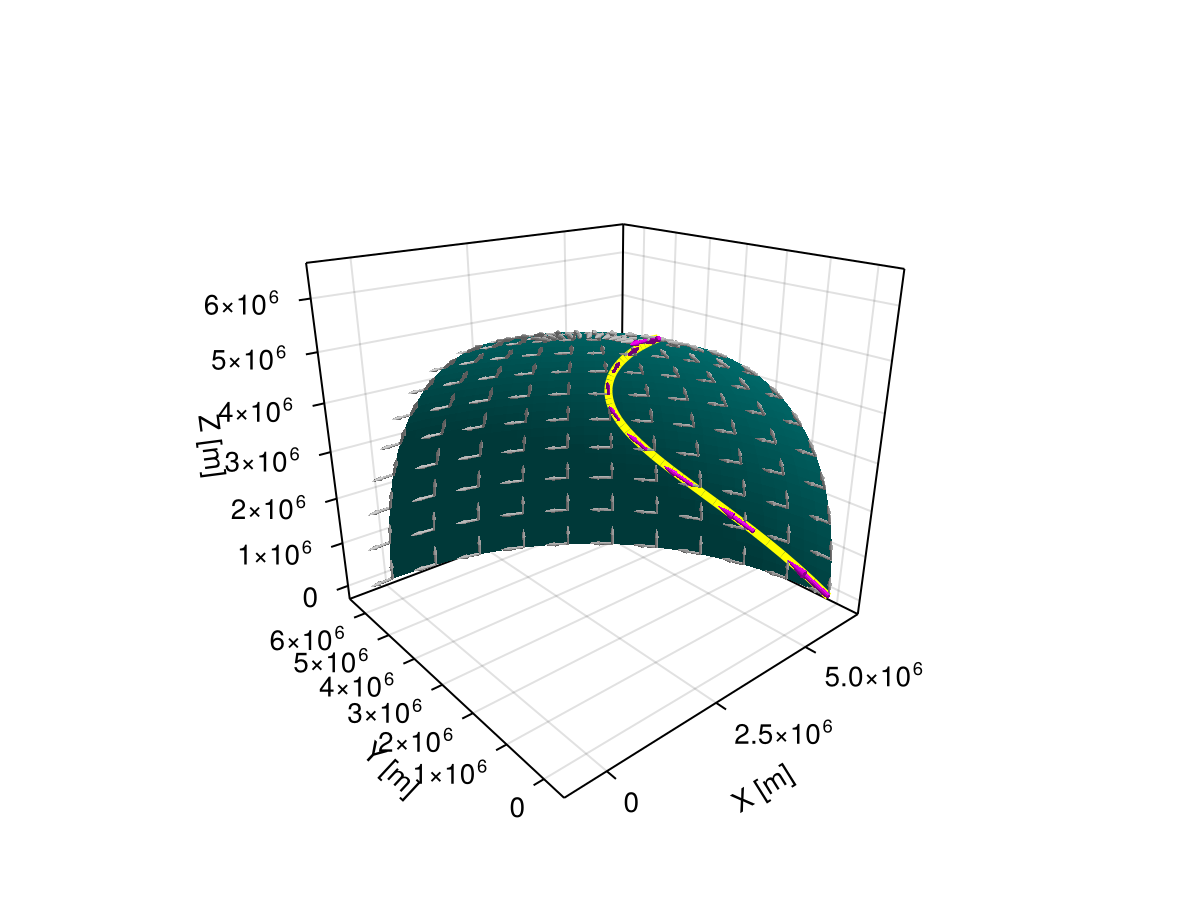

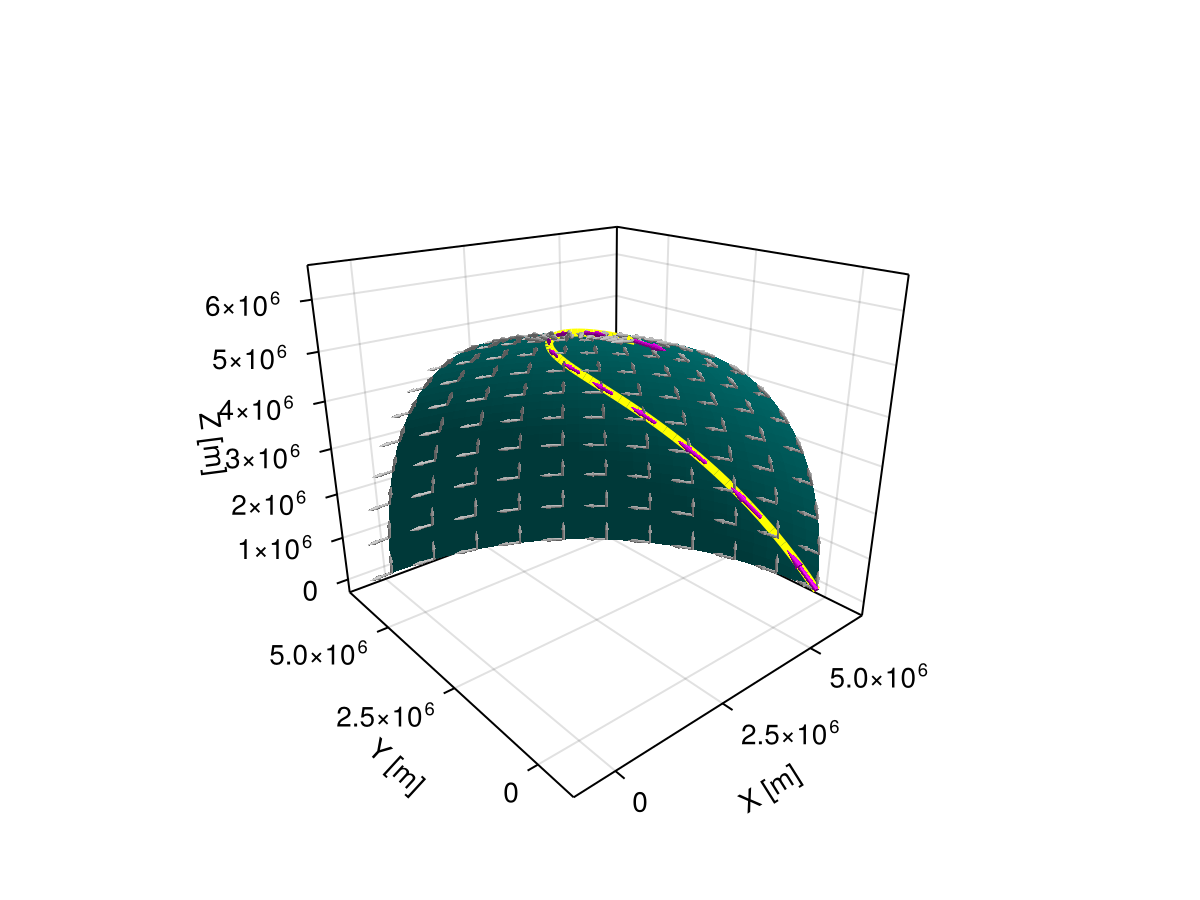

Mke.current_figure()
