Tesselation
Meshes.tesselate — Functiontesselate(pointset, [method])Tesselate pointset with tesselation method.
If the method is ommitted, a default algorithm is used.
Meshes.TesselationMethod — TypeDiscretizationMethodA method for tesselating point sets into meshes.
DelaunayTesselation
Meshes.DelaunayTesselation — TypeDelaunayTesselation([rng])Unconstrained Delaunay tesselation of point sets. Optionally, specify the random number generator rng.
References
- Cheng et al. 2012. Delaunay Mesh Generation
Notes
Wraps DelaunayTriangulation.jl. For any internal errors, file an issue at DelaunayTriangulation.jl

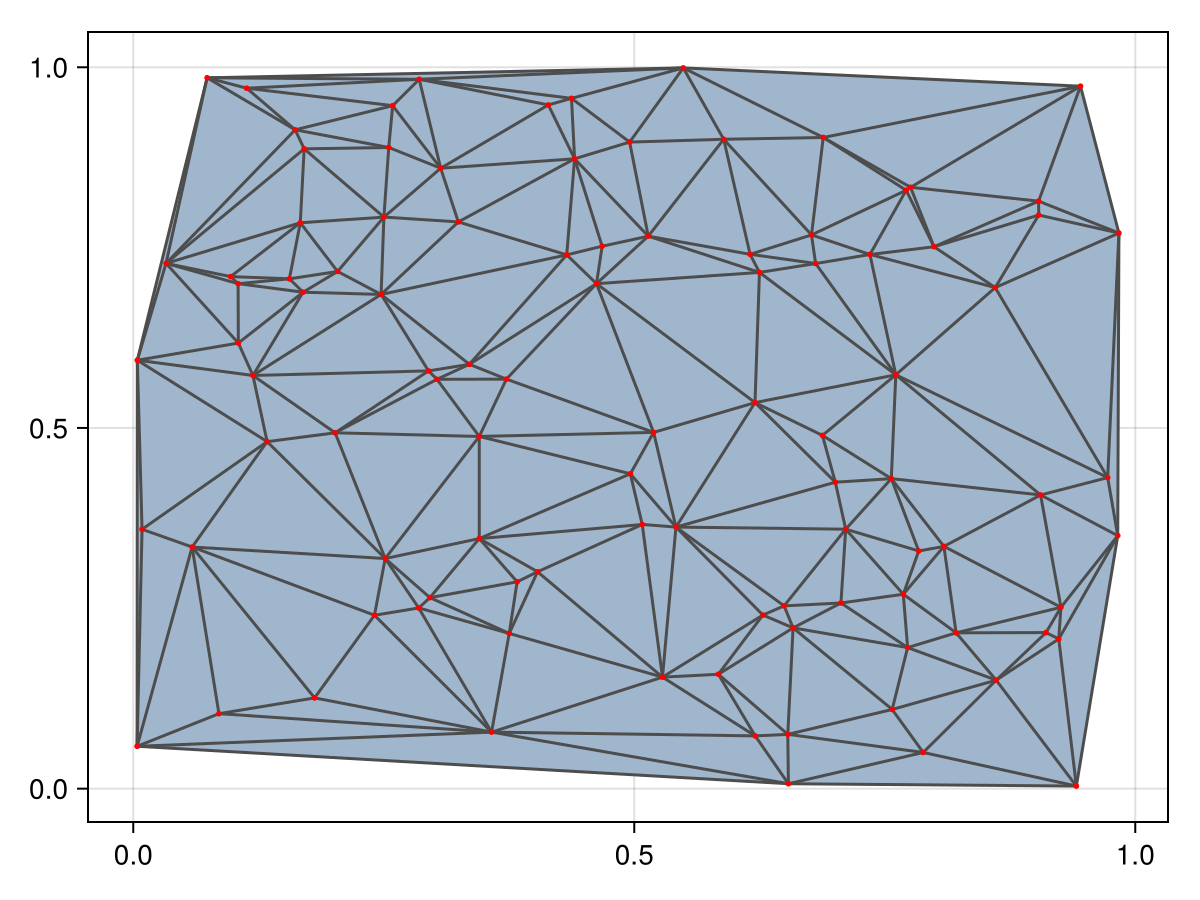

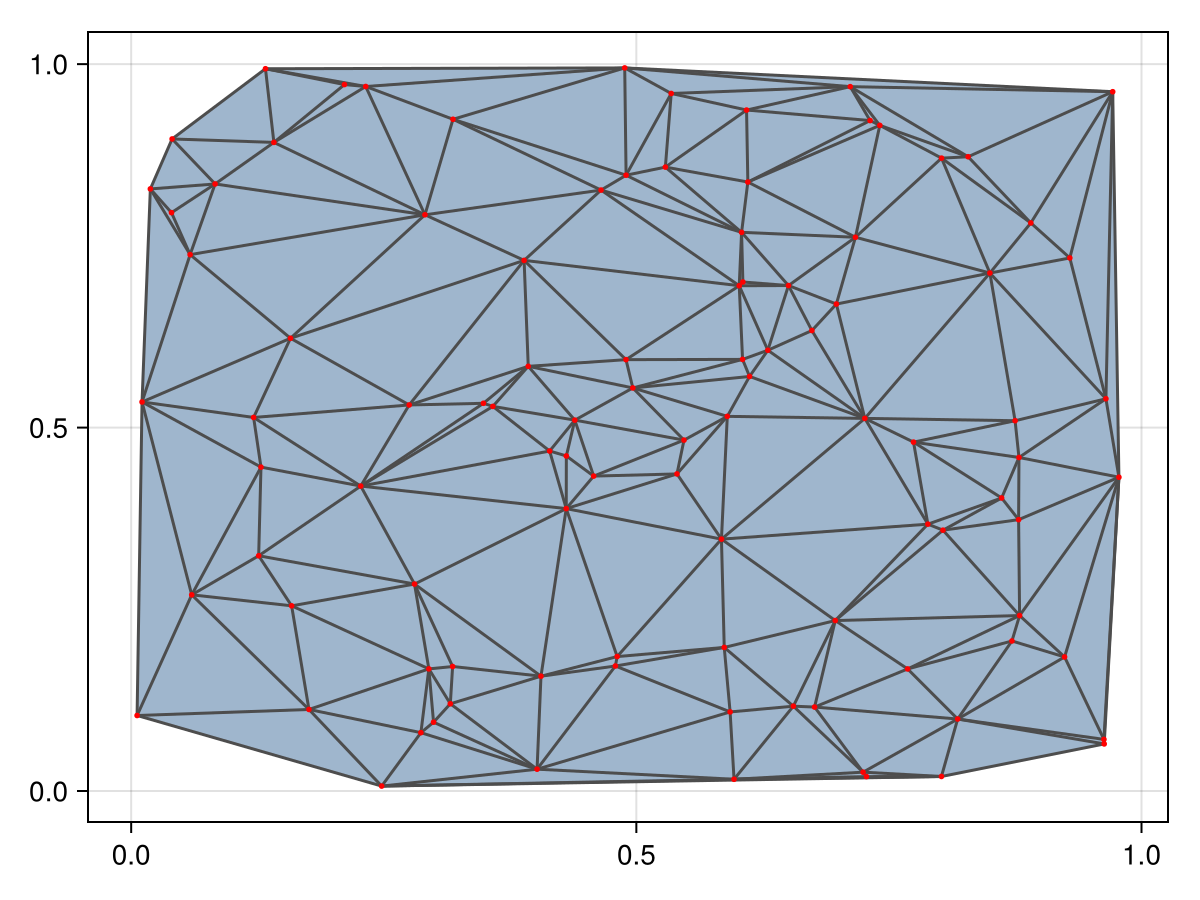

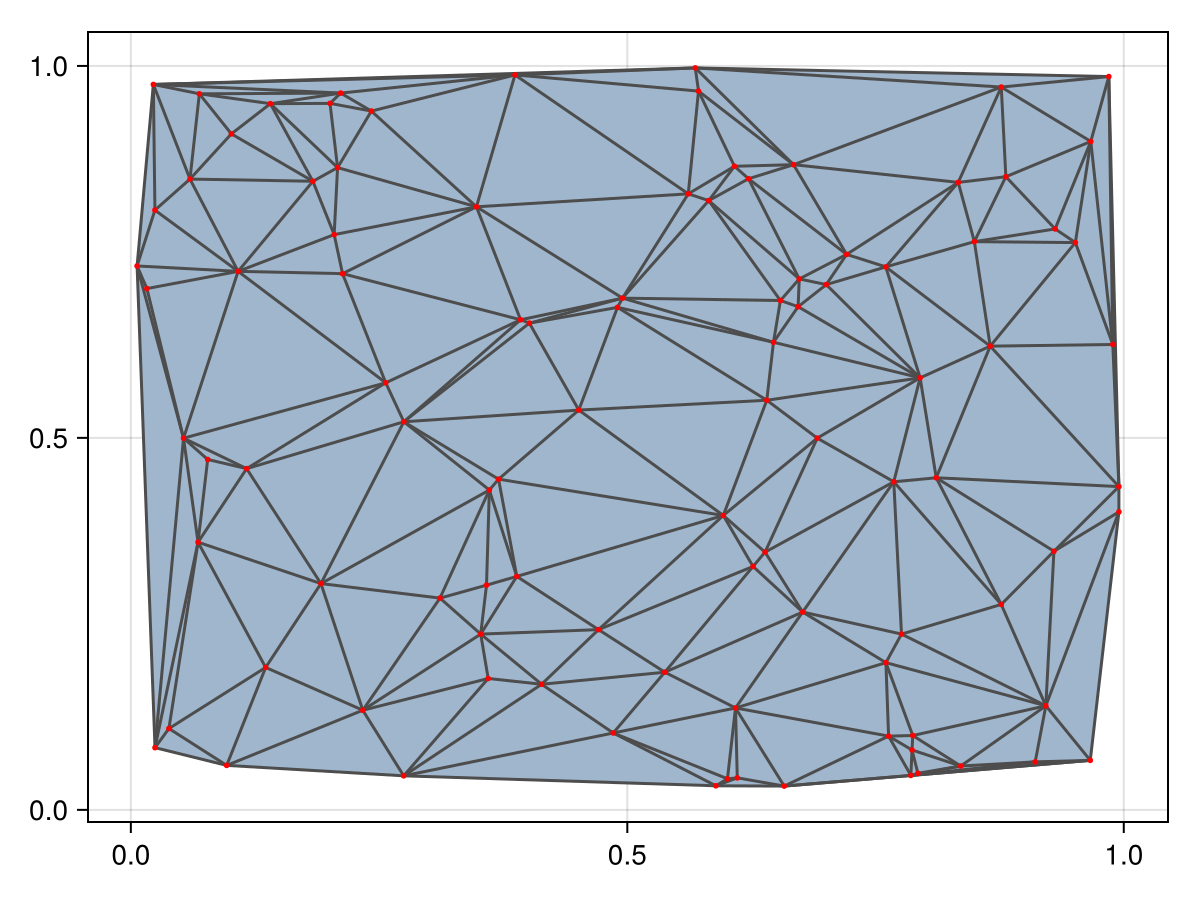

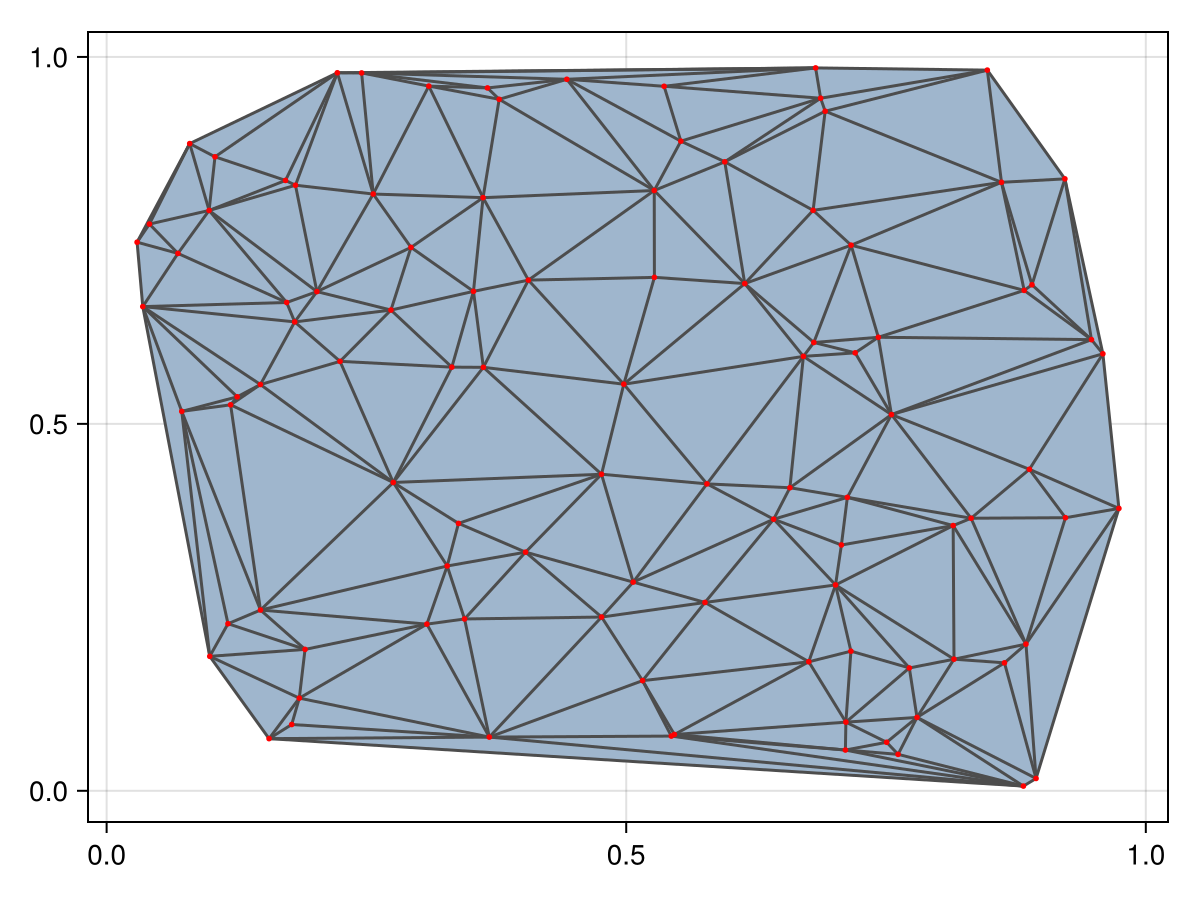

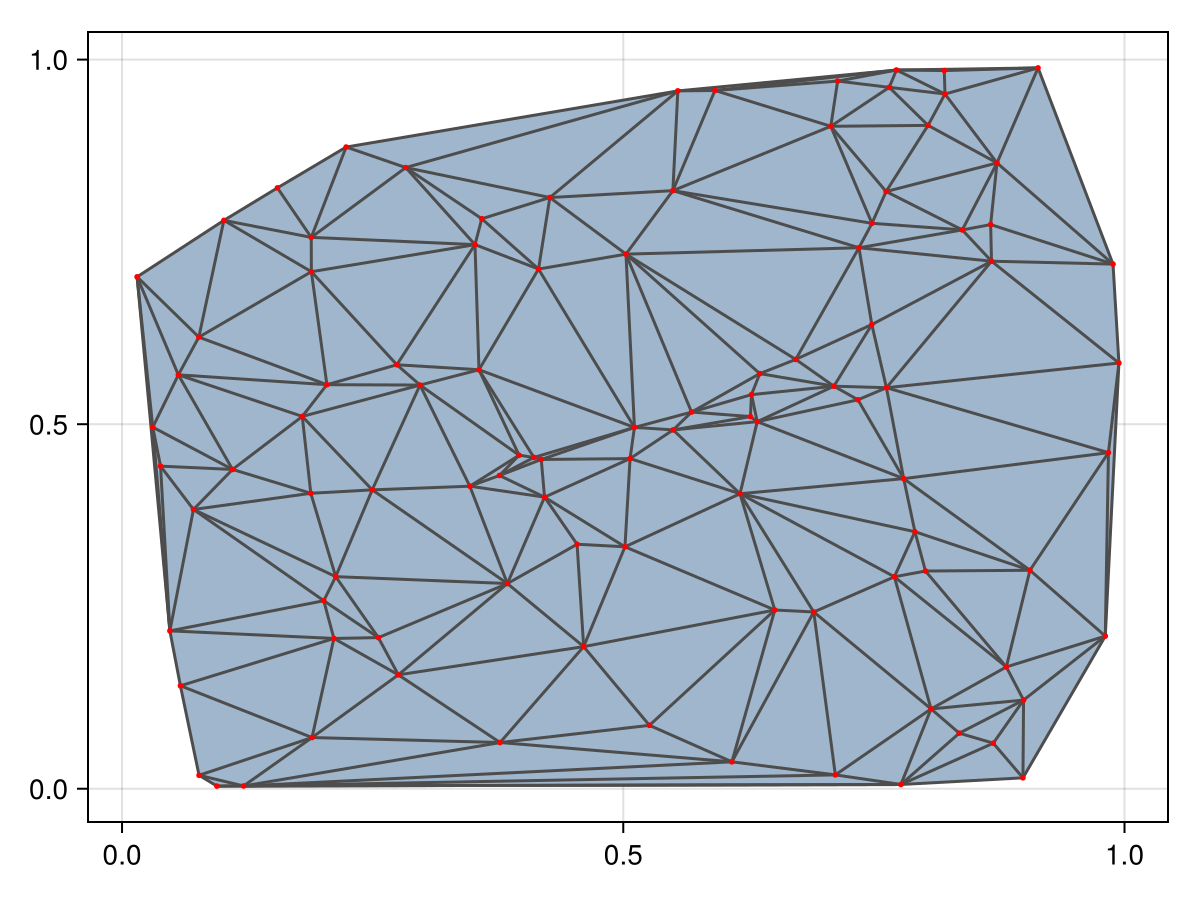

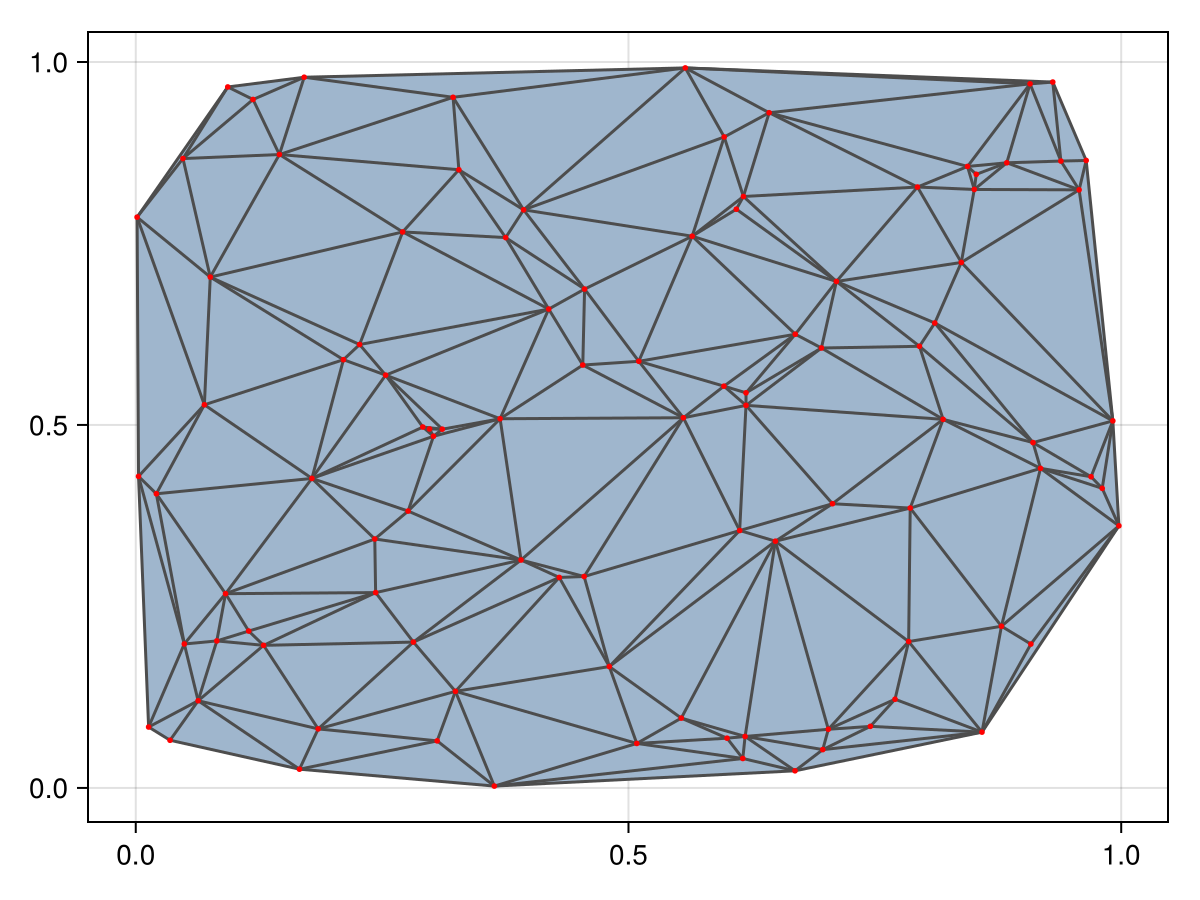

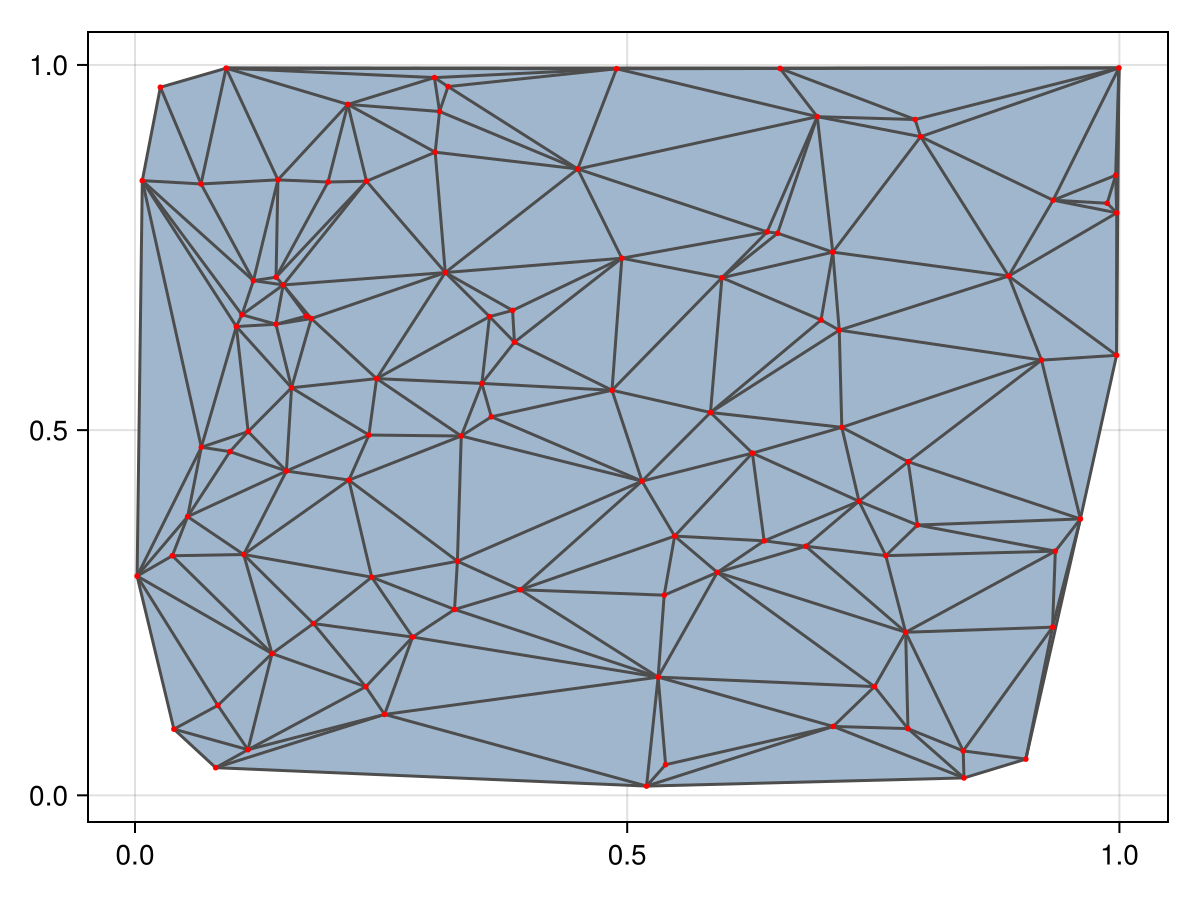

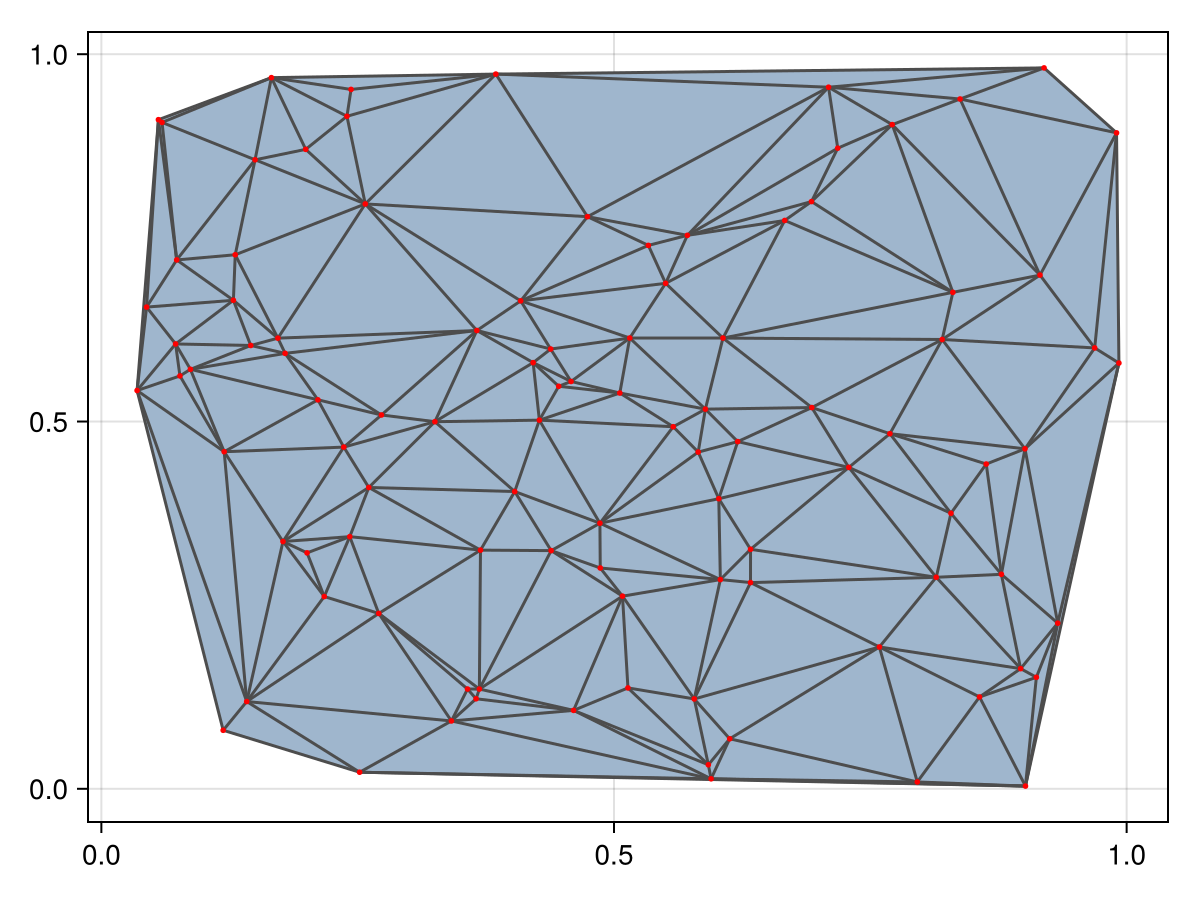

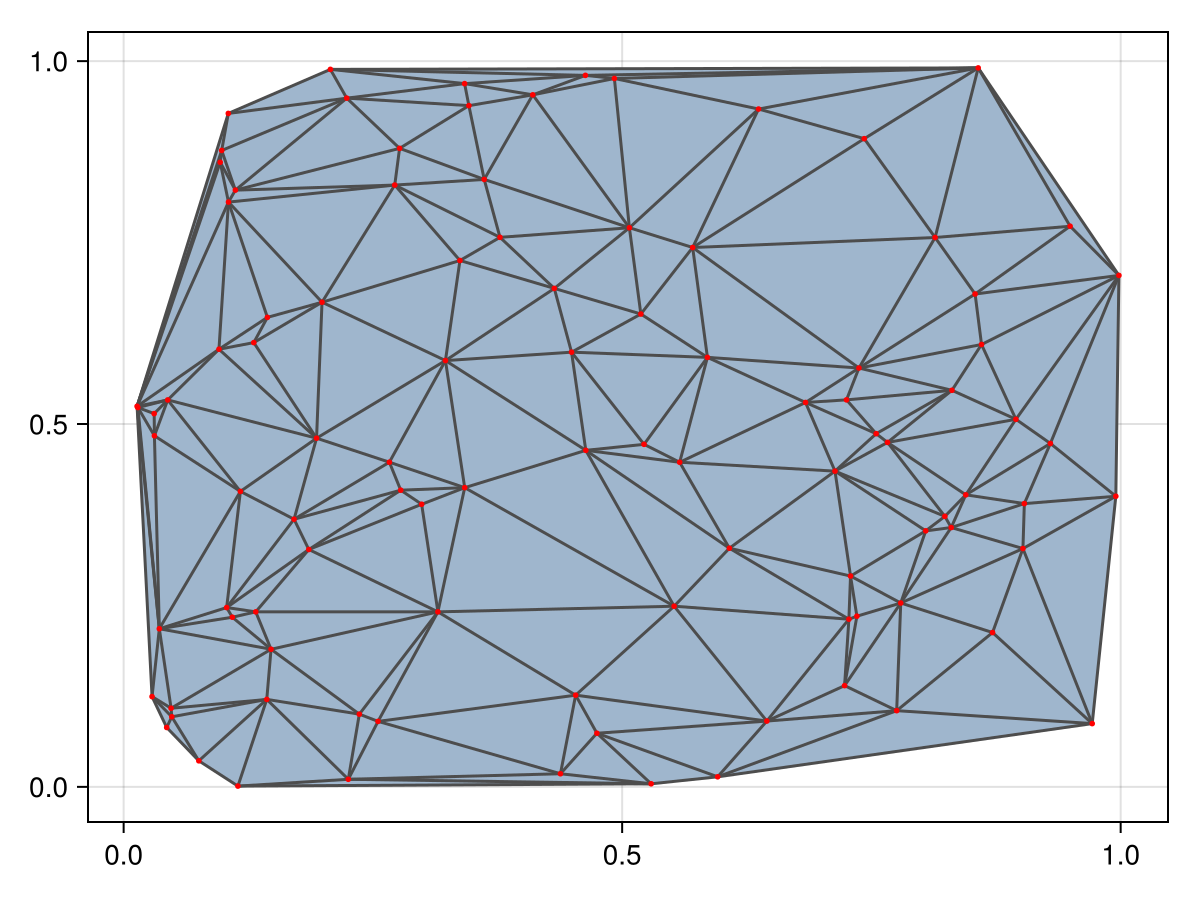

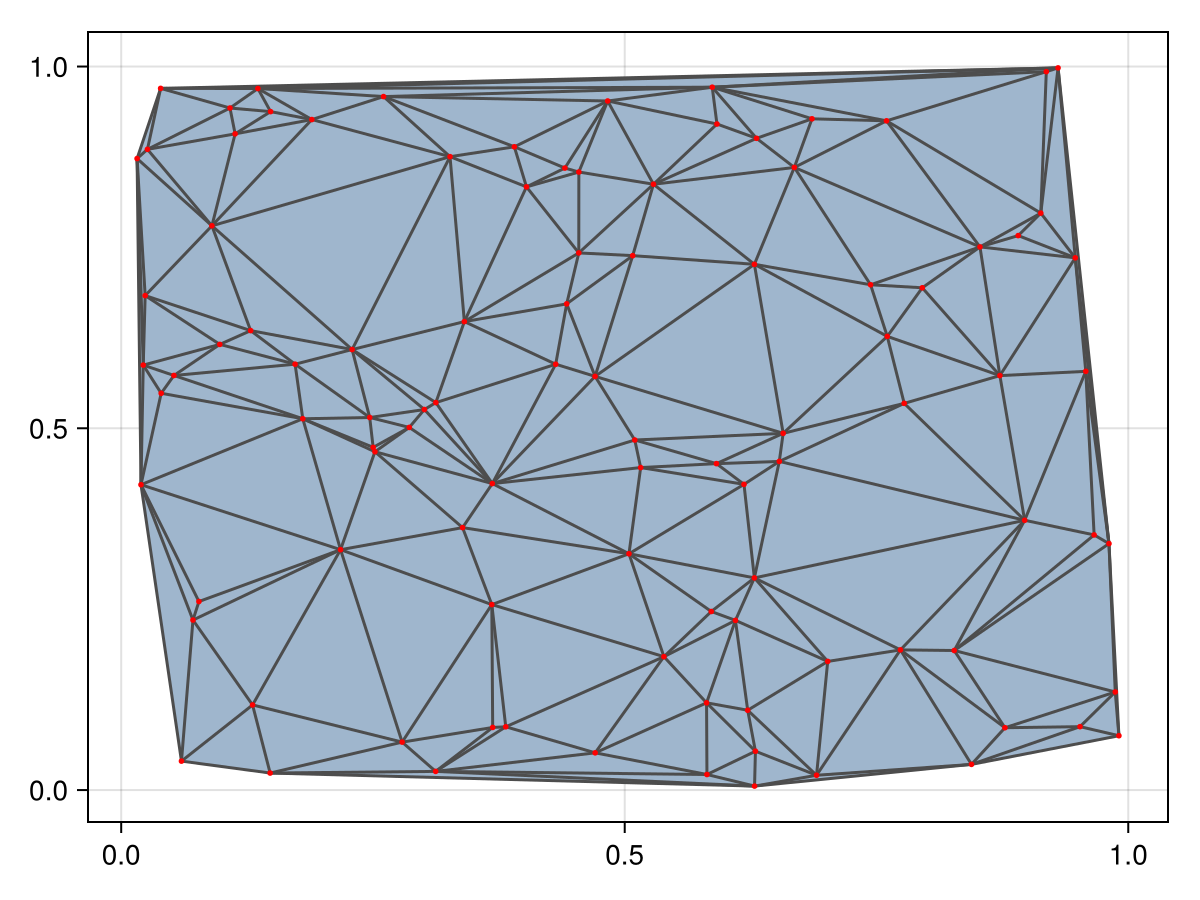

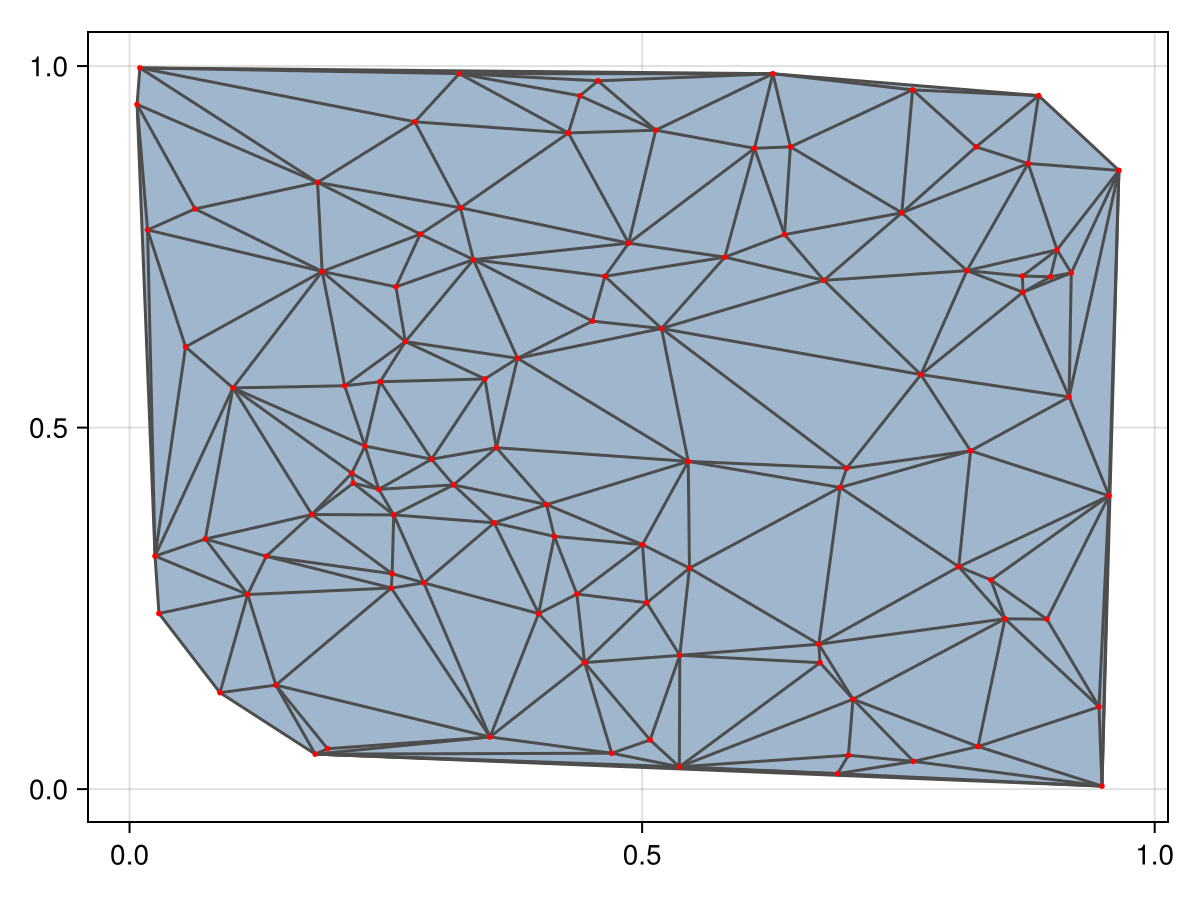

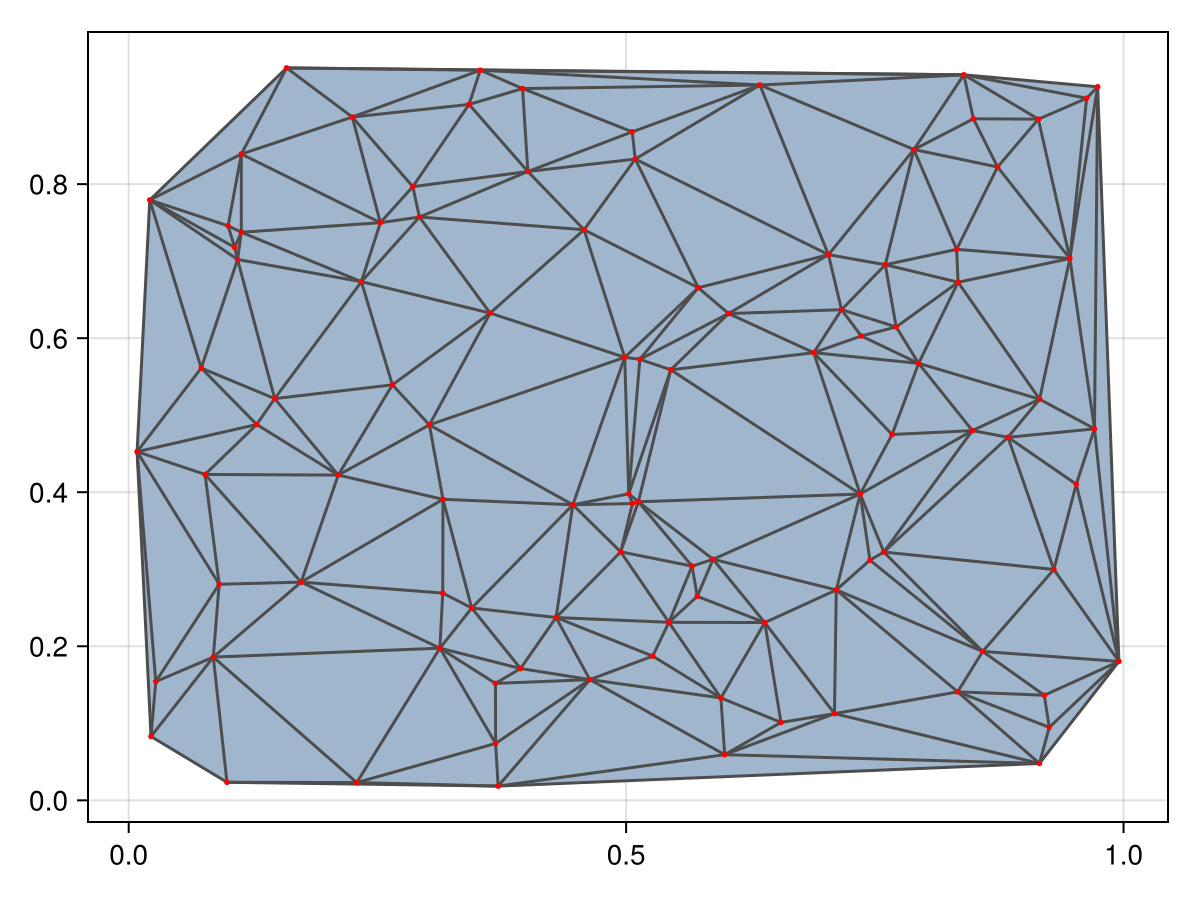

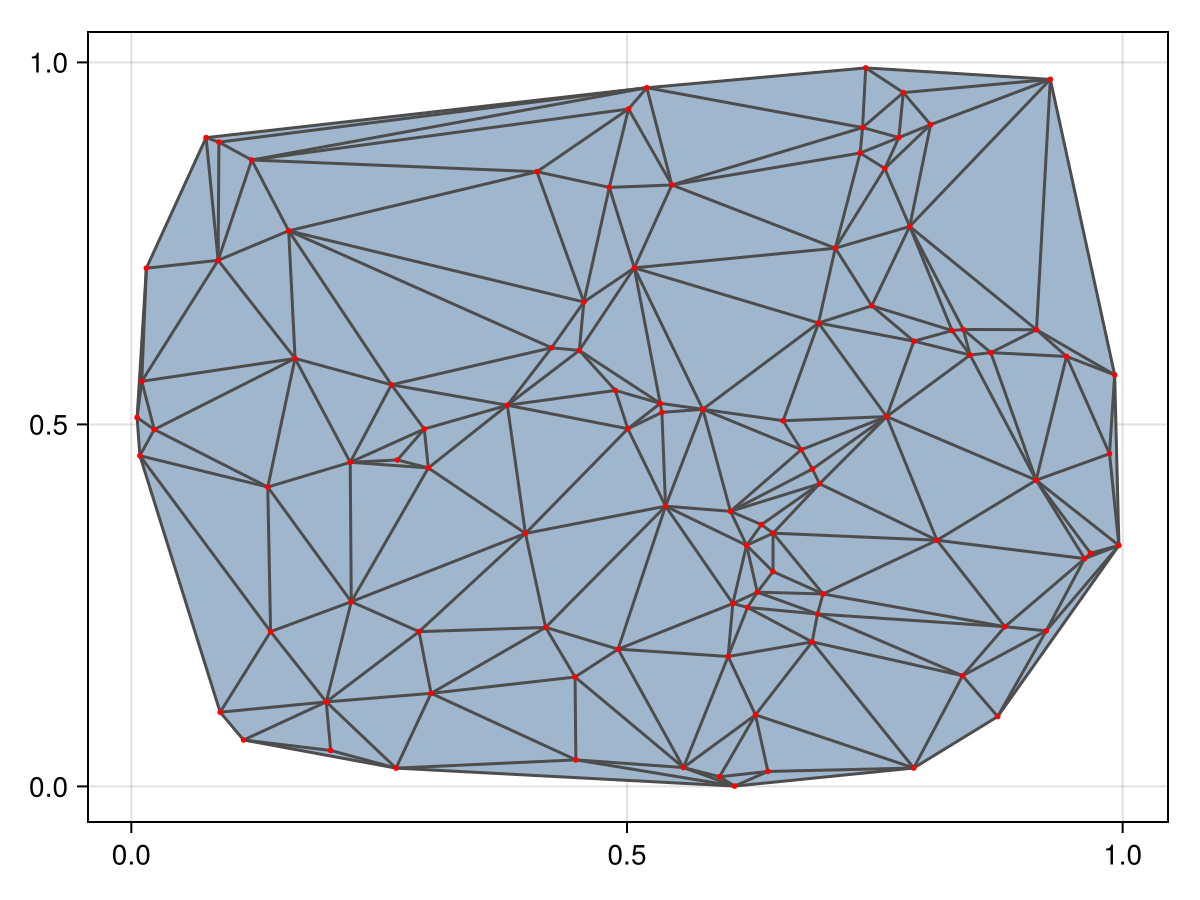

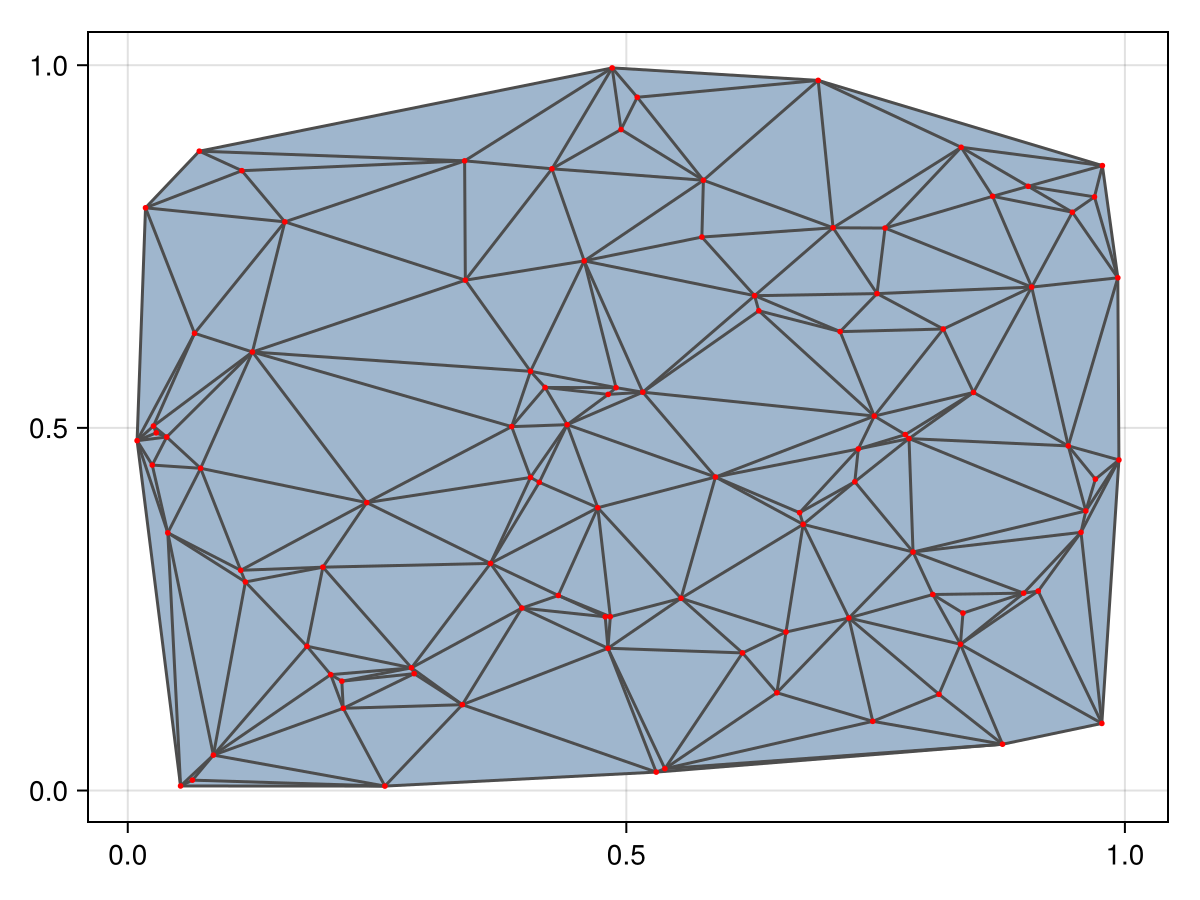

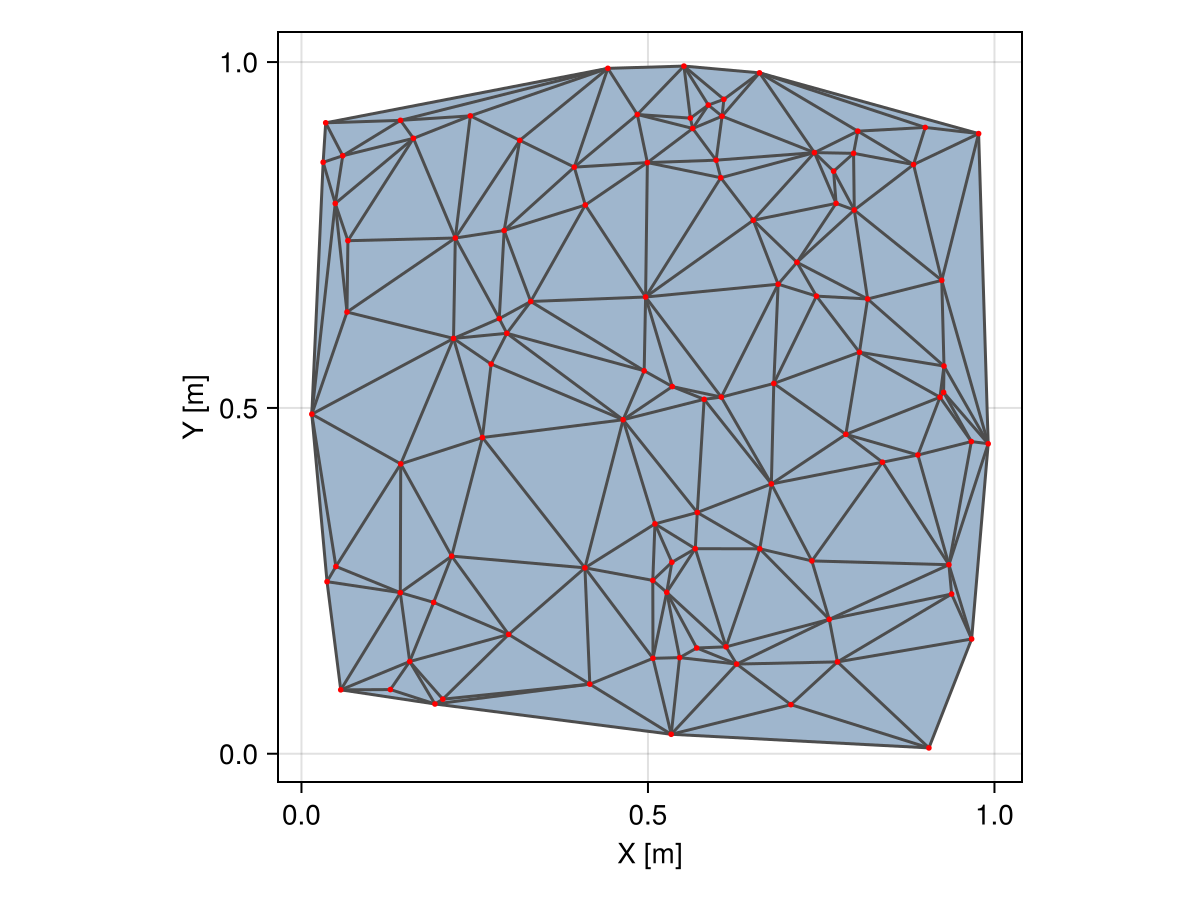

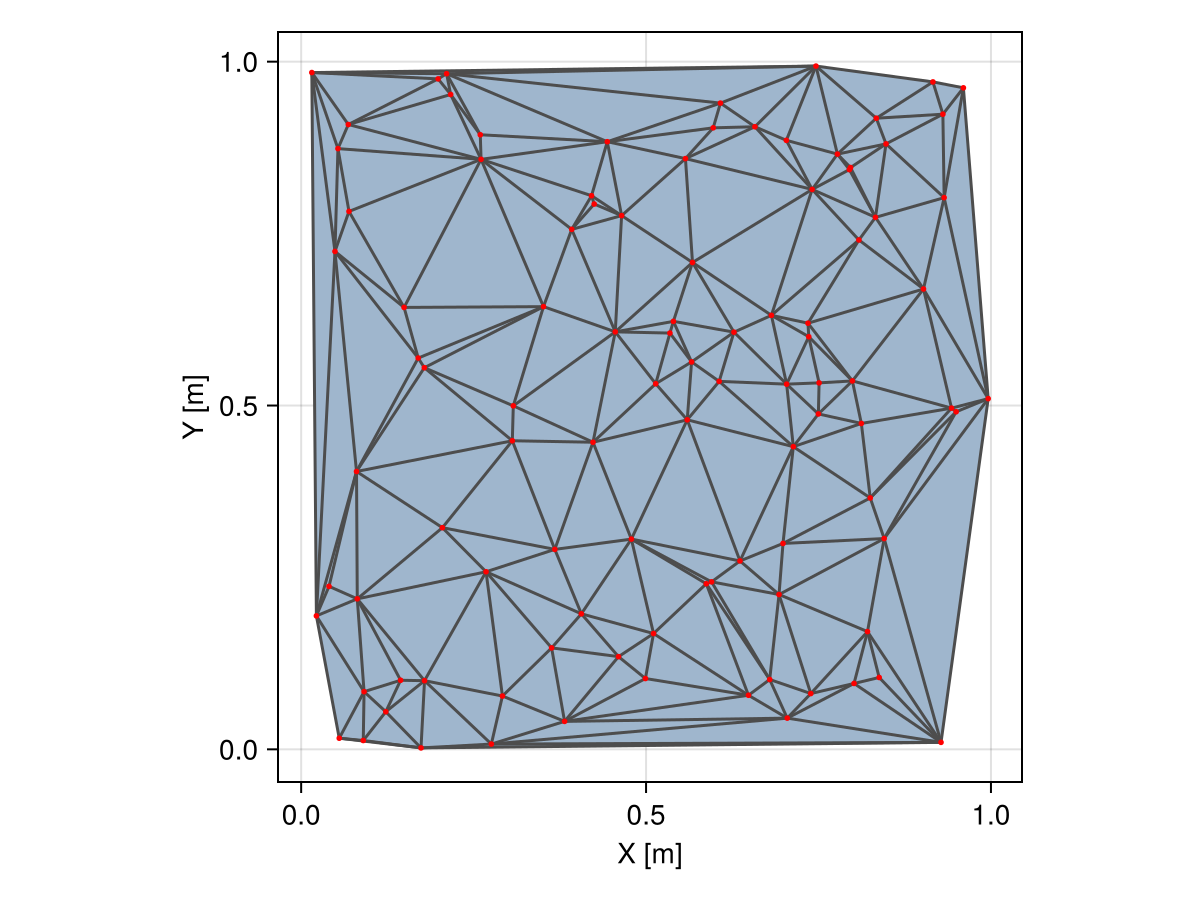

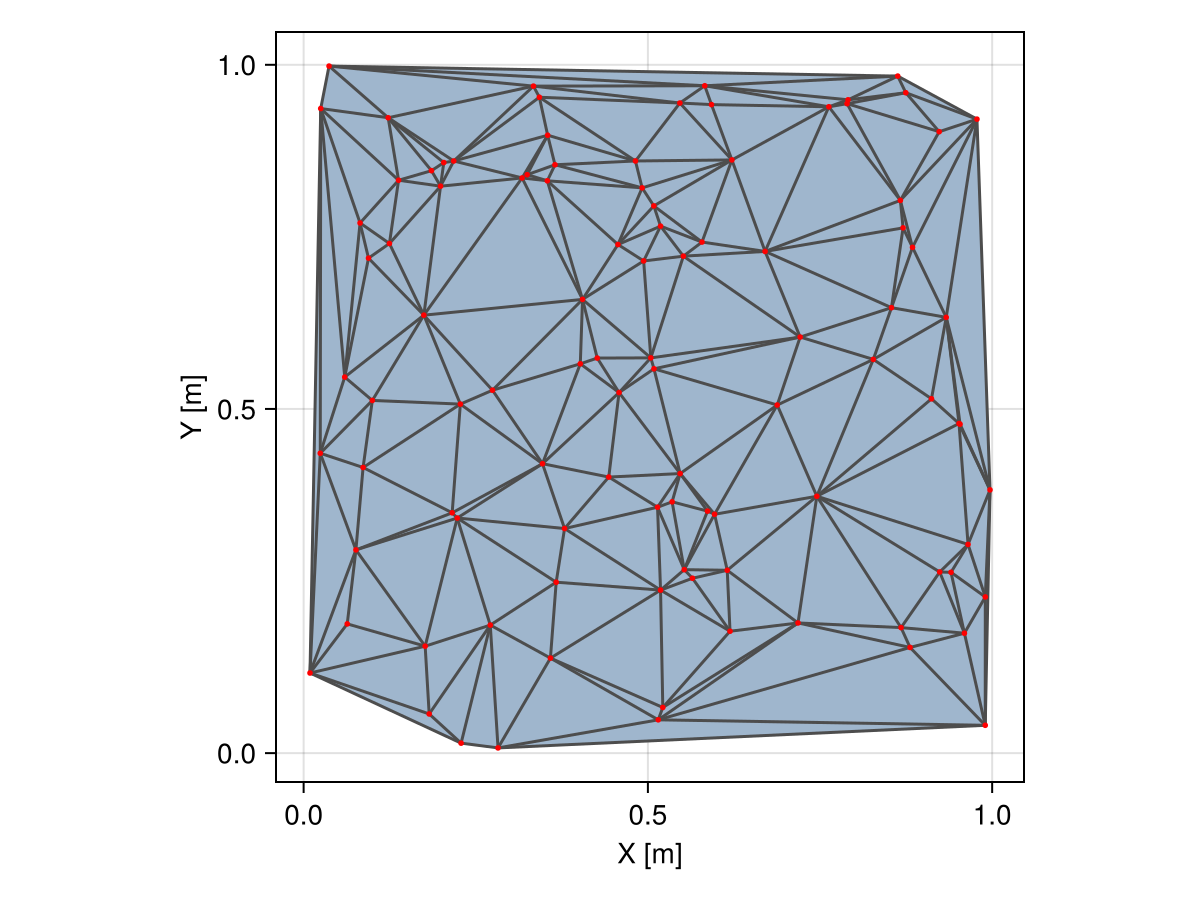

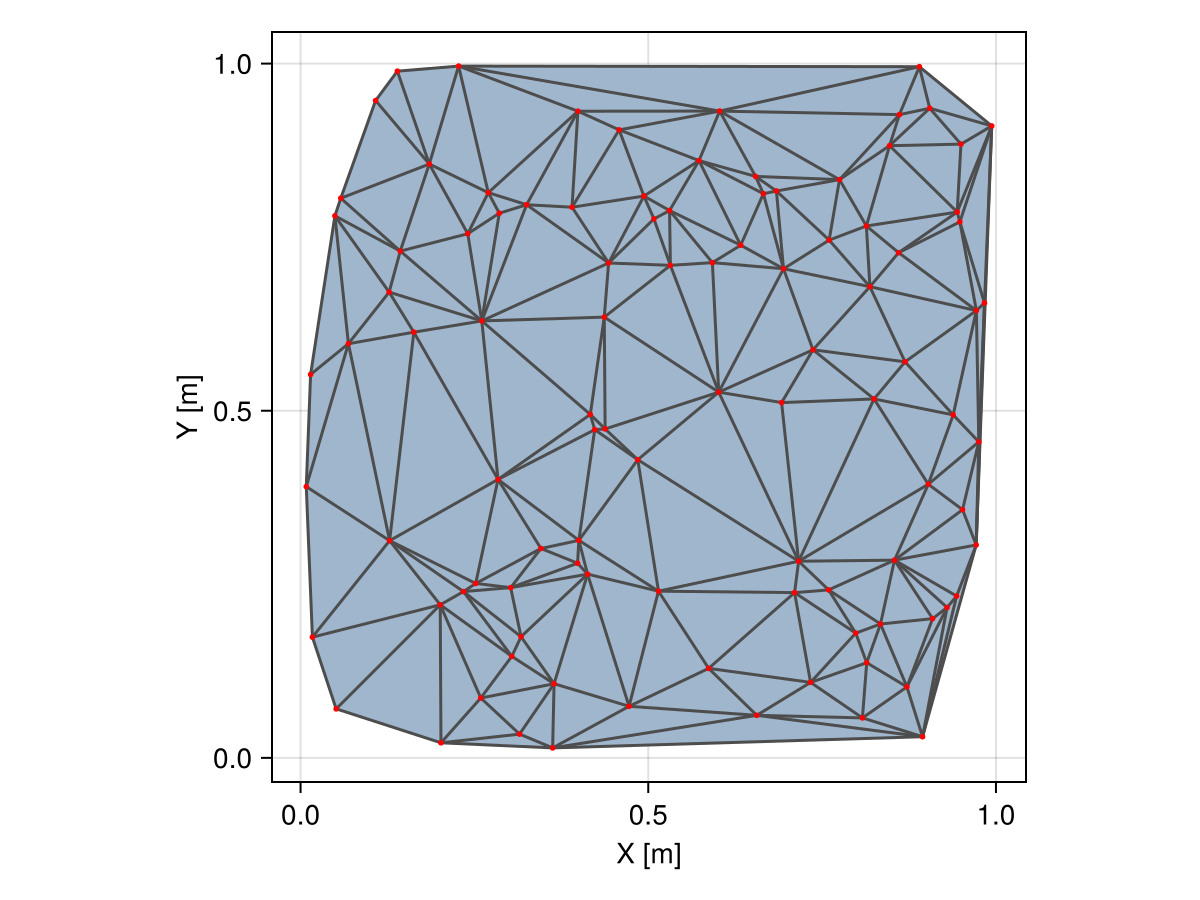

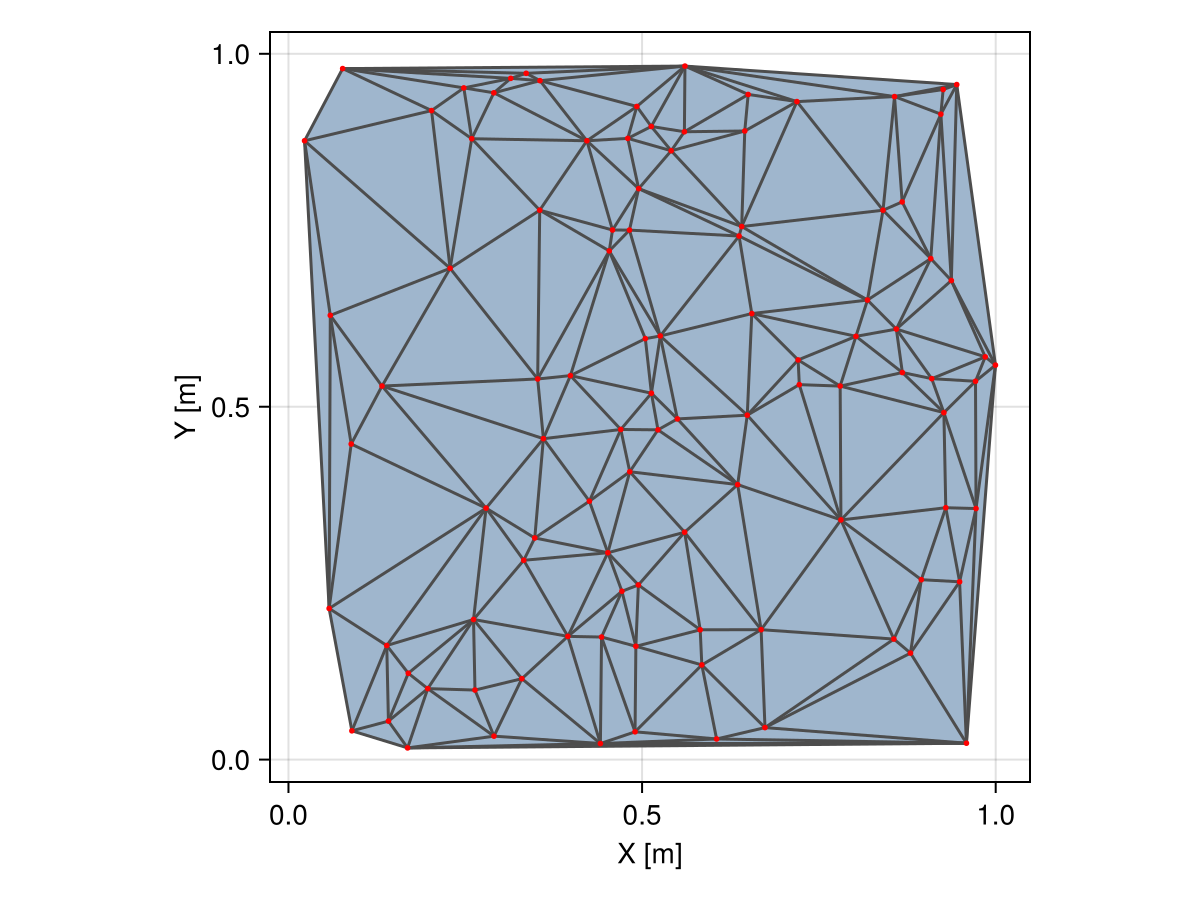

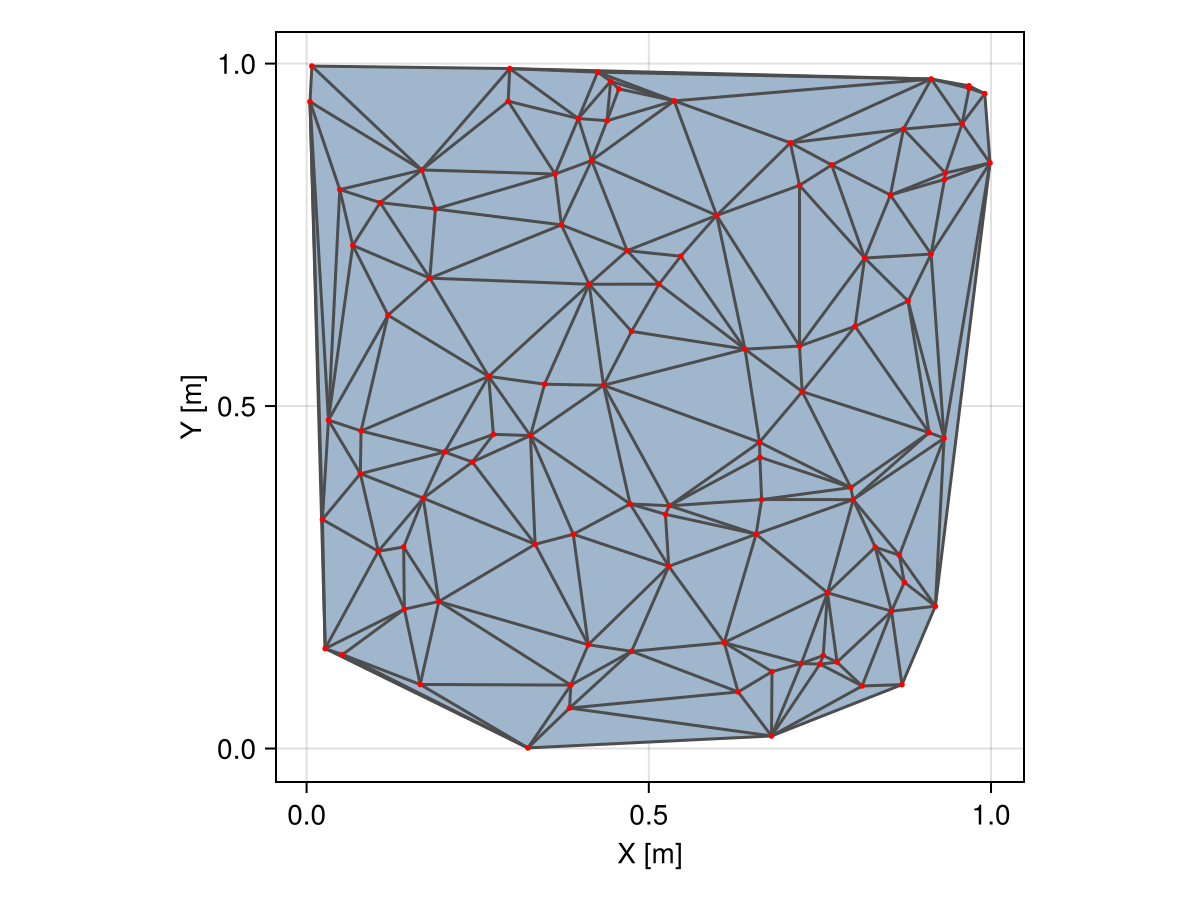

points = rand(Point, 100, crs=Cartesian2D)
mesh = tesselate(points, DelaunayTesselation())
viz(mesh, showsegments = true)
viz!(points, color = :red)
Mke.current_figure()

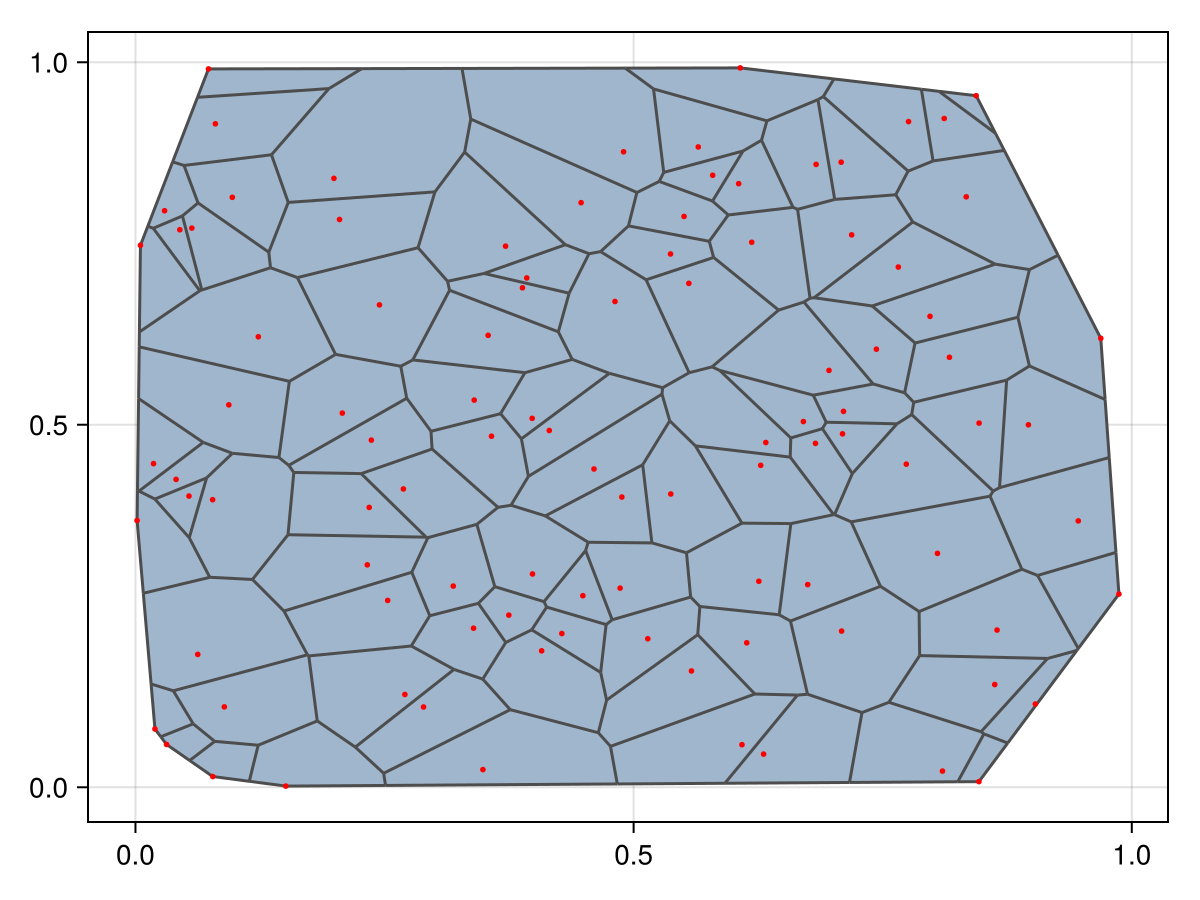

VoronoiTesselation
Meshes.VoronoiTesselation — TypeVoronoiTesselation([rng])Unconstrained Voronoi tesselation of point sets. Optionally, specify the random number generator rng.
References
- Cheng et al. 2012. Delaunay Mesh Generation
Notes
Wraps DelaunayTriangulation.jl. For any internal errors, file an issue at DelaunayTriangulation.jl

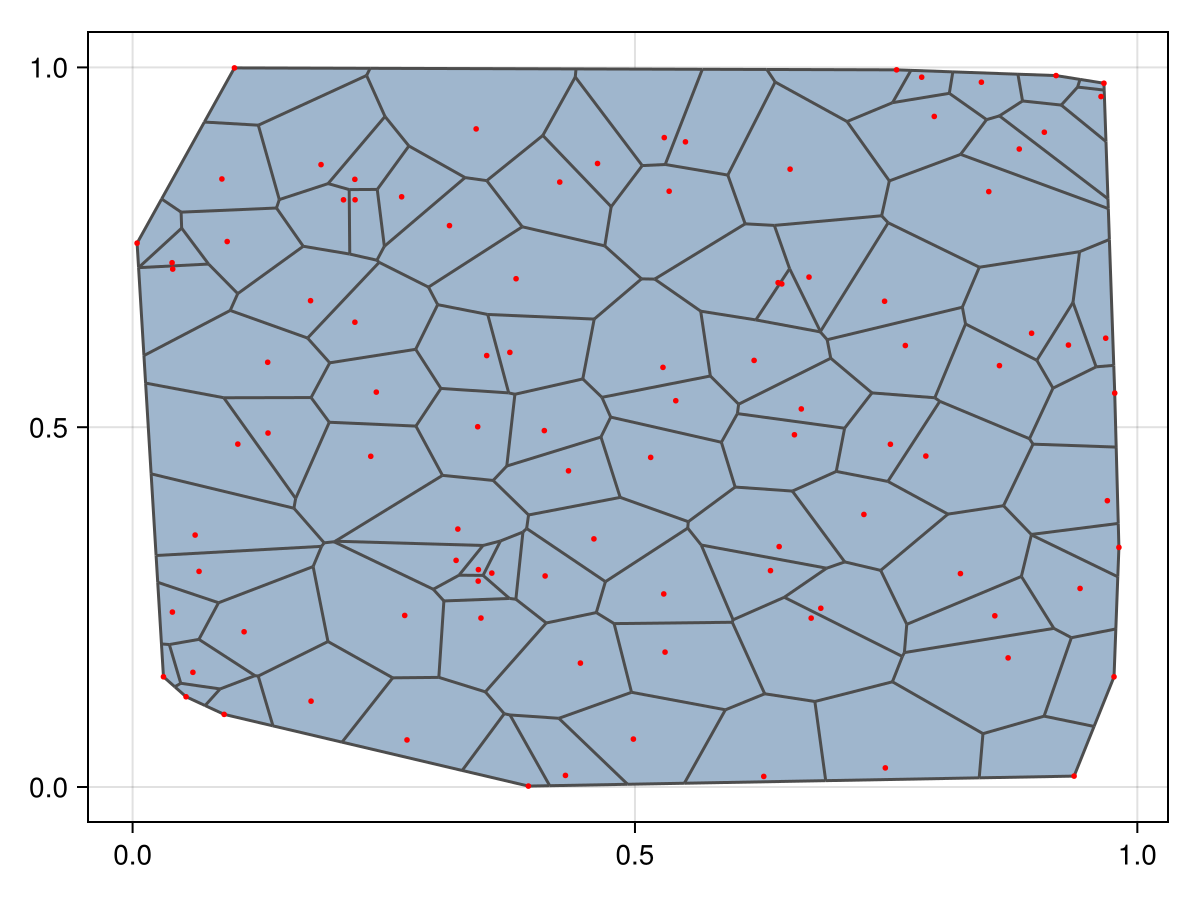

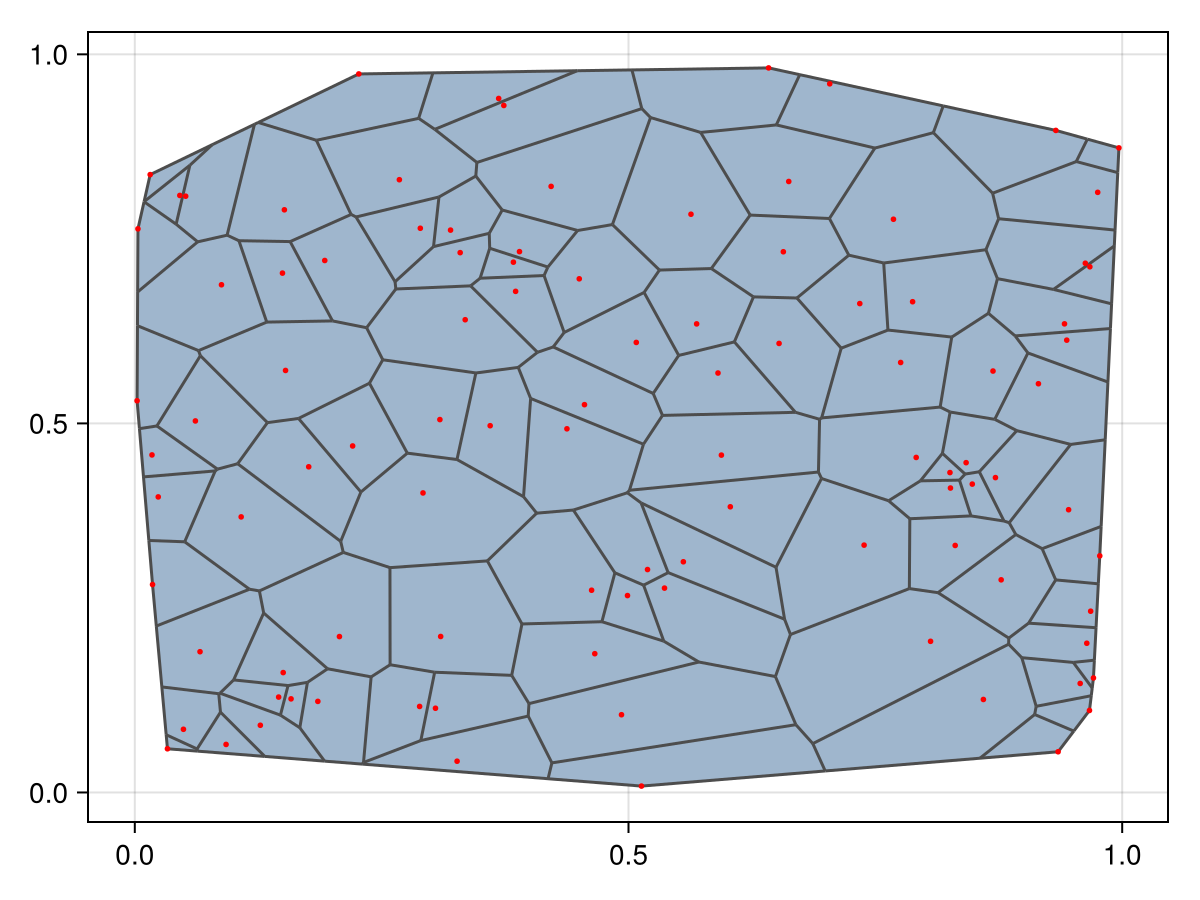

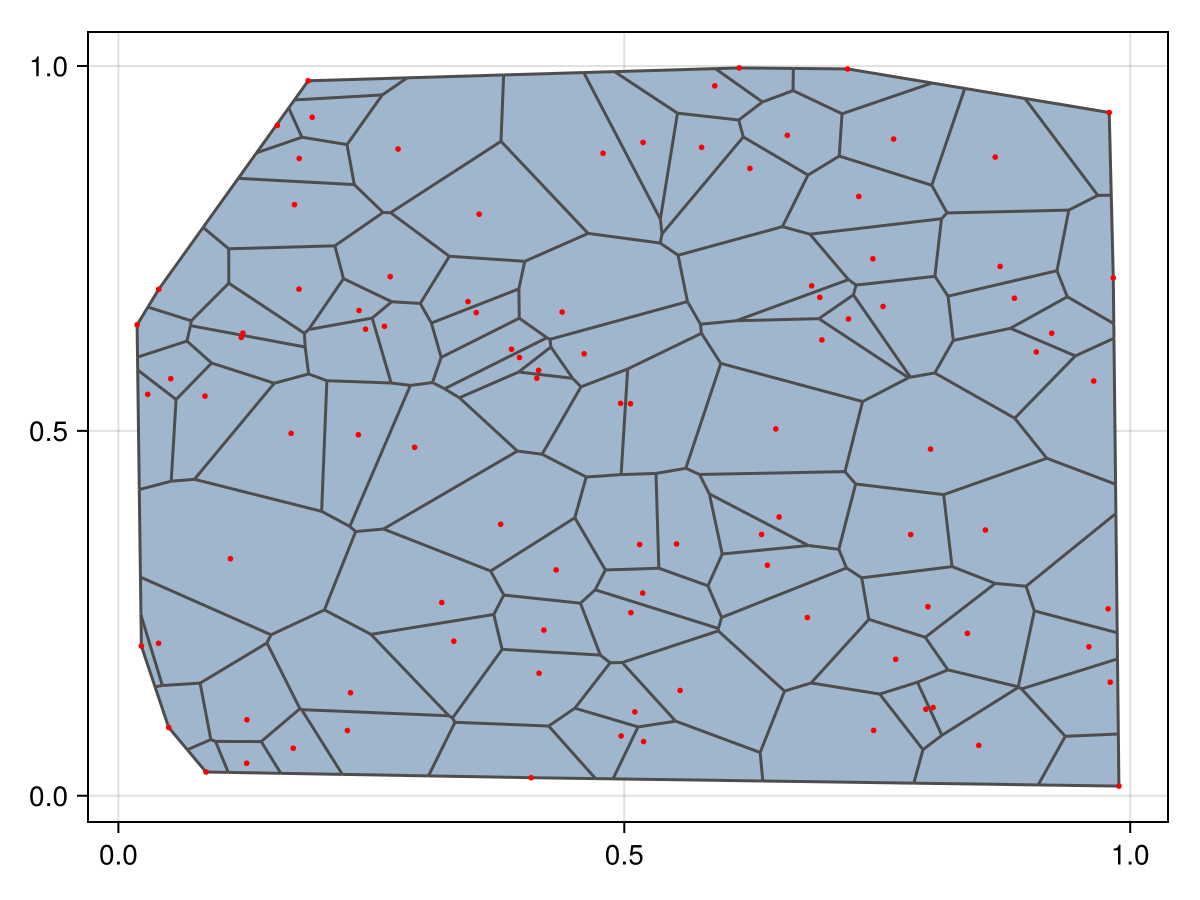

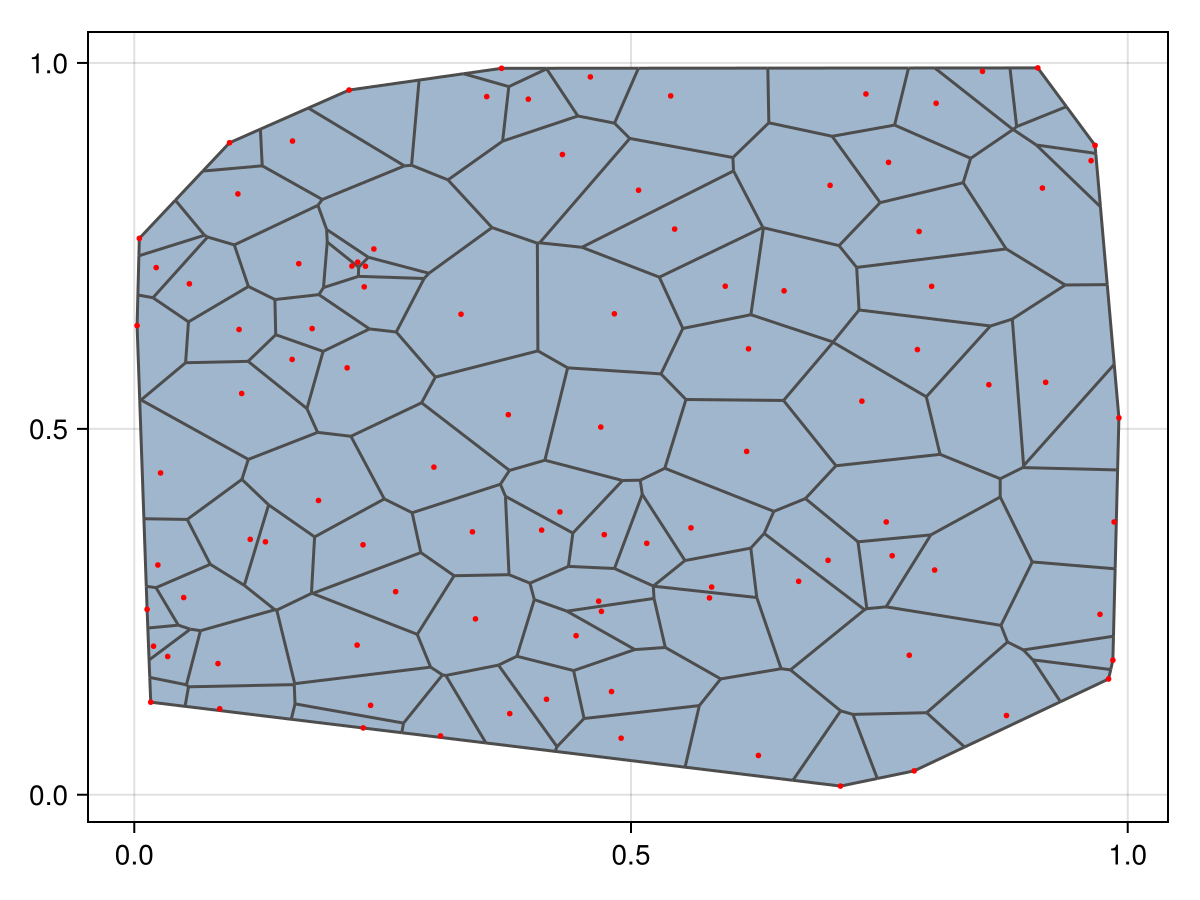

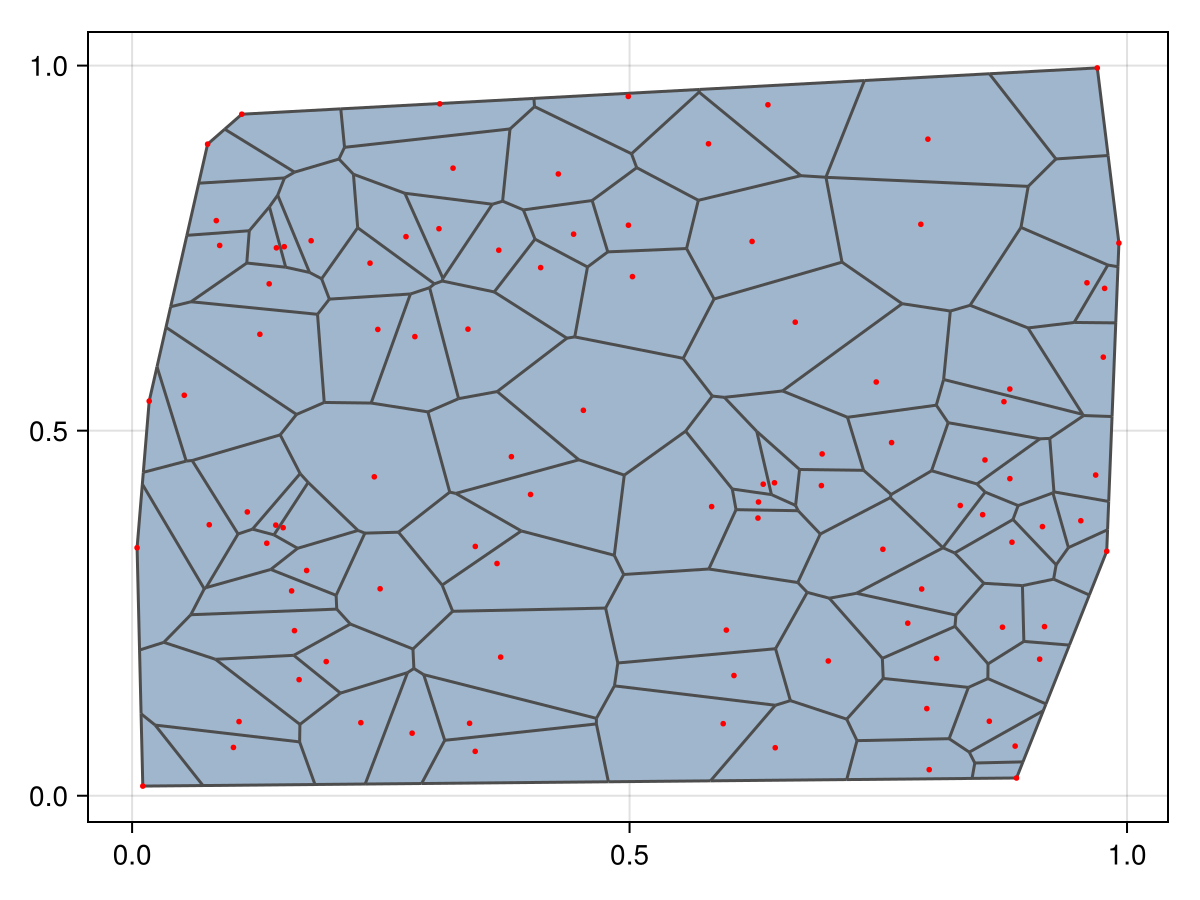

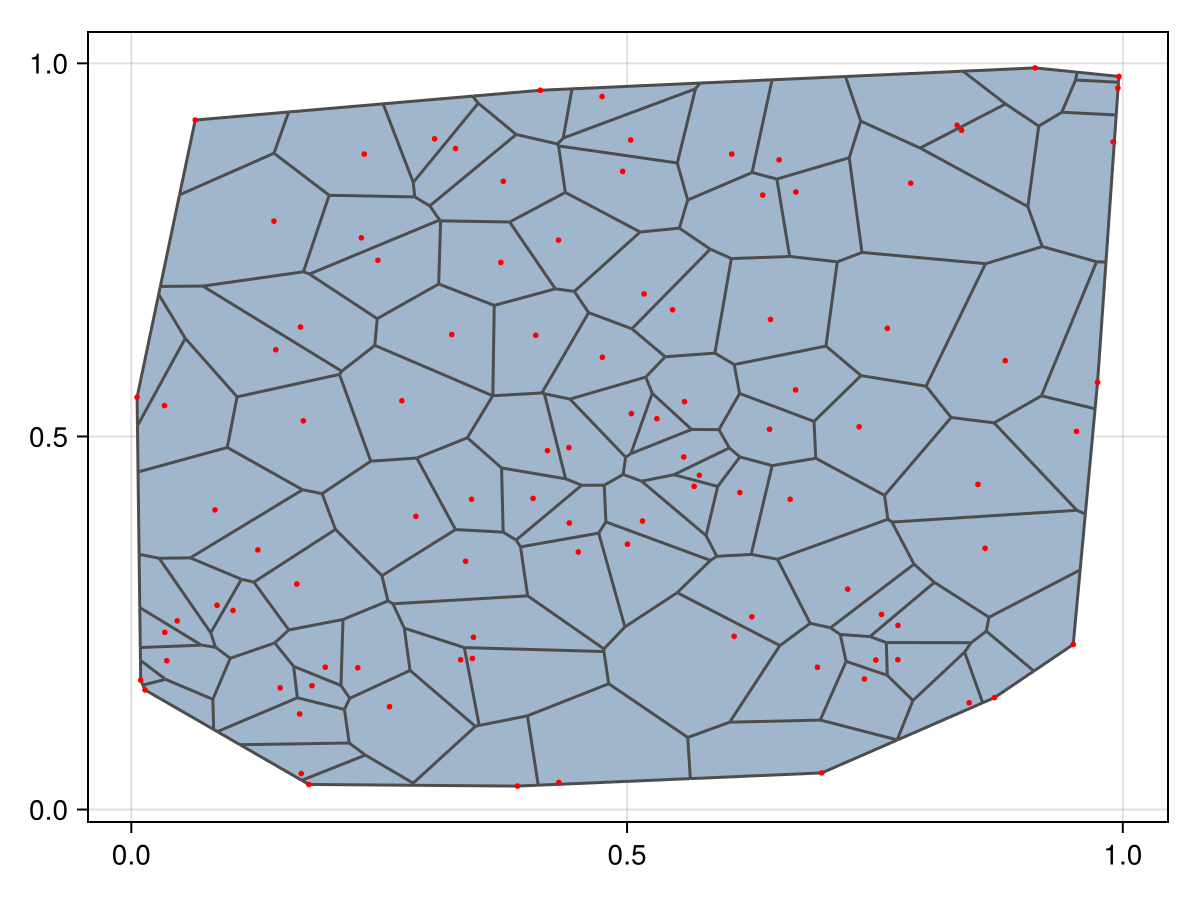

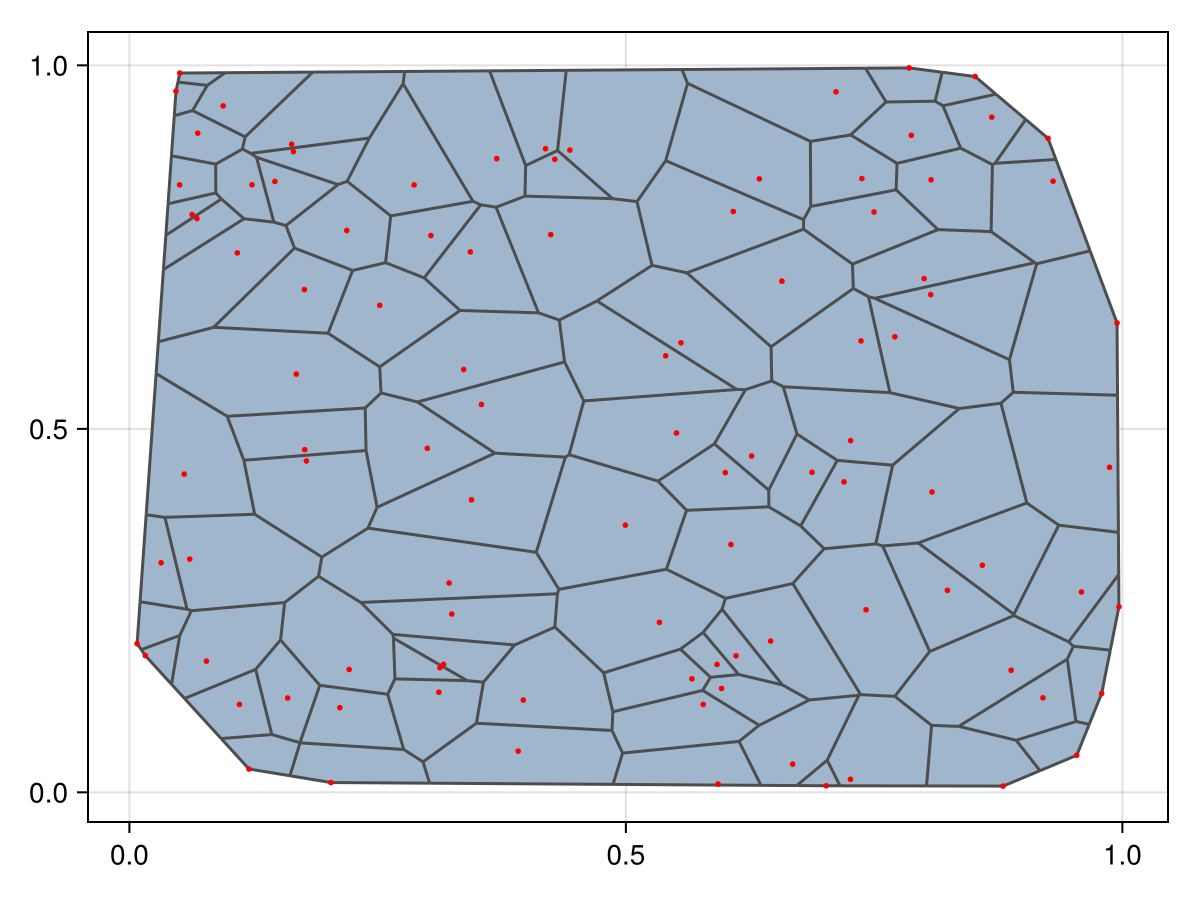

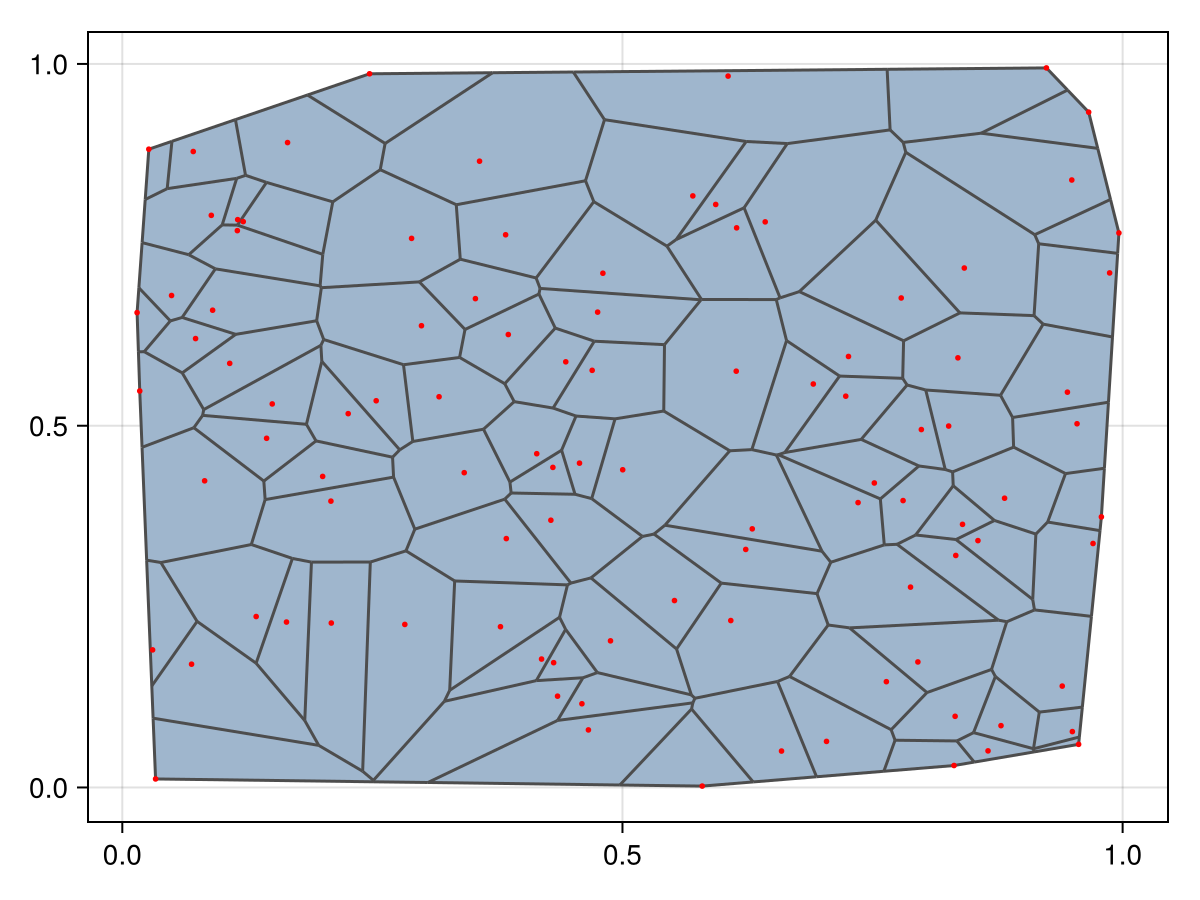

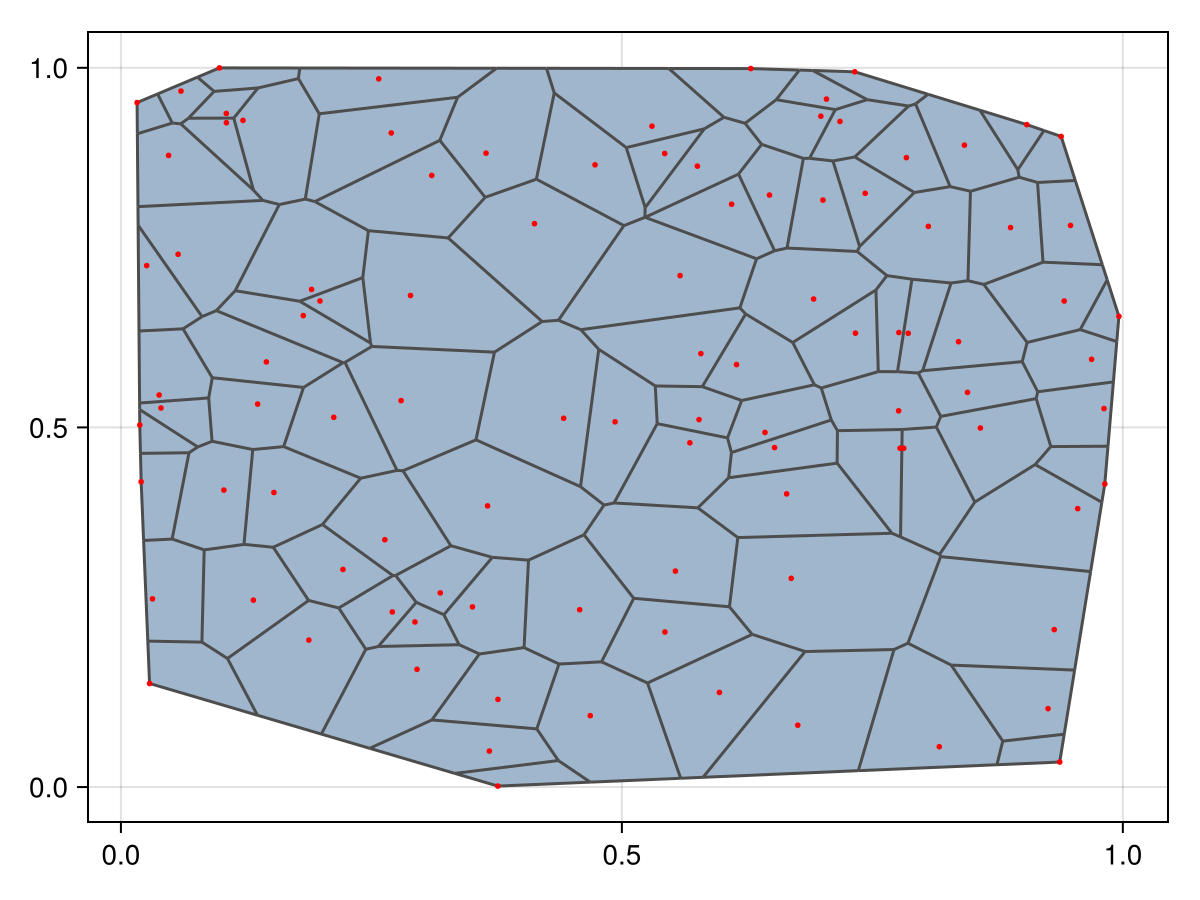

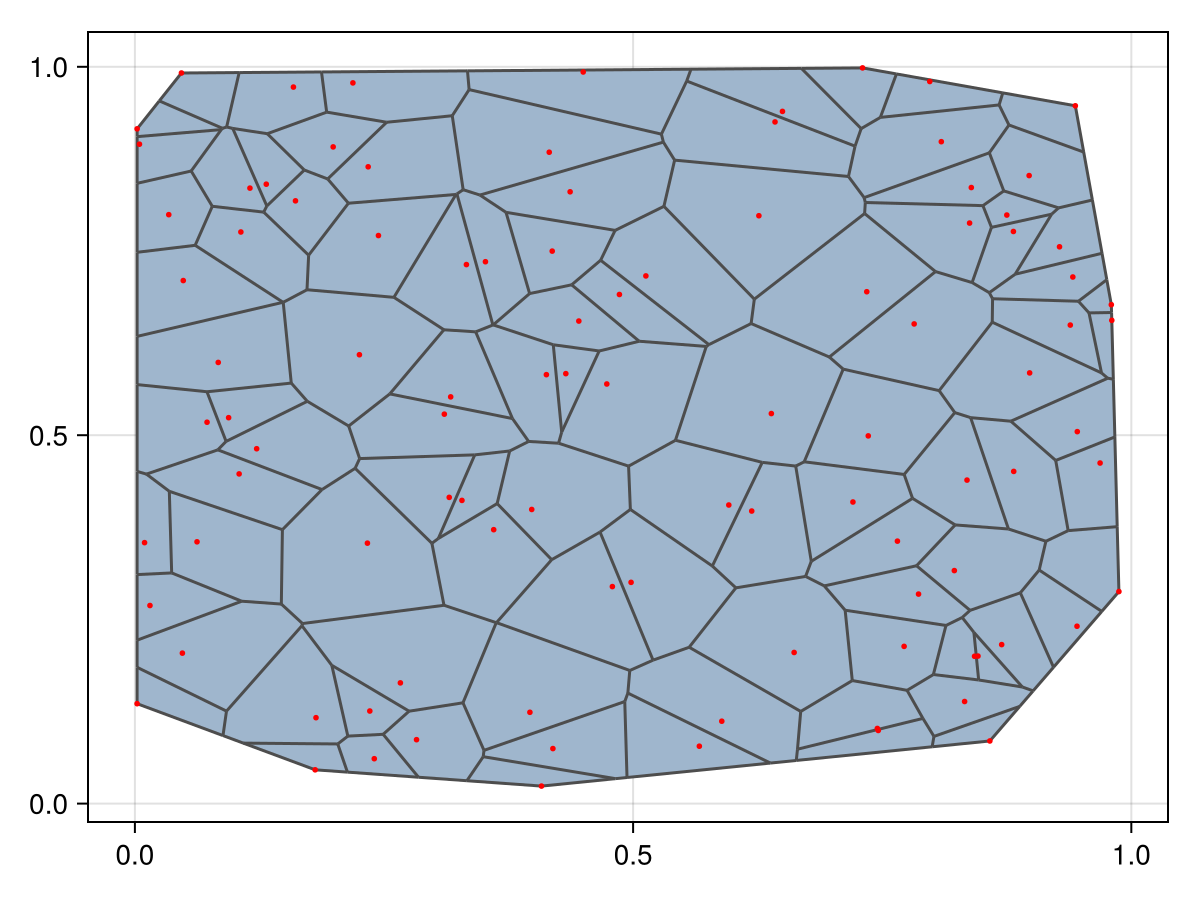

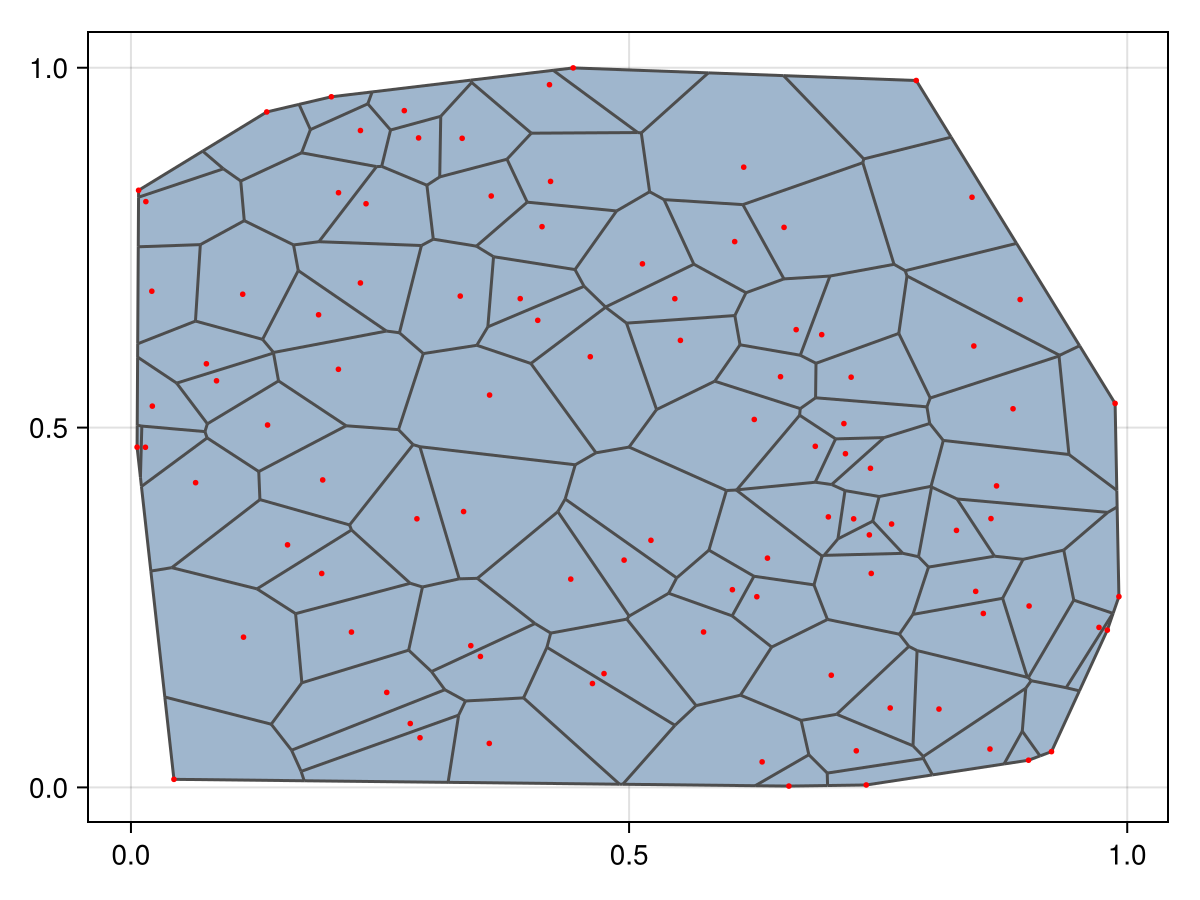

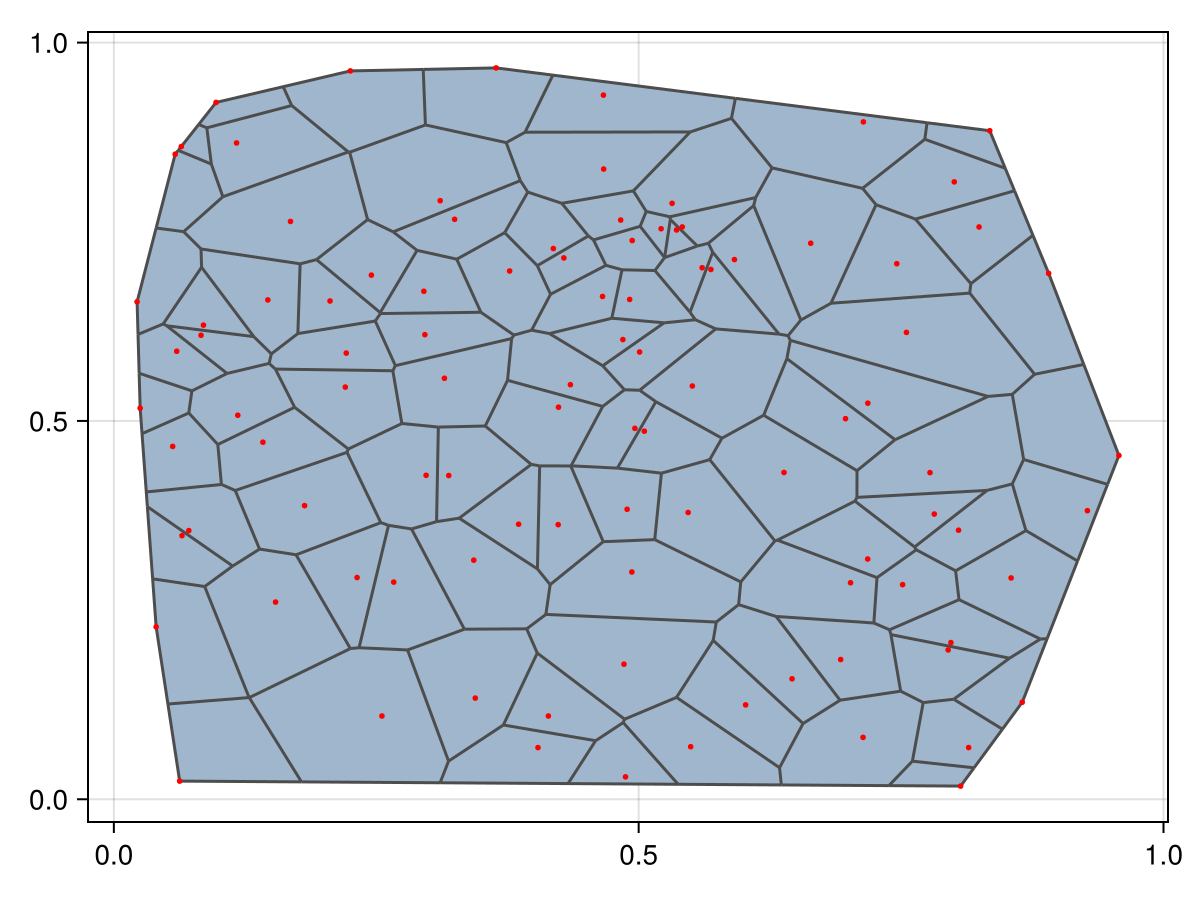

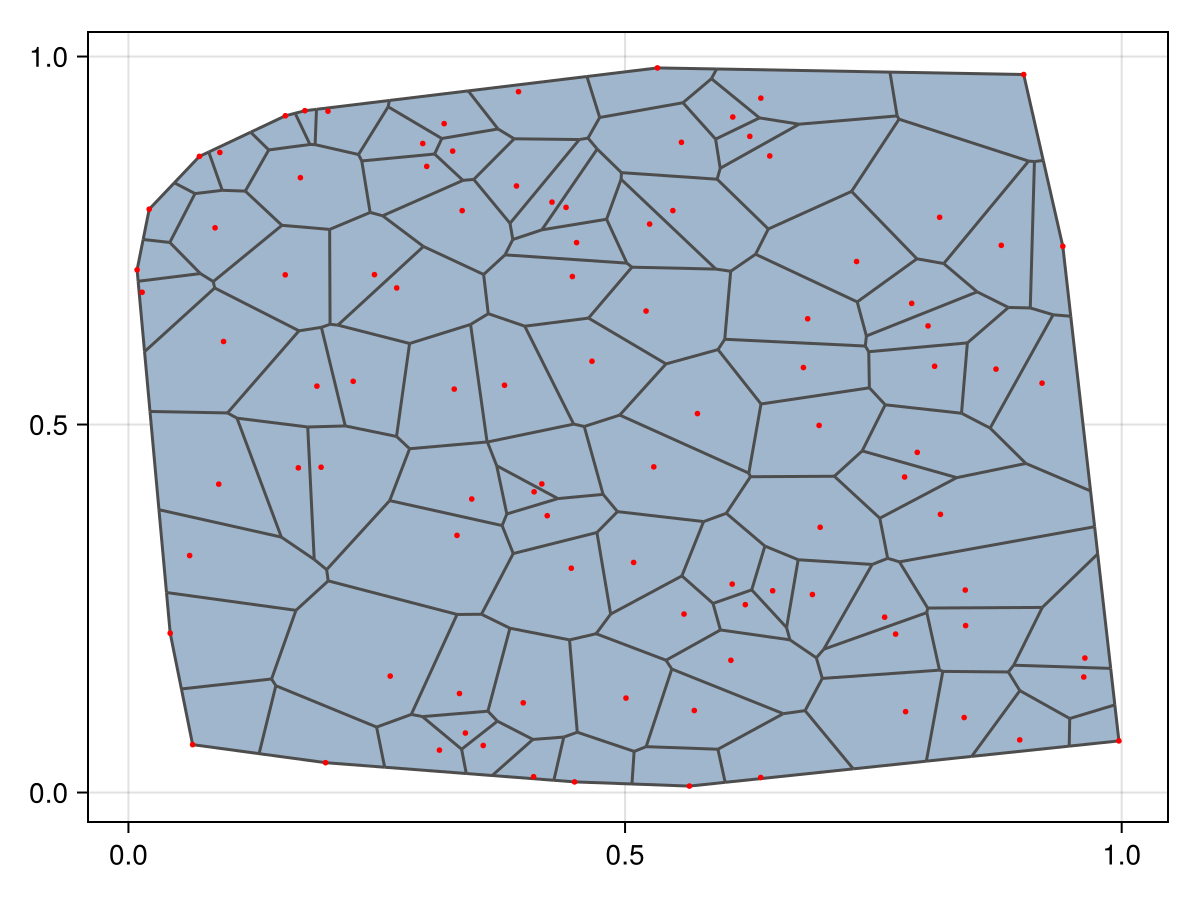

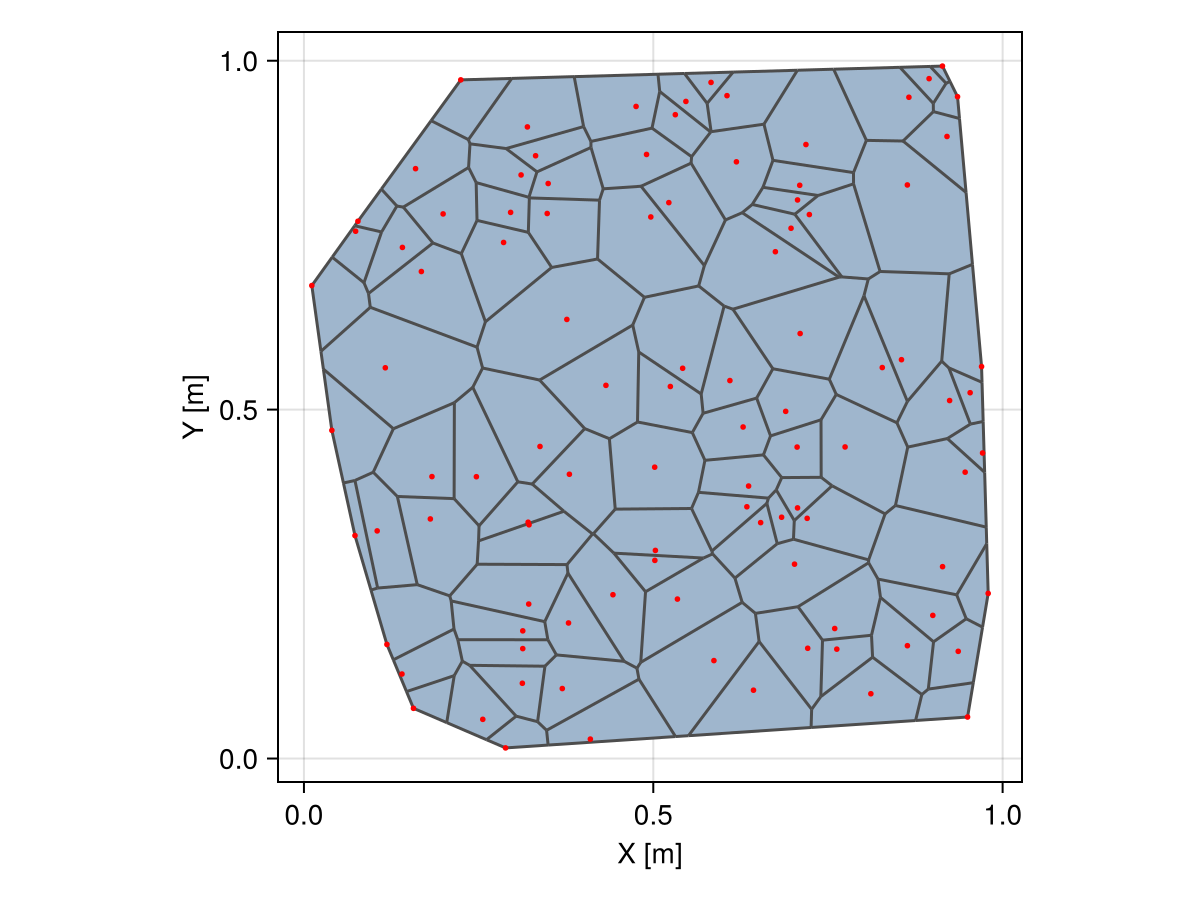

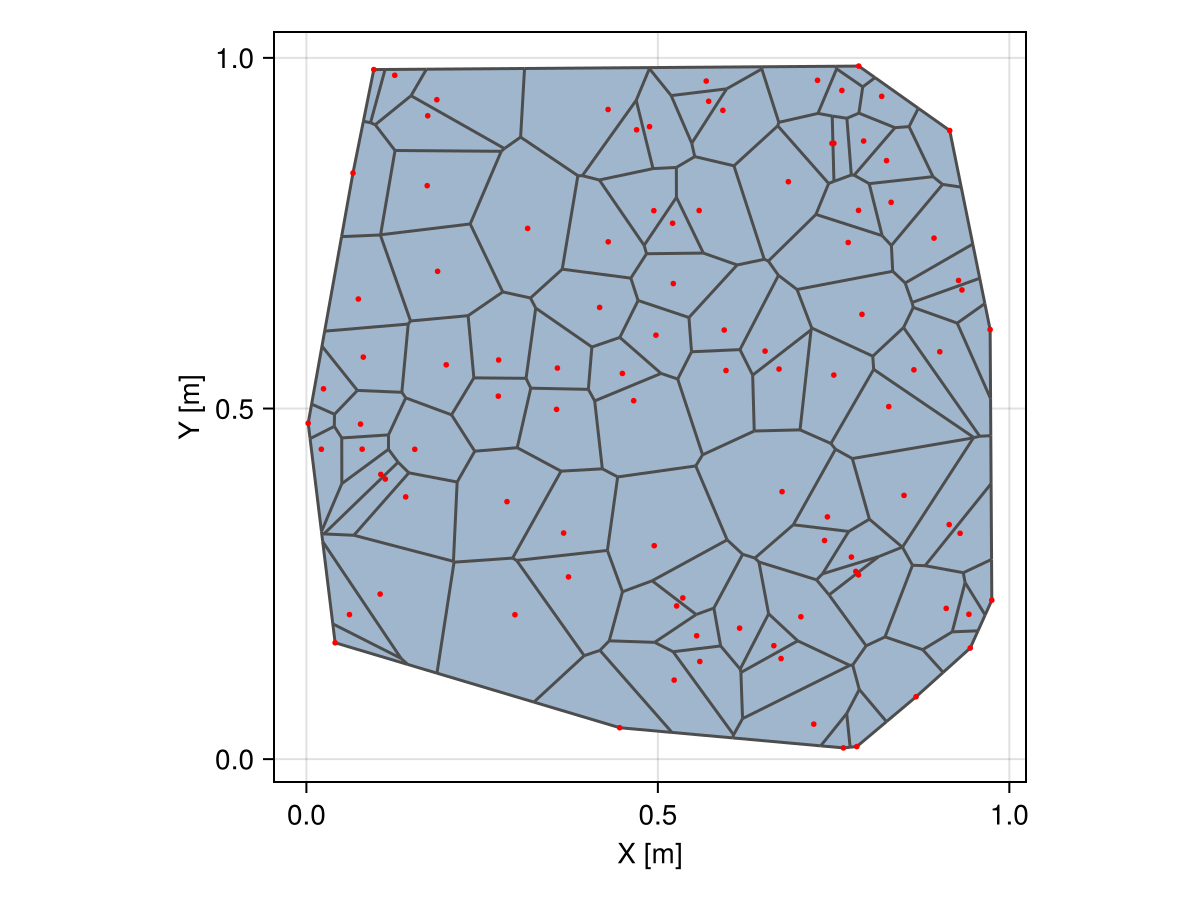

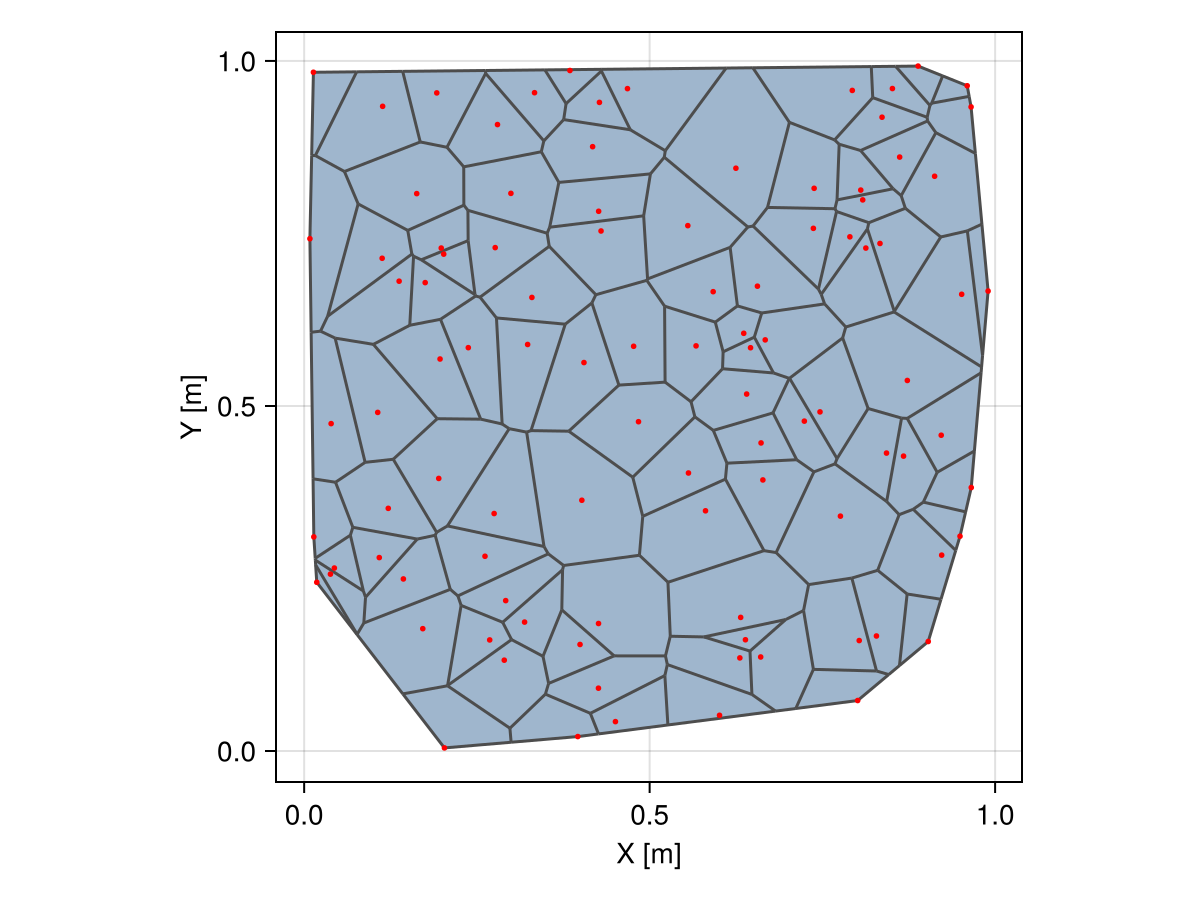

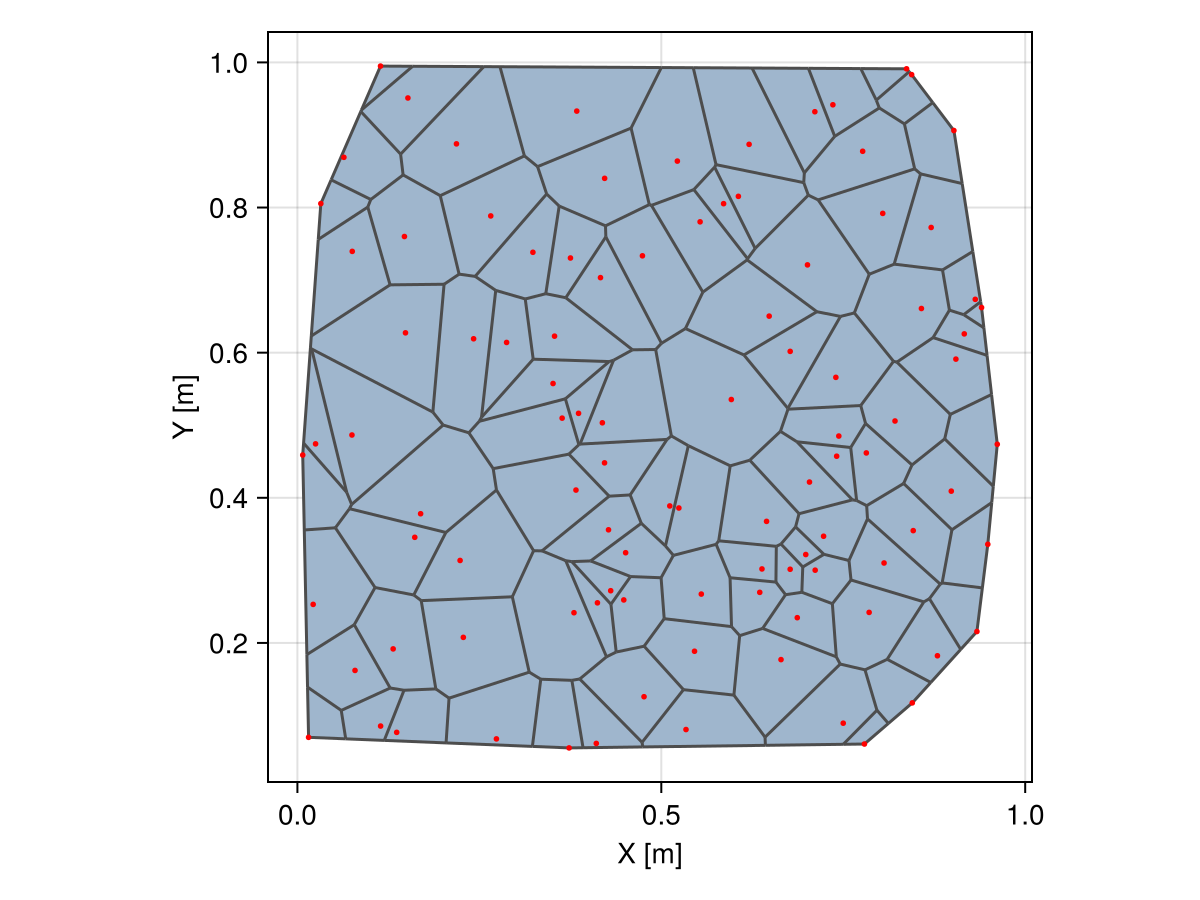

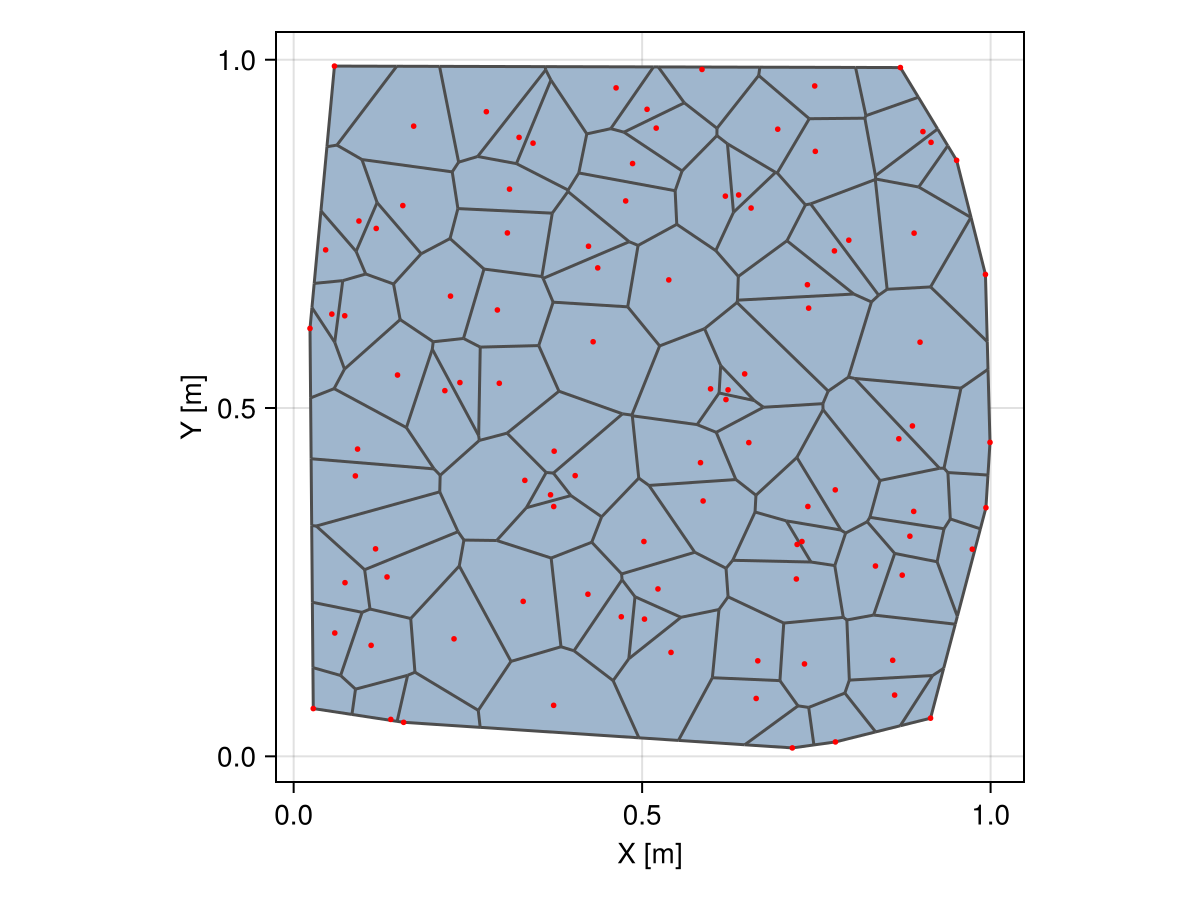

points = rand(Point, 100, crs=Cartesian2D)
mesh = tesselate(points, VoronoiTesselation())
viz(mesh, showsegments = true)
viz!(points, color = :red)
Mke.current_figure()
