Simplification

Meshes.simplify — Function

simplify(object, method)

Simplify geometric object with given method.

source

Meshes.SimplificationMethod — Type

SimplificationMethod

A method for simplifying geometric objects.

source

SelingerSimplification

Meshes.SelingerSimplification — Type

SelingerSimplification(τ)

Selinger's simplification algorithm with tolerance τ in length units (default to meter).

The higher is the tolerance, the more aggressive is the simplification.

References

SelingerSimplification, P. 2003. Potrace: A polygon-based tracing algorithm

source

poly = PolyArea([(0.22926679, 0.47329807), (0.23094065, 0.44913536), (0.2569517, 0.38217533),
                 (0.3072999, 0.272418), (0.34814754, 0.18421611), (0.37949452, 0.11756973),
                 (0.4013409, 0.07247882), (0.41368666, 0.048943404), (0.42597583, 0.031655528),
                 (0.4382084, 0.0206152), (0.45038435, 0.015822414), (0.4625037, 0.017277176),
                 (0.47175184, 0.02439156), (0.47812873, 0.03716557), (0.4816344, 0.055599205),
                 (0.48226887, 0.07969247), (0.48172843, 0.10446181), (0.4800131, 0.12990724),
                 (0.47712287, 0.15602873), (0.47305775, 0.18282633), (0.47093934, 0.20558843),
                 (0.47076762, 0.22431506), (0.47254258, 0.23900622), (0.47626427, 0.24966191),
                 (0.47768936, 0.25845313), (0.47681788, 0.26537988), (0.4736498, 0.27044216),
                 (0.46818516, 0.27363995), (0.4613889, 0.27232954), (0.45326096, 0.2665109),
                 (0.44380143, 0.256184), (0.43301025, 0.24134888), (0.4246466, 0.22978415),
                 (0.41871038, 0.22148979), (0.4152017, 0.21646582), (0.4141205, 0.21471222),
                 (0.41227448, 0.21589448), (0.40966362, 0.22001258), (0.40628797, 0.22706655),
                 (0.40214747, 0.23705636), (0.40200475, 0.24653101), (0.40585983, 0.25549048),
                 (0.41371268, 0.2639348), (0.4255633, 0.2718639), (0.4378565, 0.28495985),
                 (0.4505922, 0.30322257), (0.46377045, 0.32665208), (0.47739124, 0.35524836),
                 (0.5046394, 0.36442512), (0.5455148, 0.35418236), (0.60001767, 0.32452005),
                 (0.66814786, 0.27543822), (0.7186763, 0.24664374), (0.75160307, 0.23813659),
                 (0.76692814, 0.2499168), (0.7646515, 0.28198436), (0.7769703, 0.29925033),
                 (0.8038847, 0.3017147), (0.84539455, 0.28937748), (0.9015, 0.26223865),
                 (0.94408435, 0.24899776), (0.9731477, 0.24965483), (0.98869, 0.26420987),
                 (0.9907113, 0.29266283), (0.9849871, 0.31338844), (0.97151726, 0.32638666),
                 (0.950302, 0.3316575), (0.9213412, 0.32920095), (0.8798396, 0.34078467),
                 (0.8257972, 0.36640862), (0.7592141, 0.40607283), (0.6800901, 0.4597773),
                 (0.6450007, 0.49104902), (0.6539457, 0.49988794), (0.7069251, 0.48629412),
                 (0.803939, 0.45026752), (0.877913, 0.4226481), (0.9288472, 0.40343583),
                 (0.9567415, 0.39263073), (0.961596, 0.39023277), (0.9419039, 0.40523484),
                 (0.89766514, 0.43763688), (0.8288798, 0.48743892), (0.7355478, 0.55464095),
                 (0.6655121, 0.60063523), (0.6187727, 0.6254217), (0.5953296, 0.62900037),
                 (0.5951828, 0.6113712), (0.57516366, 0.60261106), (0.53527224, 0.6027198),
                 (0.4755085, 0.6116975), (0.3958725, 0.6295441), (0.33913234, 0.6398651),
                 (0.30528808, 0.6426605), (0.2943397, 0.6379303), (0.30628717, 0.6256744),
                 (0.32149008, 0.6093727), (0.33994842, 0.5890249), (0.36166218, 0.5646312),
                 (0.38663134, 0.5361916), (0.3919681, 0.520893), (0.3776725, 0.5187355),
                 (0.34374446, 0.52971905), (0.29018405, 0.5538437), (0.25439468, 0.5678829),
                 (0.2363764, 0.5718367), (0.23612918, 0.56570506), (0.25365302, 0.549488),
                 (0.2733971, 0.5246488), (0.29536137, 0.49118724), (0.3195459, 0.4491035),
                 (0.34595063, 0.39839754), (0.3647463, 0.3590396), (0.37593287, 0.33102974),
                 (0.37951034, 0.31436795), (0.37547874, 0.30905423), (0.36070493, 0.3204269),
                 (0.33518887, 0.348486), (0.29893062, 0.3932315), (0.25193012, 0.45466346)])

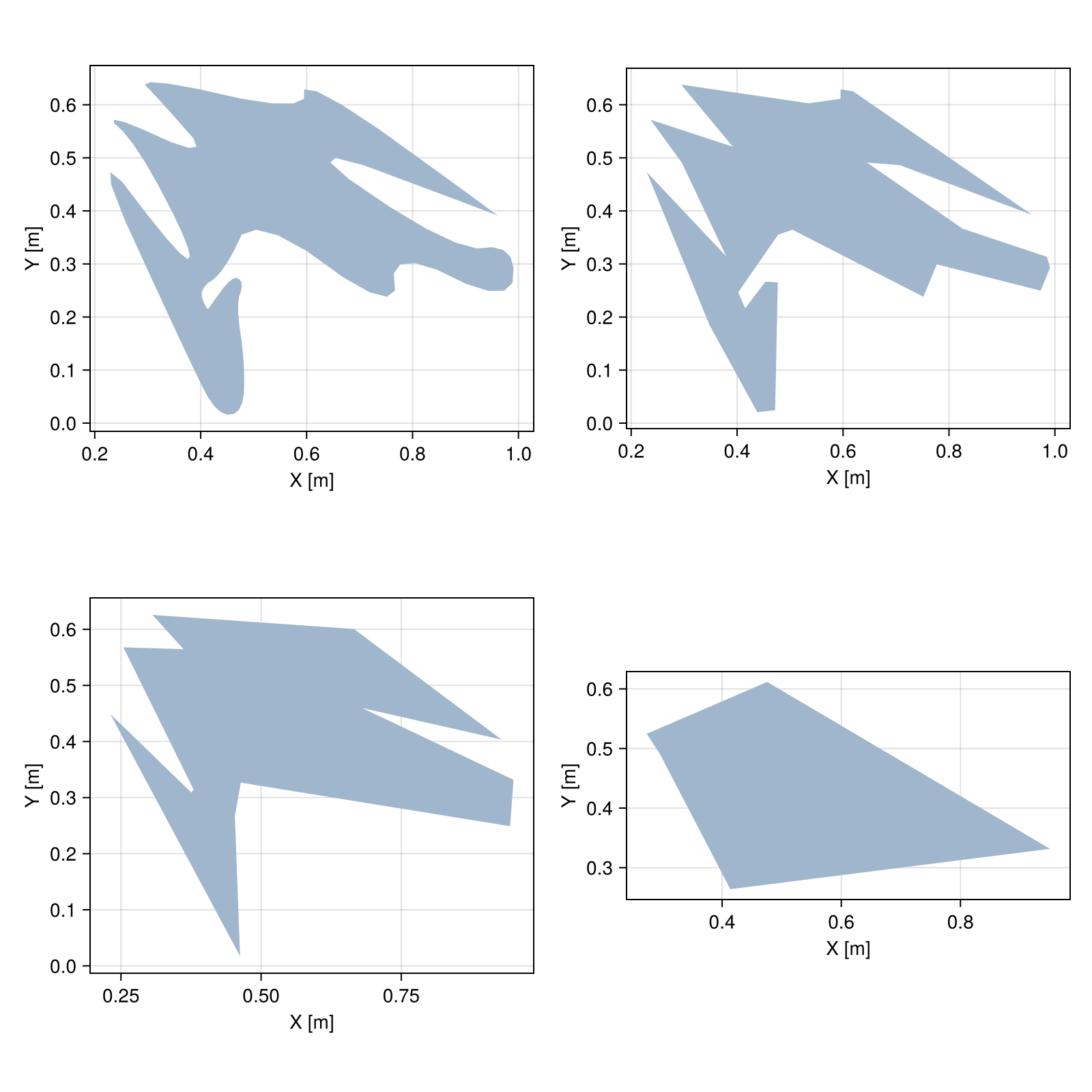

simp1 = simplify(poly, SelingerSimplification(0.01))
simp2 = simplify(poly, SelingerSimplification(0.05))
simp3 = simplify(poly, SelingerSimplification(0.10))

fig = Mke.Figure(size = (800, 800))
viz(fig[1,1], poly)
viz(fig[1,2], simp1)
viz(fig[2,1], simp2)
viz(fig[2,2], simp3)
fig

DouglasPeuckerSimplification

Meshes.DouglasPeuckerSimplification — Type

DouglasPeuckerSimplification(τ)

Douglas-Peucker's simplification algorithm with tolerance τ in length units (default to meter).

The higher is the tolerance, the more aggressive is the simplification.

References

Douglas, D. and Peucker, T. 1973. Algorithms for the Reduction of the Number of Points Required to Represent a Digitized Line or its Caricature

source

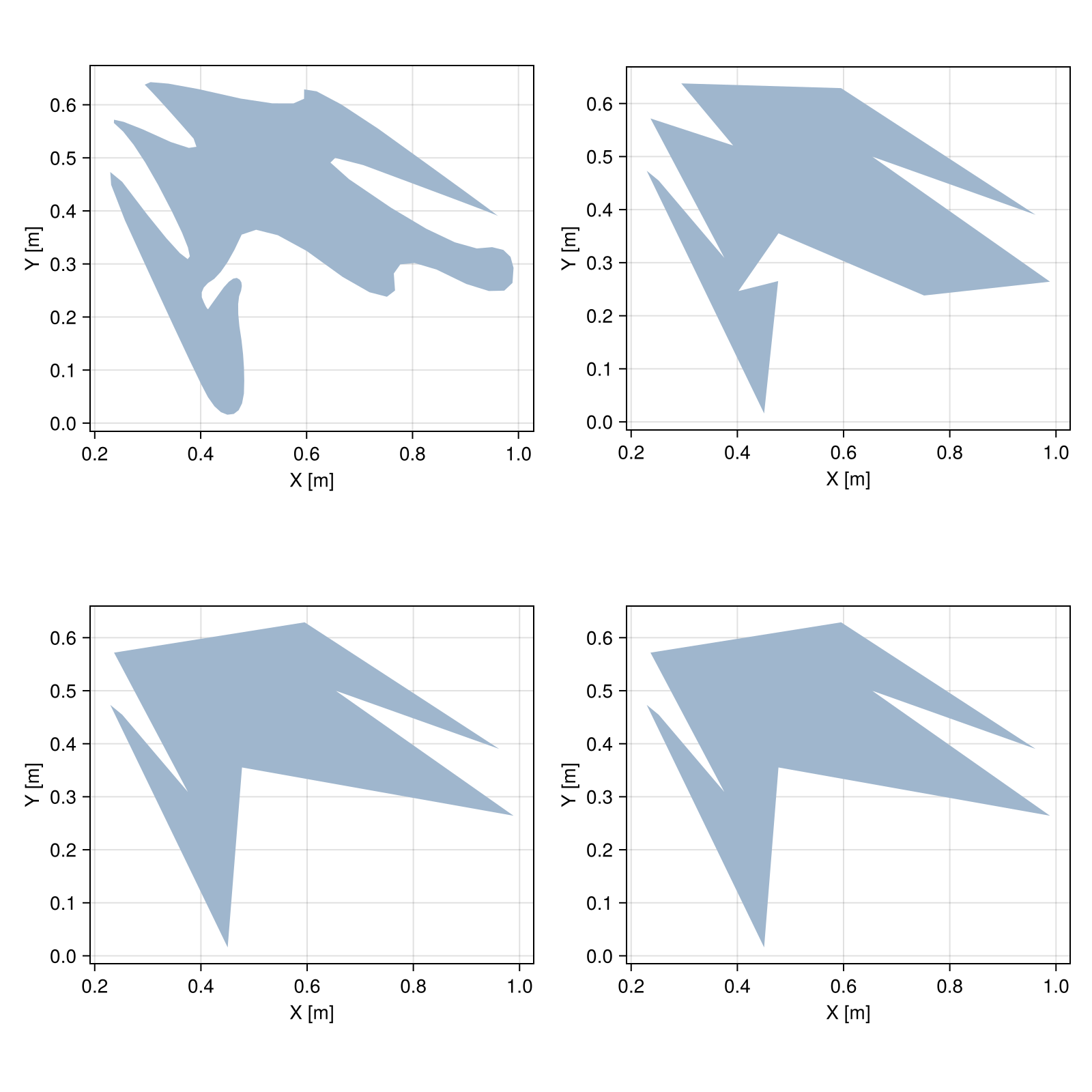

simp1 = simplify(poly, DouglasPeuckerSimplification(0.01))
simp2 = simplify(poly, DouglasPeuckerSimplification(0.05))
simp3 = simplify(poly, DouglasPeuckerSimplification(0.10))

fig = Mke.Figure(size = (800, 800))
viz(fig[1,1], poly)
viz(fig[1,2], simp1)
viz(fig[2,1], simp2)
viz(fig[2,2], simp3)
fig

MinMaxSimplification

Meshes.MinMaxSimplification — Type

MinMaxSimplification(method; min=3, max=typemax(Int), maxiter=10)

Simplify geometries with binary search algorithm and a parent simplification method.

The simplification is performed until the number of vertices is in the [min, max] range or until a maximum number of iterations maxiter is reached.

source

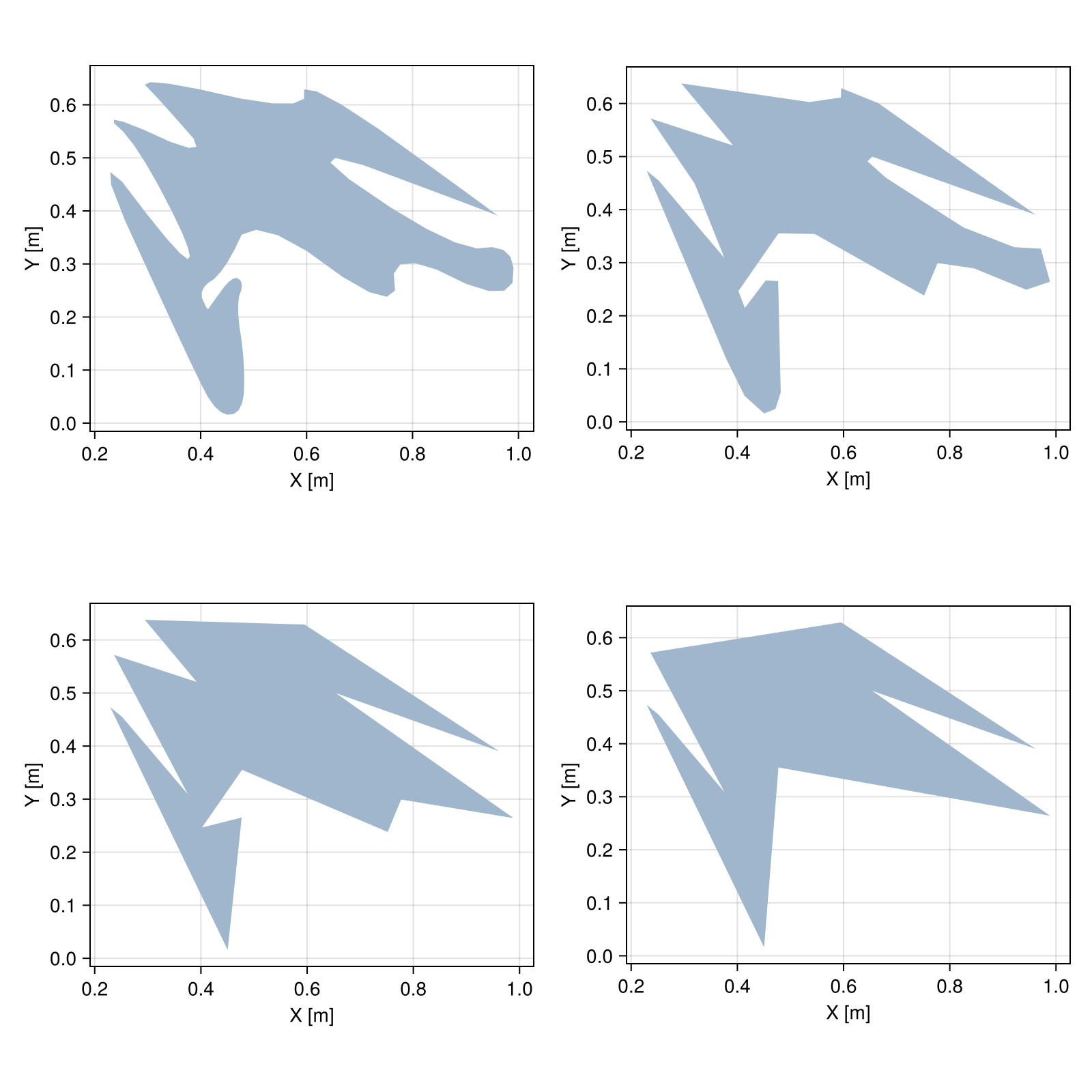

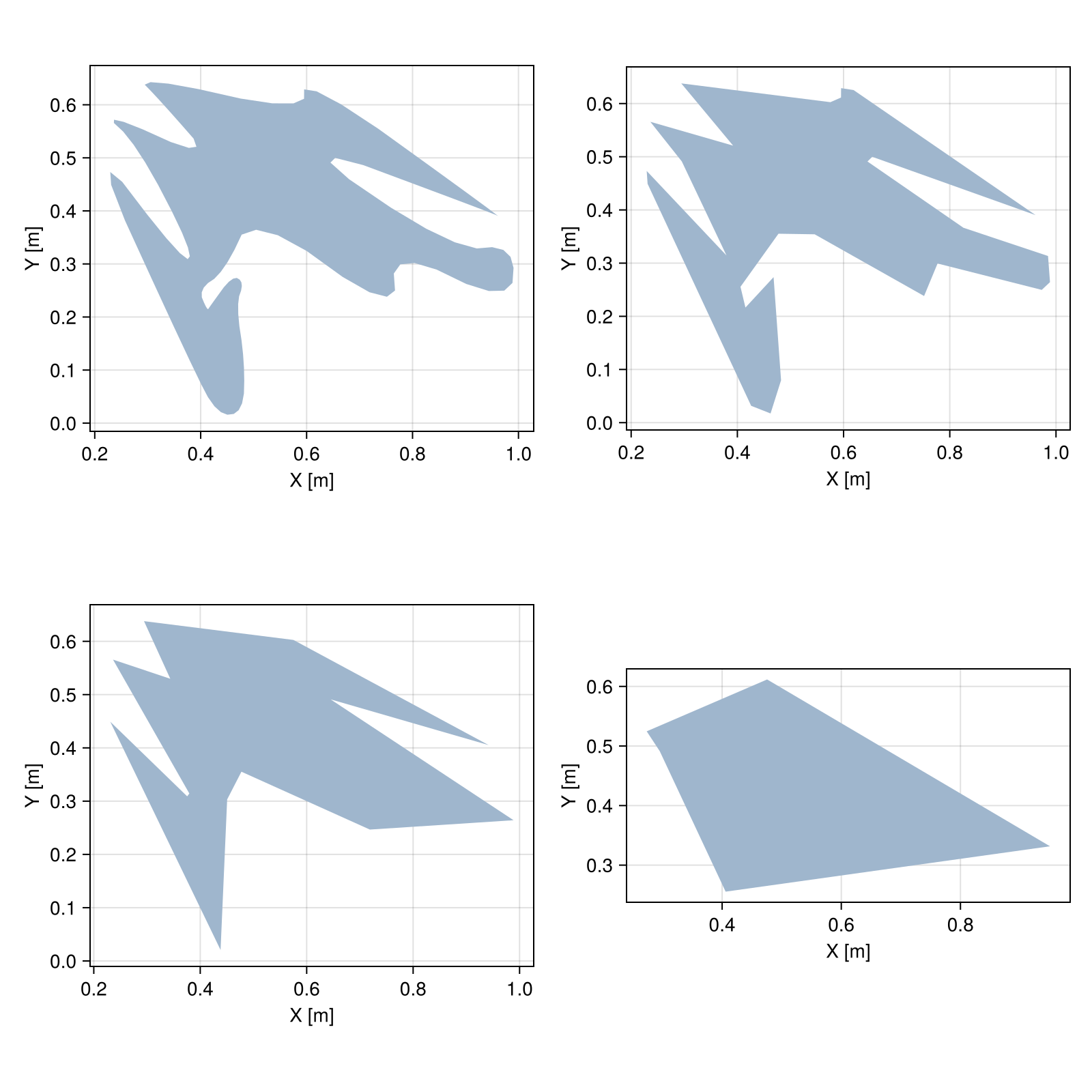

simp1 = simplify(poly, MinMaxSimplification(DouglasPeuckerSimplification, max=20))
simp2 = simplify(poly, MinMaxSimplification(DouglasPeuckerSimplification, max=10))
simp3 = simplify(poly, MinMaxSimplification(DouglasPeuckerSimplification, max=5))

fig = Mke.Figure(size = (800, 800))
viz(fig[1,1], poly)
viz(fig[1,2], simp1)
viz(fig[2,1], simp2)
viz(fig[2,2], simp3)
fig
