Clipping

Meshes.clip — Function

clip(geometry, other, method)

Clip the subject geometry with other geometry using clipping method.

source

Meshes.ClippingMethod — Type

ClippingMethod

A method for clipping geometries with other geometries.

source

Sutherland-Hodgman

Meshes.SutherlandHodgmanClipping — Type

SutherlandHodgmanClipping()

The Sutherland-Hodgman algorithm for clipping polygons.

References

Sutherland, I.E. & Hodgman, G.W. 1974. Reentrant Polygon Clipping

Notes

The algorithm assumes that the clipping geometry is convex.

source

# polygon to clip
outer = Ring((8, 0), (4, 8), (2, 8), (-2, 0), (0, 0), (1, 2), (5, 2), (6, 0))
inner = Ring((4, 4), (2, 4), (3, 6))
poly = PolyArea([outer, inner])

# clipping geometry
other = Box((0,1), (3,7))

# clipped polygon

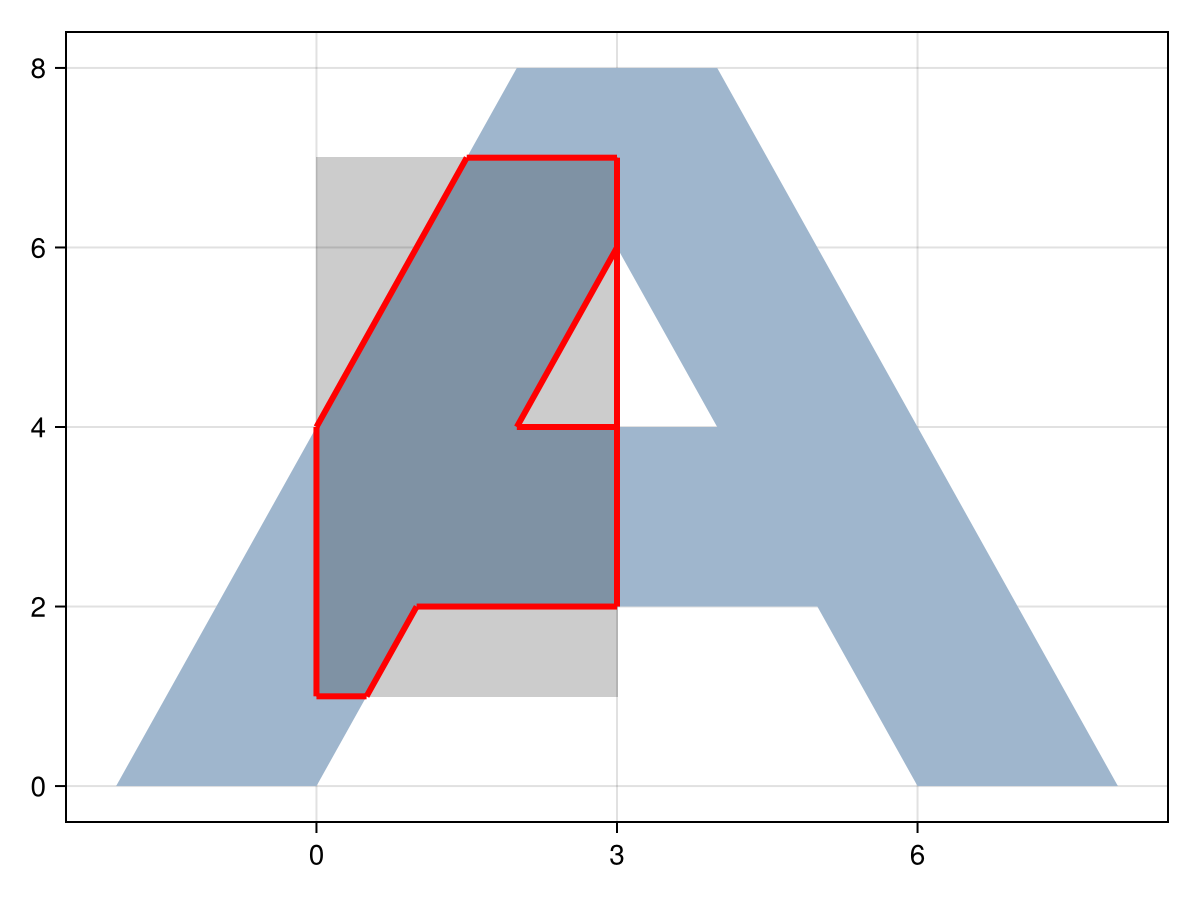

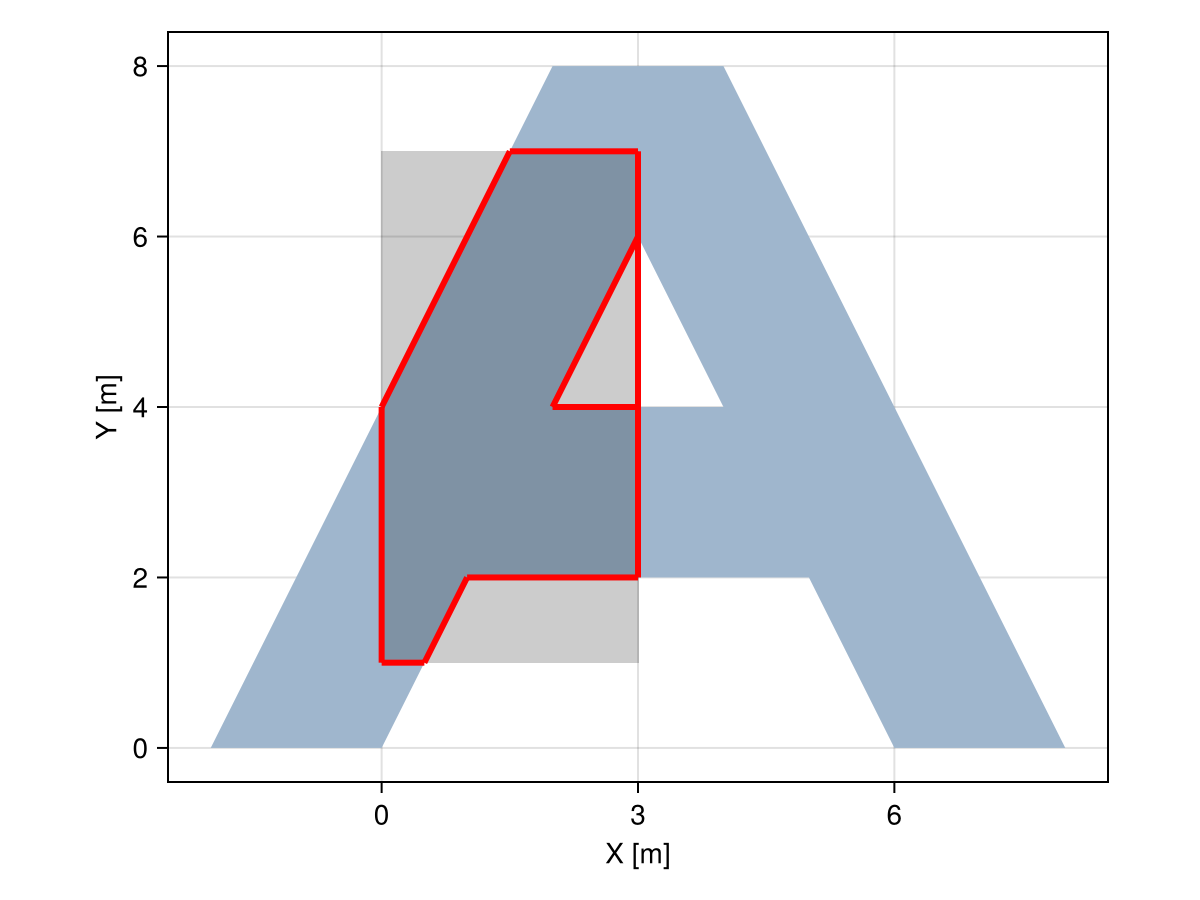

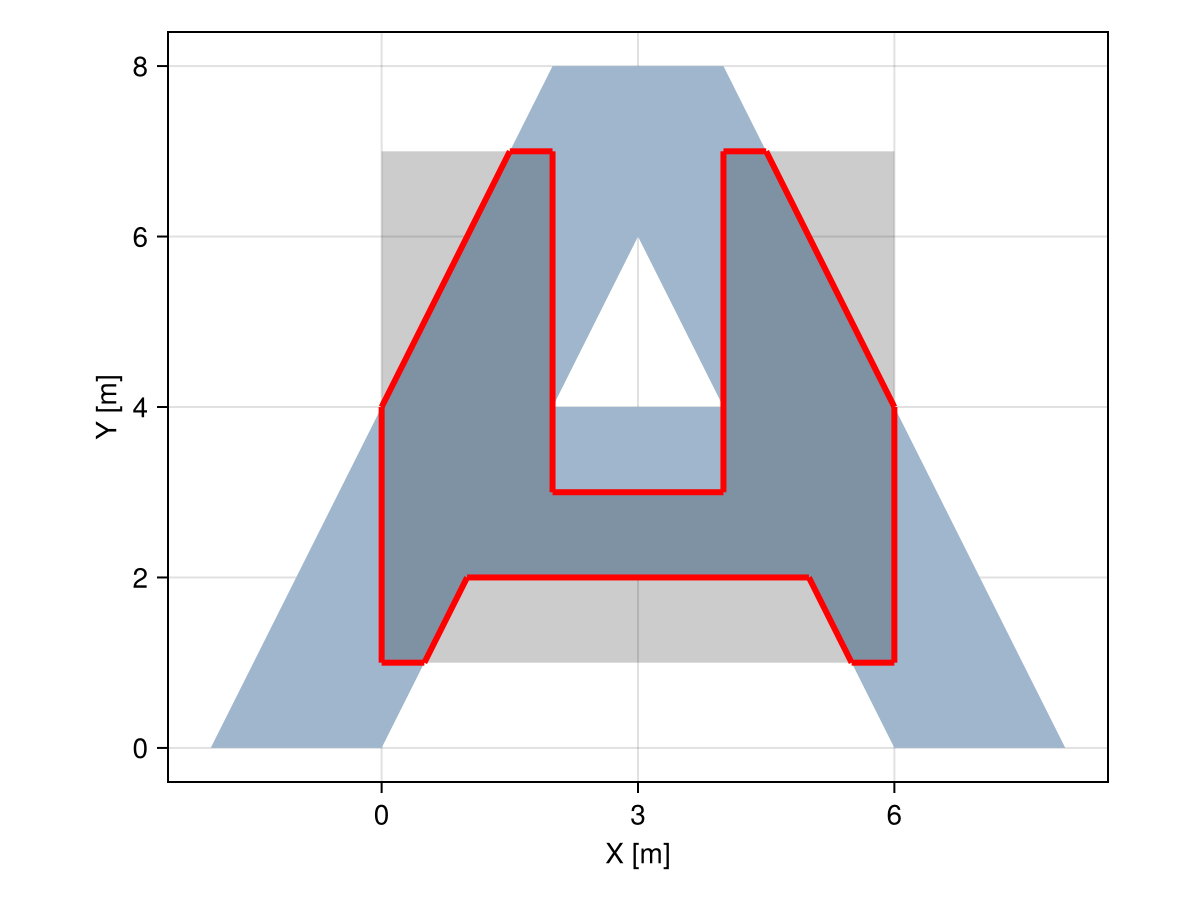

clipped = clip(poly, other, SutherlandHodgmanClipping())

viz(poly)
viz!(other, color = :black, alpha = 0.2)
viz!(boundary(clipped), color = :red, segmentsize = 3)
Mke.current_figure()
