Voronoi Tessellations
In this tutorial, we demonstrate how we can construct Voronoi tessellations and work with them. Voronoi tessellations are built from a dual Delaunay triangulation using voronoi. To start, let us load in the packages.
using DelaunayTriangulation
using CairoMakie
using StableRNGsWe build the tessellation by constructing the triangulation, and then passing that triangulation into voronoi.
points = [
(-3.0, 7.0), (1.0, 6.0), (-1.0, 3.0),
(-2.0, 4.0), (3.0, -2.0), (5.0, 5.0),
(-4.0, -3.0), (3.0, 8.0)
]
rng = StableRNG(123)
tri = triangulate(points; rng)
vorn = voronoi(tri)Voronoi Tessellation.
Number of generators: 8
Number of polygon vertices: 9

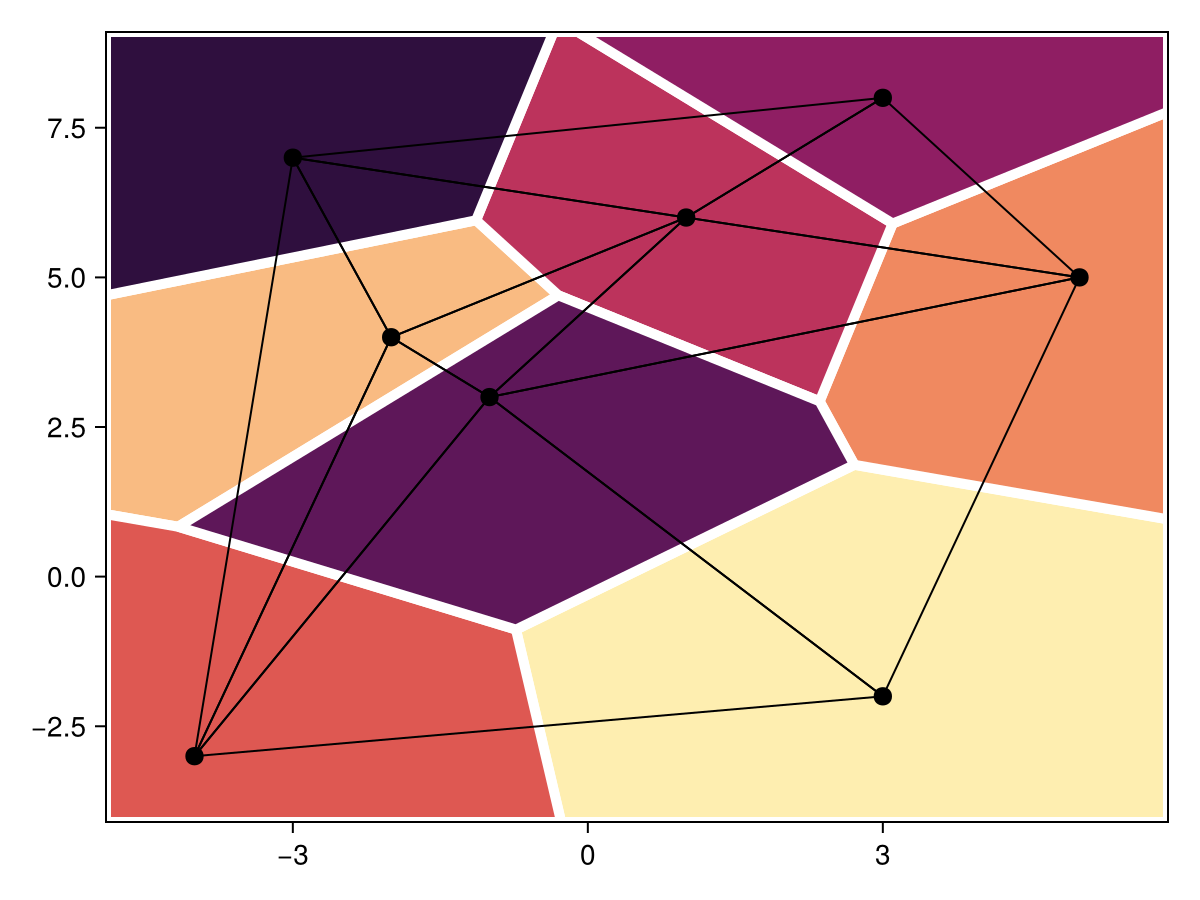

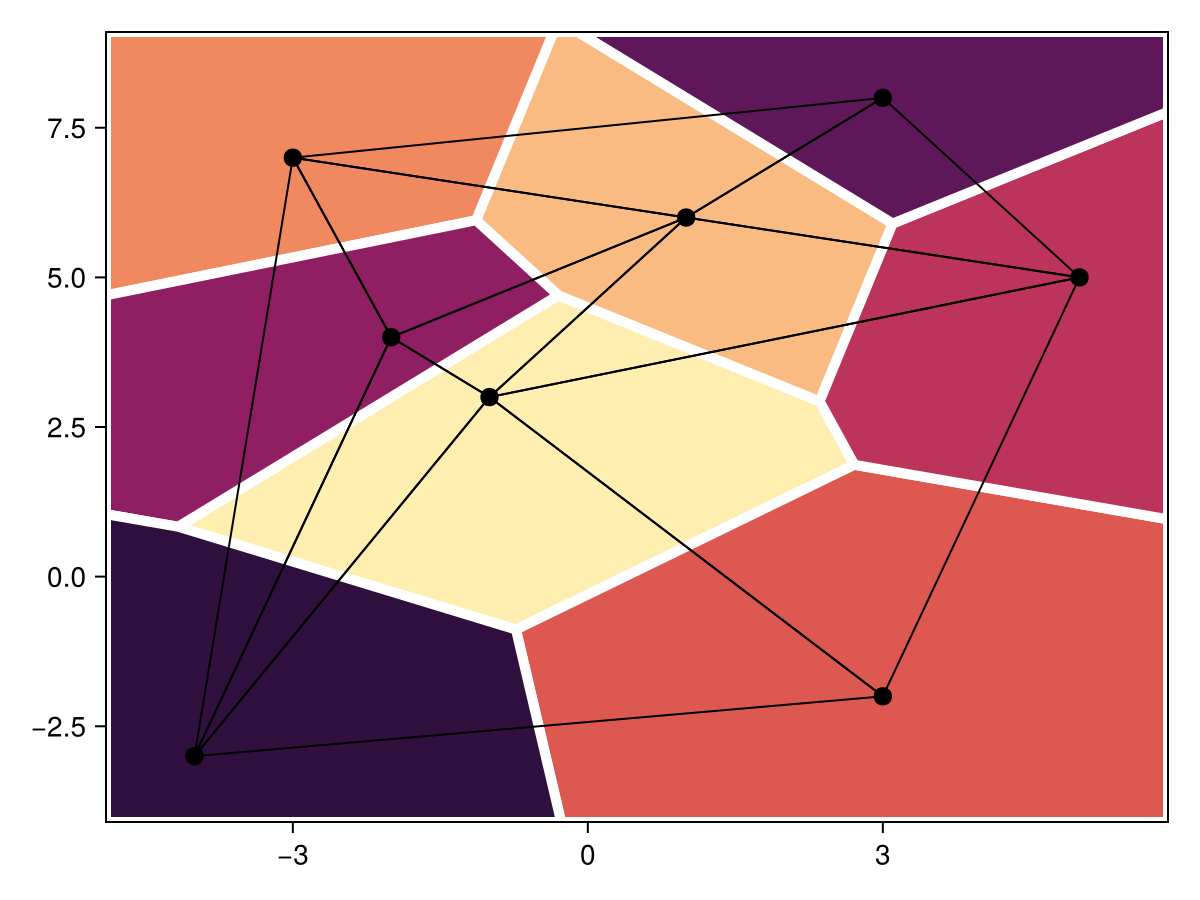

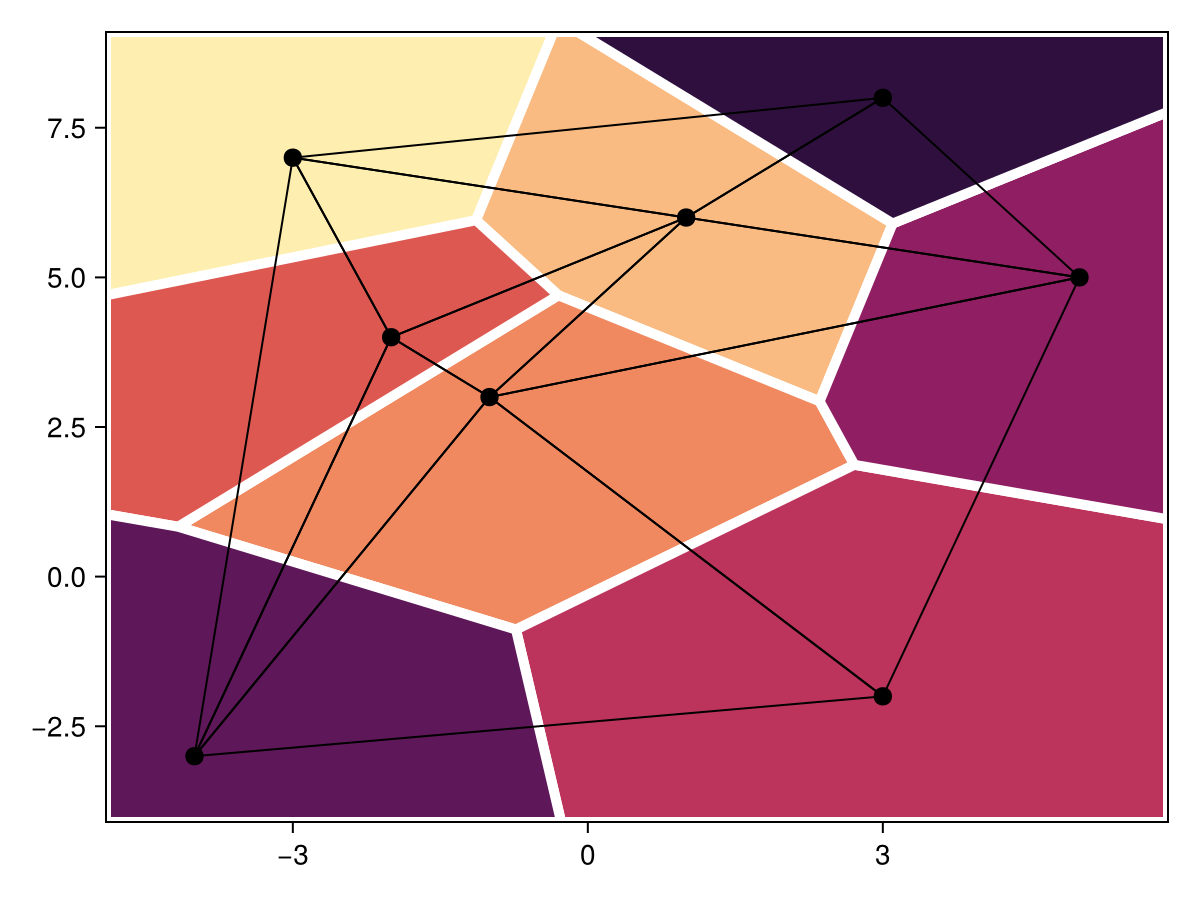

Number of polygons: 8To visualise the tessellation, you can use voronoiplot. Here, we also compare the tessellation with its dual triangulation.
fig, ax, sc = voronoiplot(vorn, markersize=13, colormap=:matter, strokecolor=:white, strokewidth=5)
triplot!(ax, tri)
fig
The polygons each correspond to a generator, which is the black point inside it coming from points, i.e. the vertices of the triangulation. The polygons are all convex. Note also that the unbounded polygons, those coming from generators on the convex hull of the point set, are clipped in the above plot but in reality they go on to infinity. In the clipping to rectangular regions tutorial, we discuss how these polygons are clipped to a rectangle in more detail.
Let us now demonstrate in more detail how we can work with vorn.
Iterating over generators
The generators are stored in a Dict, mapping vertices to coordinates; this is a Dict rather than a Vector because the original triangulation may not contain all the points, noting that get_generators(vorn) is just a repackaged version of get_points(tri). (A separate field is needed so that clipped and centroidal tessellations can add new generators without affecting the points in tri.) These generators can be accessed using get_generators(vorn):
DelaunayTriangulation.get_generators(vorn)Dict{Int64, Tuple{Float64, Float64}} with 8 entries:
5 => (3.0, -2.0)
4 => (-2.0, 4.0)
6 => (5.0, 5.0)
7 => (-4.0, -3.0)
2 => (1.0, 6.0)
8 => (3.0, 8.0)
3 => (-1.0, 3.0)
1 => (-3.0, 7.0)It is preferred that you use each_generator(vorn), though, which is an iterator over the generators:
each_generator(vorn)KeySet for a Dict{Int64, Tuple{Float64, Float64}} with 8 entries. Keys:
5
4
6
7
2
8
3
1Note that this is just the keys of the above Dict. To access specific generators, you use get_generator. For example,
get_generator(vorn, 3)(-1.0, 3.0)To give an example, here is how we can compute the average generator position.
function average_generator(vorn)
cx, cy = 0.0, 0.0
for i in each_generator(vorn)
p = get_generator(vorn, i)
px, py = getxy(p)
cx += px
cy += py
end
n = num_polygons(vorn) # same as DelaunayTriangulation.num_generators(vorn)
cx /= n
cy /= n
return cx, cy
end
cx, cy = average_generator(vorn)(0.25, 3.5)Iterating over polygon and polygon vertices
You can also look at the individual polygons, and all their vertices. These polygons and their vertices are stored as below:
DelaunayTriangulation.get_polygons(vorn)Dict{Int64, Vector{Int64}} with 8 entries:
5 => [4, 8, -2, -1, 4]
4 => [1, 9, 3, 7, 1]
6 => [-1, -3, 6, 5, 4, -1]
7 => [8, 1, 7, -5, -2, 8]
2 => [9, 5, 6, 2, 3, 9]
8 => [-3, -4, 2, 6, -3]
3 => [4, 5, 9, 1, 8, 4]
1 => [3, 2, -4, -5, 7, 3]DelaunayTriangulation.get_polygon_points(vorn)9-element Vector{Tuple{Float64, Float64}}:
(-4.166666666666666, 0.8333333333333335)
(-0.2999999999999998, 9.3)
(-1.1363636363636365, 5.954545454545455)
(2.710526315789474, 1.868421052631579)
(2.357142857142857, 2.9285714285714284)
(3.1, 5.9)
(-10.807692307692307, 2.730769230769231)
(-0.7307692307692308, -0.8846153846153846)
(-0.30000000000000004, 4.7)You should not work with these fields directly, though. If you want to look at a specific polygon, you should use get_polygon. For example,
get_polygon(vorn, 1)6-element Vector{Int64}:
3
2
-4
-5
7
3This is a Vector of the vertices of the polygon, in counter-clockwise order, and such that the first and last vertices are the same. The vertices refer to points in the polygon_points field, which you could then obtain using get_polygon_point. For example, the first vertex corresponds to the coordinates:
get_polygon_point(vorn, 1)(-4.166666666666666, 0.8333333333333335)In get_polygon(vorn, 1), notice that there are two negative indices. These negative indices correspond to vertices out at infinity; their actual values do not matter, just that they are negative. Thus, this polygon is actually an unbounded polygon. This can be checked in two ways:
1 ∈ DelaunayTriangulation.get_unbounded_polygons(vorn)trueget_area(vorn, 1) == InftrueThere are several ways that you can iterate over the polygons. If you want each polygon, then you can use each_polygon:
each_polygon(vorn)ValueIterator for a Dict{Int64, Vector{Int64}} with 8 entries. Values:
[4, 8, -2, -1, 4]
[1, 9, 3, 7, 1]
[-1, -3, 6, 5, 4, -1]
[8, 1, 7, -5, -2, 8]
[9, 5, 6, 2, 3, 9]
[-3, -4, 2, 6, -3]
[4, 5, 9, 1, 8, 4]
[3, 2, -4, -5, 7, 3]This is an iterator over all the polygon vertices, but you do not get the associated polygon index. If you want an iterator that is over the polygon indices, you use each_polygon_index:
each_polygon_index(vorn)KeySet for a Dict{Int64, Vector{Int64}} with 8 entries. Keys:
5
4
6
7
2
8
3
1If you did want to have both the indices and the vertices together, you can use zip on these two iterators. This would be the same as iterating over the internal polygons field, but this could be subject to change in the future. To get an iterator over the polygon vertices rather than caring about a specific polygon, you use each_polygon_vertex:
each_polygon_vertex(vorn)Base.OneTo(9)This is just an iterator of the indices to pass into get_polygon_point. You can also query the number of polygons and polygon vertices as follows:
num_polygons(vorn)8num_polygon_vertices(vorn)9To give an example of how we might use these iterators, here we compute the area of all polygons.
function get_polygon_area(vorn, i)
i ∈ DelaunayTriangulation.get_unbounded_polygons(vorn) && return Inf
area = 0.0
vertices = get_polygon(vorn, i)
vⱼ = vertices[begin]
pⱼ = get_polygon_point(vorn, vⱼ)
xⱼ, yⱼ = getxy(pⱼ)
for j in (firstindex(vertices)+1):lastindex(vertices) # same as 2:length(vertices)
vⱼ₊₁ = vertices[j]
pⱼ₊₁ = get_polygon_point(vorn, vⱼ₊₁)
xⱼ₊₁, yⱼ₊₁ = getxy(pⱼ₊₁)
area += xⱼ * yⱼ₊₁ - xⱼ₊₁ * yⱼ
vⱼ, pⱼ, xⱼ, yⱼ = vⱼ₊₁, pⱼ₊₁, xⱼ₊₁, yⱼ₊₁
end
return area / 2
end
function get_polygon_areas(vorn)
areas = zeros(num_polygons(vorn))
for i in each_polygon_index(vorn)
areas[i] = get_polygon_area(vorn, i)
end
return areas
end
vorn_areas = get_polygon_areas(vorn)8-element Vector{Float64}:
Inf
14.34935064935065
20.07578561789088
23.92237762237762
Inf
Inf
Inf
InfNote that this could have also been obtained using get_area:
function direct_polygon_areas(vorn)
areas = zeros(num_polygons(vorn))
for i in each_polygon_index(vorn)
areas[i] = get_area(vorn, i)
end
return areas
end
vorn_areas ≈ direct_polygon_areas(vorn)trueMoreover, note that the following is false:
vorn_areas ≈ [get_area(vorn, i) for i in each_polygon_index(vorn)]falsebecause each_polygon_index does not return the polygons in a sorted order.
Before we move on, we emphasise that it is not guaranteed that the values of the vertices for a given polygon are the same if you were to recompute the tessellation. The actual coordinates will all be the same, but they just might correspond to different vertex values. The indices of the polygons will be the same, though, as they are derived from the point indices.
Getting polygons adjacent to an edge
Given an edge in the tessellation, you can use get_adjacent to get the polygon that it is a part of (taking care of order). For example,
get_adjacent(vorn, 1, 8)3means that the edge (1, 8) belongs to the third polygon, as we can easily verify:
get_polygon(vorn, 3)6-element Vector{Int64}:
4
5
9
1
8
4see that (1, 8) at the end. The order is important here, since
get_adjacent(vorn, 8, 1)7means that the edge (8, 1) belongs to the seventh polygon:
get_polygon(vorn, 7)6-element Vector{Int64}:
8
1
7
-5
-2
8Just the code
An uncommented version of this example is given below. You can view the source code for this file here.
using DelaunayTriangulation
using CairoMakie
using StableRNGs
points = [
(-3.0, 7.0), (1.0, 6.0), (-1.0, 3.0),
(-2.0, 4.0), (3.0, -2.0), (5.0, 5.0),
(-4.0, -3.0), (3.0, 8.0)
]
rng = StableRNG(123)
tri = triangulate(points; rng)
vorn = voronoi(tri)
fig, ax, sc = voronoiplot(vorn, markersize=13, colormap=:matter, strokecolor=:white, strokewidth=5)
triplot!(ax, tri)
fig
DelaunayTriangulation.get_generators(vorn)
each_generator(vorn)
get_generator(vorn, 3)
function average_generator(vorn)
cx, cy = 0.0, 0.0
for i in each_generator(vorn)
p = get_generator(vorn, i)
px, py = getxy(p)
cx += px
cy += py
end
n = num_polygons(vorn) # same as DelaunayTriangulation.num_generators(vorn)
cx /= n
cy /= n
return cx, cy
end
cx, cy = average_generator(vorn)
DelaunayTriangulation.get_polygons(vorn)
DelaunayTriangulation.get_polygon_points(vorn)
get_polygon(vorn, 1)
get_polygon_point(vorn, 1)
1 ∈ DelaunayTriangulation.get_unbounded_polygons(vorn)
get_area(vorn, 1) == Inf
each_polygon(vorn)
each_polygon_index(vorn)
each_polygon_vertex(vorn)
num_polygons(vorn)
num_polygon_vertices(vorn)
function get_polygon_area(vorn, i)
i ∈ DelaunayTriangulation.get_unbounded_polygons(vorn) && return Inf
area = 0.0
vertices = get_polygon(vorn, i)
vⱼ = vertices[begin]
pⱼ = get_polygon_point(vorn, vⱼ)
xⱼ, yⱼ = getxy(pⱼ)
for j in (firstindex(vertices)+1):lastindex(vertices) # same as 2:length(vertices)
vⱼ₊₁ = vertices[j]
pⱼ₊₁ = get_polygon_point(vorn, vⱼ₊₁)
xⱼ₊₁, yⱼ₊₁ = getxy(pⱼ₊₁)
area += xⱼ * yⱼ₊₁ - xⱼ₊₁ * yⱼ
vⱼ, pⱼ, xⱼ, yⱼ = vⱼ₊₁, pⱼ₊₁, xⱼ₊₁, yⱼ₊₁
end
return area / 2
end
function get_polygon_areas(vorn)
areas = zeros(num_polygons(vorn))
for i in each_polygon_index(vorn)
areas[i] = get_polygon_area(vorn, i)
end
return areas
end
vorn_areas = get_polygon_areas(vorn)
function direct_polygon_areas(vorn)
areas = zeros(num_polygons(vorn))
for i in each_polygon_index(vorn)
areas[i] = get_area(vorn, i)
end
return areas
end
vorn_areas ≈ direct_polygon_areas(vorn)
vorn_areas ≈ [get_area(vorn, i) for i in each_polygon_index(vorn)]
get_adjacent(vorn, 1, 8)
get_polygon(vorn, 3)
get_adjacent(vorn, 8, 1)
get_polygon(vorn, 7)This page was generated using Literate.jl.
