Power Diagrams

In this tutorial, we demonstrate how we can construct power diagrams (also called weighted Voronoi tessellations). These are dual to the weighted Delaunay triangulation and, instead of being based on the Euclidean metric like Voronoi tessellations, the power distance is used to define the Voronoi tiles. The power distance is defined by $\pi(p, q) = d(p, q)^2 - w_p - w_q$, where $d(p, q)$ is the Euclidean distance between points $p$ and $q$, and $w_p$ and $w_q$ are weights associated with $p$ and $q$. See this page for more details. To start with the tutorial, we load in the packages we'll need.

using DelaunayTriangulation
using CairoMakie
using StableRNGs

To build a power diagram, you need to start from a weighted Delaunay triangulation as described in this tutorial.

points = [
    (-3.0, 7.0), (1.0, 6.0), (-1.0, 3.0),
    (-2.0, 4.0), (3.0, -2.0), (5.0, 5.0),
    (-4.0, -3.0), (3.0, 8.0),
]
weights = [0.2, 0.0, -3.0, 2.0, 7.5, 2.3, 0.0, -0.5]
rng = StableRNG(123)
tri = triangulate(points; weights, rng)
pvorn = voronoi(tri; rng)

Voronoi Tessellation.
    Number of generators: 8
    Number of polygon vertices: 9
    Number of polygons: 8
    Weighted: true

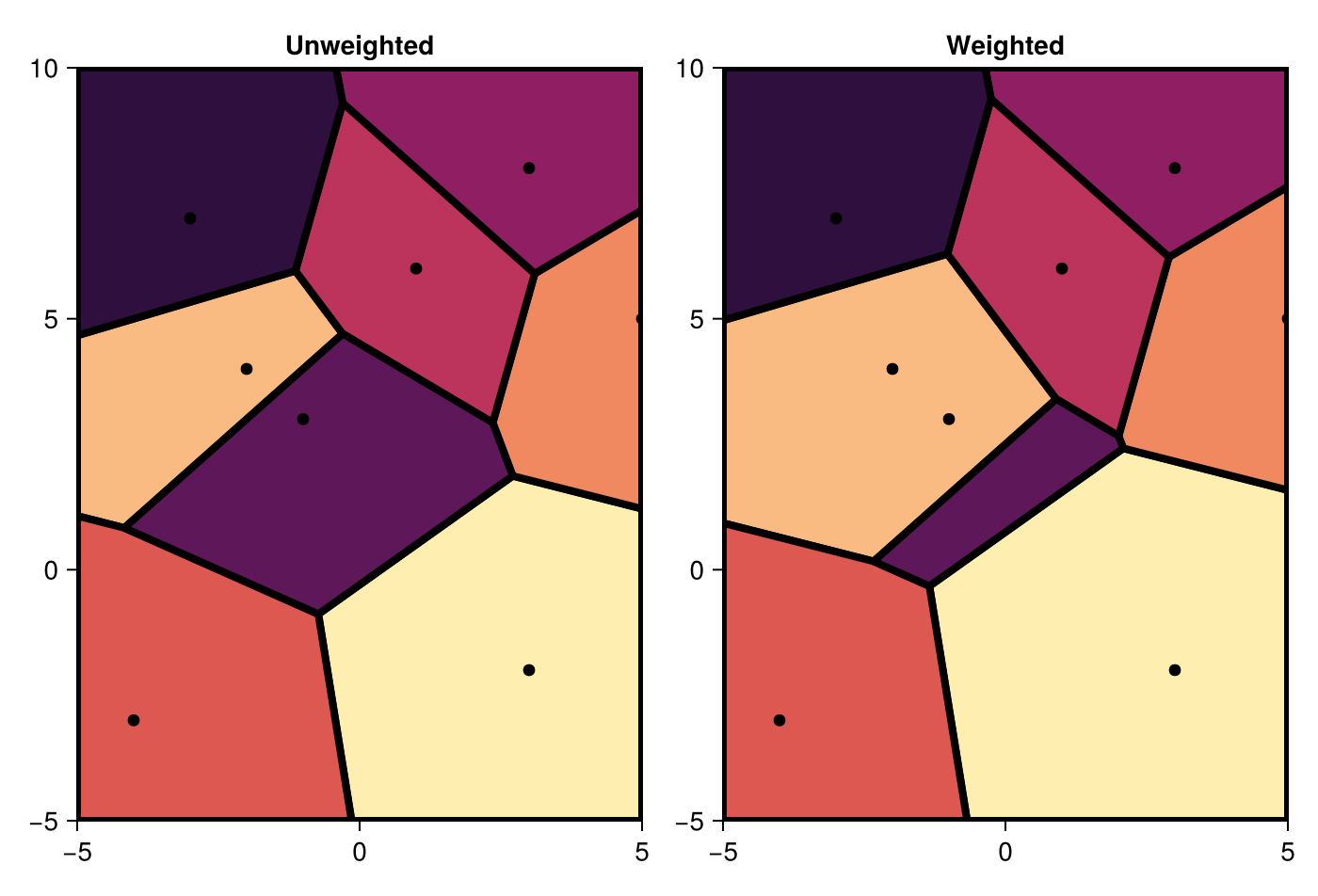

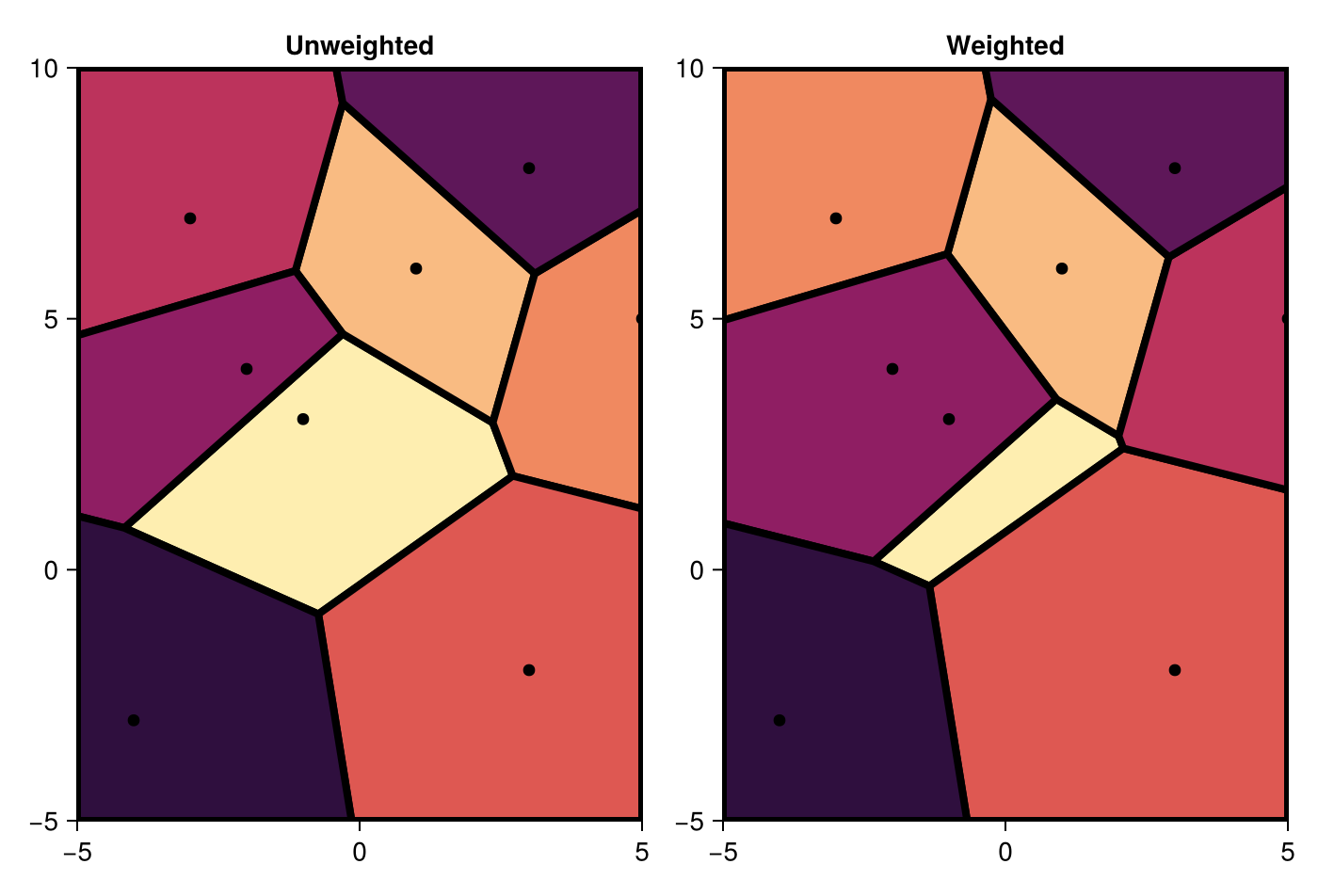

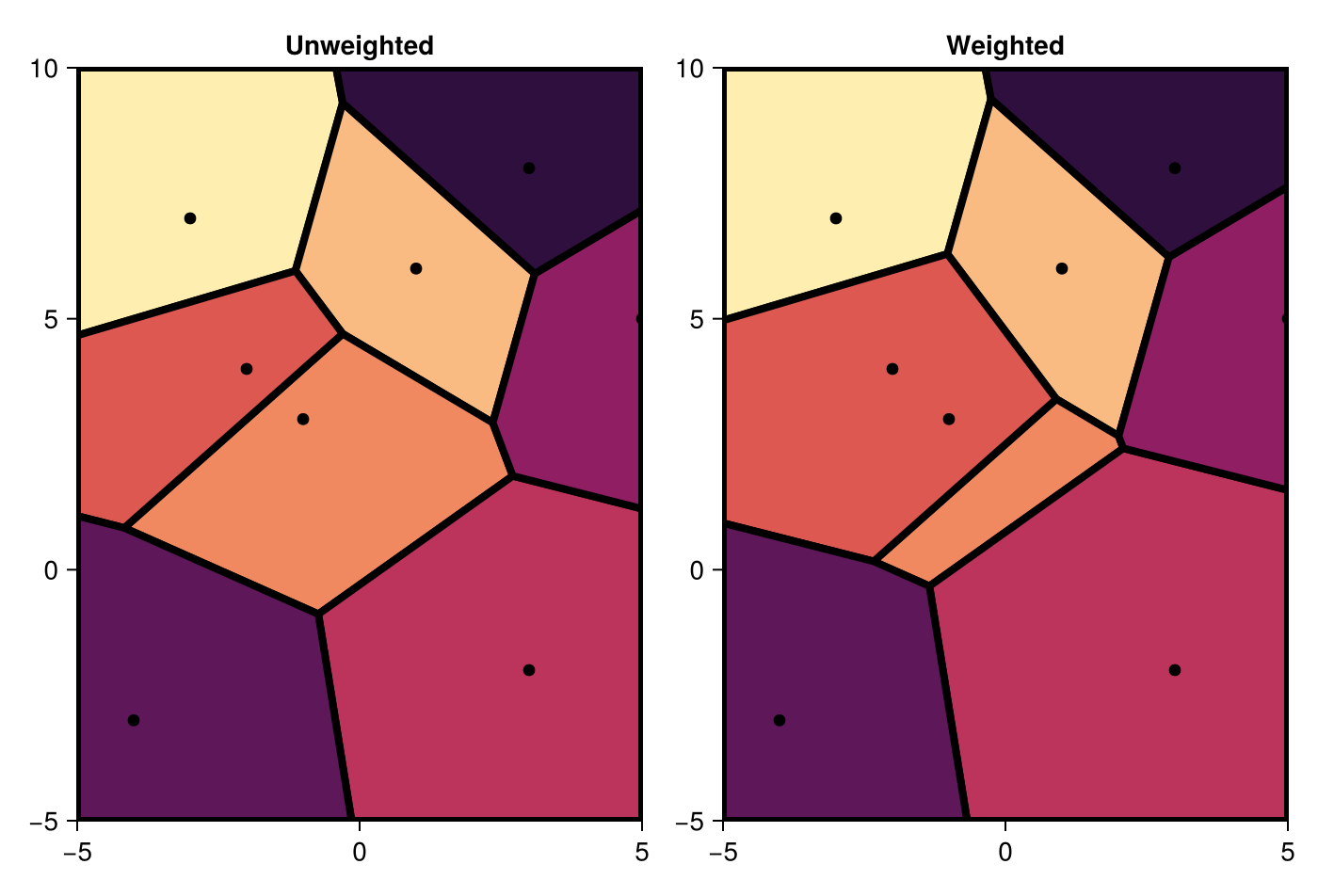

Let's compare the power diagram to its unweighted counterpart.

vorn = voronoi(triangulate(points; rng); rng)
fig = Figure()
ax1 = Axis(fig[1, 1], title="Unweighted", width=300, height=400)
ax2 = Axis(fig[1, 2], title="Weighted", width=300, height=400)
voronoiplot!(ax1, vorn, show_generators=true, colormap=:matter, strokewidth=4, clip=(-5, 5, -5, 10))
voronoiplot!(ax2, pvorn, show_generators=true, colormap=:matter, strokewidth=4, clip=(-5, 5, -5, 10))
resize_to_layout!(fig)
fig

Notice that, unlike the unweighted tessellation, the generators in the power diagram don't actually have to live in their own tile, and more than one generator may inhibit a tile. This is because the power diagram is based on the power distance, not the Euclidean distance.

We can easily look at the affect of the weights on the power diagram.

A, B, C, D, E, F, G, H,
I, J, K, L, M, N = (-1.0, 3.0), (1.0, 3.0),
(2.0, 2.0), (2.0, 0.0), (1.0, -1.0), (-1.0, -1.0),
(-2.0, 0.0), (-2.0, 2.0), (-1.0, 2.0),
(0.0, 1.5), (1.0, 2.5), (-1.0, 0.5),
(1.0, 0.0), (1.5, 1.0)
points = [A, B, C, D, E, F, G, H, I, J, K, L, M, N]
w = Observable(-10.0)
weights = @lift (wts = zeros(length(points)); wts[10] = $w; wts)
tri = @lift tri = triangulate(points; weights=$weights)
vorn = @lift voronoi($tri)
weight_itr_base = LinRange(-10, 10, 30 * 5)
weight_itr = vcat(weight_itr_base, reverse(weight_itr_base))
title_obs = lift(w -> L"w_{10} = %$(round(w, sigdigits = 4))", w)
fig, ax, sc = voronoiplot(vorn,
    axis=(title=title_obs, titlealign=:left),
    figure=(fontsize=24,),
    clip = (-4, 4, -4, 4),
    color = [:red, :blue, :green, :purple, :orange, :yellow, :cyan, :white, :black, :magenta, :gray, :brown, :pink, :lightblue]
)
scatter!(ax, [J], color=:red, markersize=13)
record(fig, "varying_weight_power.mp4", weight_itr; framerate=30) do _w
    w[] = _w
end;

See that, for small weights, the Voronoi tile of the 10th point isn't even present. As the weight increases, the tile grows and eventually dominates the tessellation.

We also note that, just like standard Voronoi tessellations, we can also apply clipping and smoothing to power diagrams. These can be done in exactly the same manner.

Just the code

An uncommented version of this example is given below. You can view the source code for this file here.

using DelaunayTriangulation
using CairoMakie
using StableRNGs

points = [
    (-3.0, 7.0), (1.0, 6.0), (-1.0, 3.0),
    (-2.0, 4.0), (3.0, -2.0), (5.0, 5.0),
    (-4.0, -3.0), (3.0, 8.0),
]
weights = [0.2, 0.0, -3.0, 2.0, 7.5, 2.3, 0.0, -0.5]
rng = StableRNG(123)
tri = triangulate(points; weights, rng)
pvorn = voronoi(tri; rng)

vorn = voronoi(triangulate(points; rng); rng)
fig = Figure()
ax1 = Axis(fig[1, 1], title="Unweighted", width=300, height=400)
ax2 = Axis(fig[1, 2], title="Weighted", width=300, height=400)
voronoiplot!(ax1, vorn, show_generators=true, colormap=:matter, strokewidth=4, clip=(-5, 5, -5, 10))
voronoiplot!(ax2, pvorn, show_generators=true, colormap=:matter, strokewidth=4, clip=(-5, 5, -5, 10))
resize_to_layout!(fig)
fig

A, B, C, D, E, F, G, H,
I, J, K, L, M, N = (-1.0, 3.0), (1.0, 3.0),
(2.0, 2.0), (2.0, 0.0), (1.0, -1.0), (-1.0, -1.0),
(-2.0, 0.0), (-2.0, 2.0), (-1.0, 2.0),
(0.0, 1.5), (1.0, 2.5), (-1.0, 0.5),
(1.0, 0.0), (1.5, 1.0)
points = [A, B, C, D, E, F, G, H, I, J, K, L, M, N]
w = Observable(-10.0)
weights = @lift (wts = zeros(length(points)); wts[10] = $w; wts)
tri = @lift tri = triangulate(points; weights=$weights)
vorn = @lift voronoi($tri)
weight_itr_base = LinRange(-10, 10, 30 * 5)
weight_itr = vcat(weight_itr_base, reverse(weight_itr_base))
title_obs = lift(w -> L"w_{10} = %$(round(w, sigdigits = 4))", w)
fig, ax, sc = voronoiplot(vorn,
    axis=(title=title_obs, titlealign=:left),
    figure=(fontsize=24,),
    clip = (-4, 4, -4, 4),
    color = [:red, :blue, :green, :purple, :orange, :yellow, :cyan, :white, :black, :magenta, :gray, :brown, :pink, :lightblue]
)
scatter!(ax, [J], color=:red, markersize=13)
record(fig, "varying_weight_power.mp4", weight_itr; framerate=30) do _w
    w[] = _w
end;
