Constrained Triangulations

Domain with Interior Holes

We now consider triangulating a domain which has not only a boundary, but also an interior boundary. To start, let us load the packages.

using DelaunayTriangulation
using CairoMakie
using StableRNGs

Let us now define what we will be triangulating. The boundary will be made up of a boundary and three interior holes. To represent the boundaries for this case, we use a vector of vector of vectors. The triple-nested vector structure is necessary to allow for individual boundaries to be segmented (as in the previous tutorial). Moreover, while the outer boundary must be counter-clockwise, the interior boundaries must be clockwise so that the orientations of the interiors relative to the boundaries are consistent. Note again that neighbouring segments must connect.

curve_1 = [
    [ # first segment
        (0.0, 0.0), (4.0, 0.0), (8.0, 0.0), (12.0, 0.0), (12.0, 4.0),
        (12.0, 8.0), (14.0, 10.0), (16.0, 12.0), (16.0, 16.0),
        (14.0, 18.0), (12.0, 20.0), (12.0, 24.0), (12.0, 28.0)
    ],
    [ # second segment
        (12.0, 28.0), (8.0, 28.0), (4.0, 28.0), (0.0, 28.0), (-2.0, 26.0), (0.0, 22.0),
        (0.0, 18.0), (0.0, 10.0), (0.0, 8.0), (0.0, 4.0), (-4.0, 4.0),
        (-4.0, 0.0), (0.0, 0.0),
    ]
] # outer: counter-clockwise
curve_2 = [
    [ # first segment
        (4.0, 26.0), (8.0, 26.0), (10.0, 26.0), (10.0, 24.0),
        (10.0, 22.0), (10.0, 20.0)
    ],
    [ # second segment
        (10.0, 20.0), (8.0, 20.0), (6.0, 20.0),
        (4.0, 20.0), (4.0, 22.0), (4.0, 24.0), (4.0, 26.0)
    ]
] # inner: clockwise
curve_3 = [[(4.0, 16.0), (12.0, 16.0), (12.0, 14.0), (4.0, 14.0), (4.0, 16.0)]] # inner: clockwise
curve_4 = [[(4.0, 8.0), (10.0, 8.0), (8.0, 6.0), (6.0, 6.0), (4.0, 8.0)]] # inner: clockwise
curves = [curve_1, curve_2, curve_3, curve_4]
points = [
    (2.0, 26.0), (2.0, 24.0), (6.0, 24.0), (6.0, 22.0), (8.0, 24.0), (8.0, 22.0),
    (2.0, 22.0), (0.0, 26.0), (10.0, 18.0), (8.0, 18.0), (4.0, 18.0), (2.0, 16.0),
    (2.0, 12.0), (6.0, 12.0), (2.0, 8.0), (2.0, 4.0), (4.0, 2.0),
    (-2.0, 2.0), (4.0, 6.0), (10.0, 2.0), (10.0, 6.0), (8.0, 10.0), (4.0, 10.0),
    (10.0, 12.0), (12.0, 12.0), (14.0, 26.0), (16.0, 24.0), (18.0, 28.0),
    (16.0, 20.0), (18.0, 12.0), (16.0, 8.0), (14.0, 4.0), (14.0, -2.0),
    (6.0, -2.0), (2.0, -4.0), (-4.0, -2.0), (-2.0, 8.0), (-2.0, 16.0),
    (-4.0, 22.0), (-4.0, 26.0), (-2.0, 28.0), (6.0, 15.0), (7.0, 15.0),
    (8.0, 15.0), (9.0, 15.0), (10.0, 15.0), (6.2, 7.8),
    (5.6, 7.8), (5.6, 7.6), (5.6, 7.4), (6.2, 7.4), (6.0, 7.6),
    (7.0, 7.8), (7.0, 7.4)]
boundary_nodes, points = convert_boundary_points_to_indices(curves; existing_points=points);

Notice that curve_1 and curve_2 are split up into multiple segments. For curve_3 and curve_4, note that we have to wrap the entire vector in a vector, essentially treating them as a single segment.

Now let us triangulate.

rng = StableRNG(123) # the triangulation is not unique due to cocircular points
tri = triangulate(points; boundary_nodes, rng)
fig, ax, sc = triplot(tri, show_constrained_edges=true, show_convex_hull=true)
fig

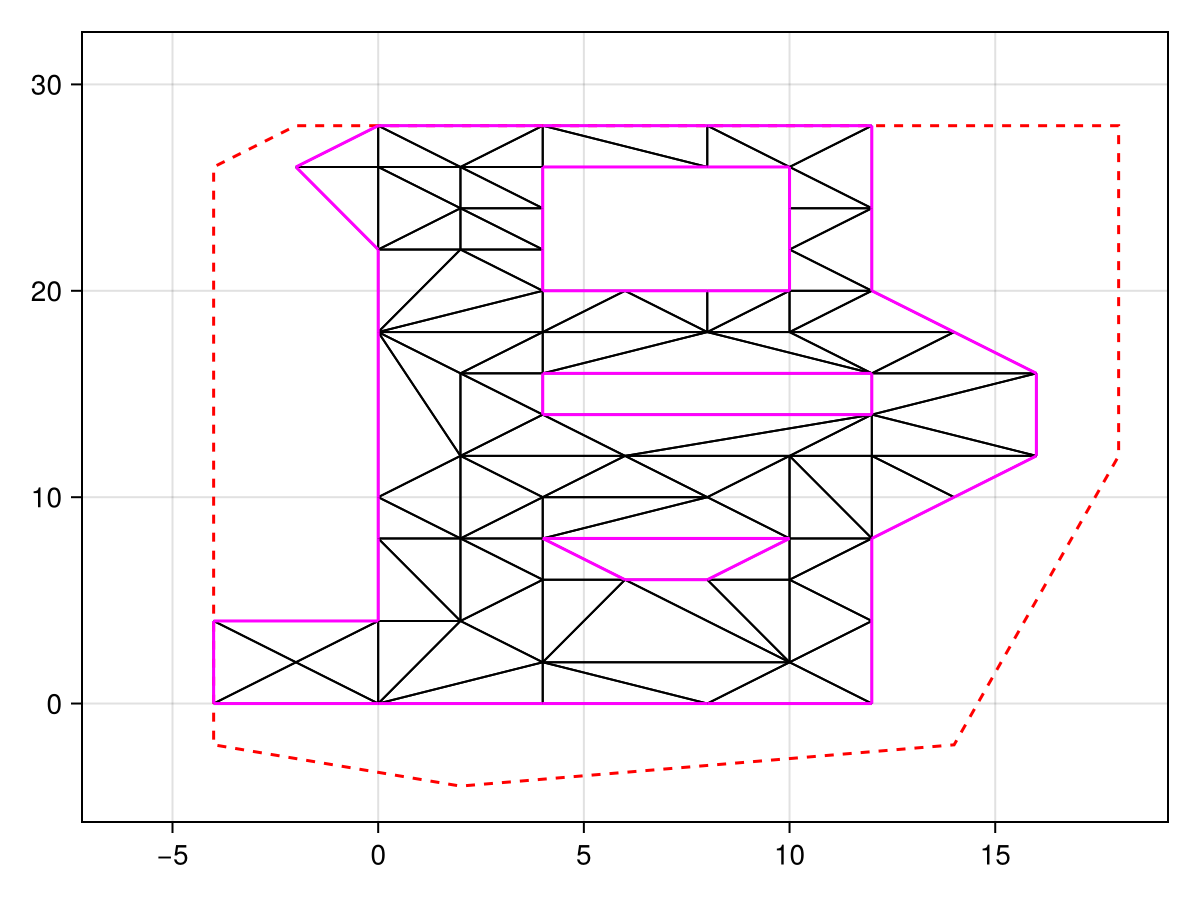

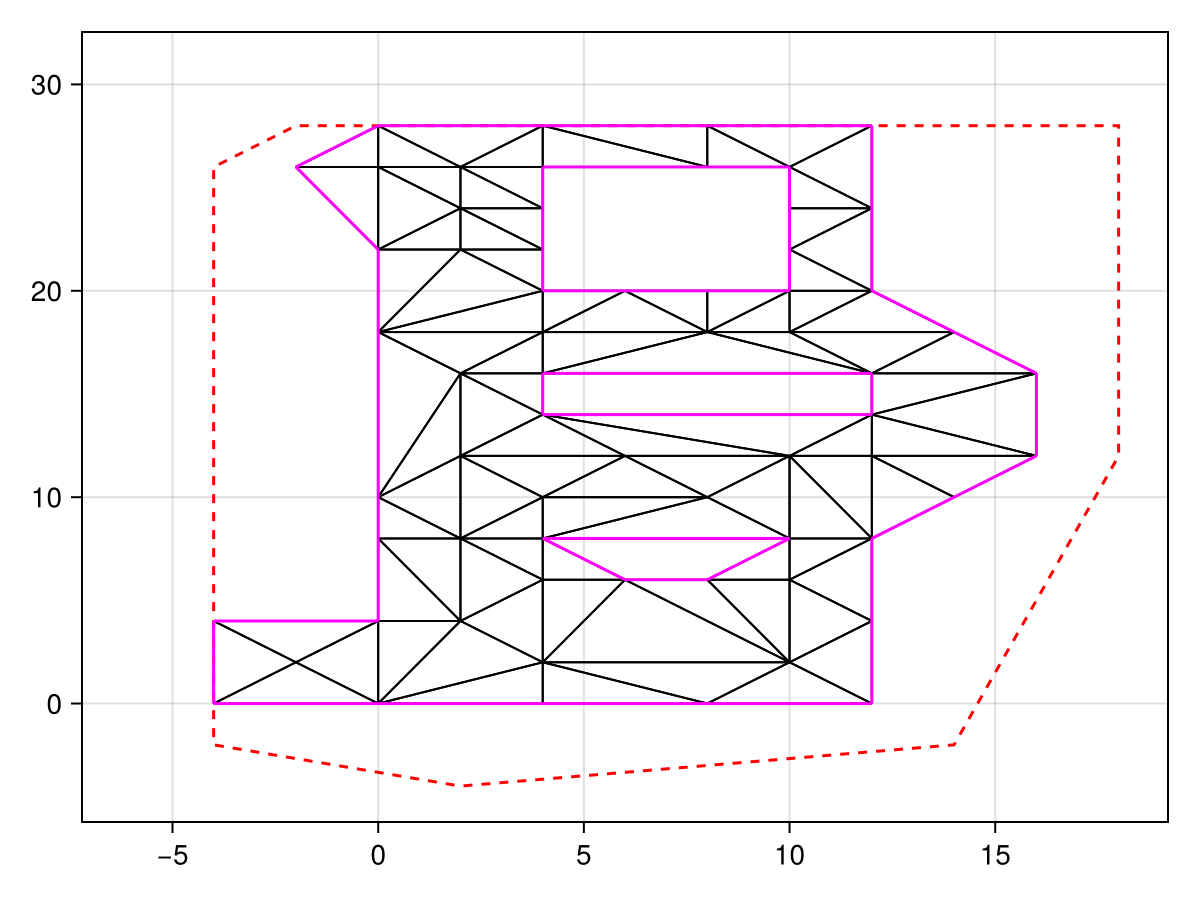

Example block output

Like before, we examine individual segments by referring to them by their ghost vertices, which are still in the order -1, -2, and so on in the order of the segments provided in boundary_nodes. This is a lot more cumbersome to keep track of than the previous tutorials since there are many more ghost vertices. This is where the boundary fields become much more useful. For instance, the boundary_edge_map in this case is given by:

get_boundary_edge_map(tri)
Dict{Tuple{Int64, Int64}, Tuple{Tuple{Int64, Int64}, Int64}} with 43 entries:
  (61, 62) => ((1, 1), 7)
  (58, 59) => ((1, 1), 4)
  (93, 90) => ((3, 1), 4)
  (56, 57) => ((1, 1), 2)
  (55, 56) => ((1, 1), 1)
  (96, 97) => ((4, 1), 3)
  (92, 93) => ((3, 1), 3)
  (75, 76) => ((1, 2), 9)
  (97, 94) => ((4, 1), 4)
  (71, 72) => ((1, 2), 5)
  (67, 68) => ((1, 2), 1)
  (77, 78) => ((1, 2), 11)
  (60, 61) => ((1, 1), 6)
  (88, 89) => ((2, 2), 5)
  (66, 67) => ((1, 1), 12)
  (69, 70) => ((1, 2), 3)
  (76, 77) => ((1, 2), 10)
  (73, 74) => ((1, 2), 7)
  (91, 92) => ((3, 1), 2)
  ⋮        => ⋮

The Tuples in the values are now of the form ((I, J), K), with I the curve index (with 1 being the outer boundary), J the segment index, and K the position of the edge within the segment. To look at the ghost vertices directly, another useful field is ghost_vertex_ranges:

get_ghost_vertex_ranges(tri)
Dict{Int64, UnitRange{Int64}} with 6 entries:
  -5 => -5:-5
  -1 => -2:-1
  -3 => -4:-3
  -2 => -2:-1
  -4 => -4:-3
  -6 => -6:-6

This field maps a ghost vertex to the complete set of ghost vertices that might be found on the curve corresponding to that ghost vertex. For example, -3 => -4:-3 means that the ghost vertex -3 is part of a curve that, in addition to itself, contains the ghost vertex -4. If you want all the ghost vertex, you can use

DelaunayTriangulation.all_ghost_vertices(tri)
KeySet for a Dict{Int64, UnitRange{Int64}} with 6 entries. Keys:
  -5
  -1
  -3
  -2
  -4
  -6

which is just keys(get_ghost_vertex_ranges(tri)). If you just want to find what curve and what segment a ghost vertex belongs to, you can look at the ghost_vertex_map:

get_ghost_vertex_map(tri)
Dict{Int64, Tuple{Int64, Int64}} with 6 entries:
  -5 => (3, 1)
  -1 => (1, 1)
  -3 => (2, 1)
  -2 => (1, 2)
  -4 => (2, 2)
  -6 => (4, 1)

So that, for example, -3 => (2, 1) means that the ghost vertex -3 corresponds to the first part (from the second Tuple element) of the second curve (from the first Tuple element).

To get all the boundary nodes, you can use

DelaunayTriangulation.get_all_boundary_nodes(tri)
Set{Int64} with 43 elements:
  56
  55
  60
  67
  73
  64
  90
  63
  86
  91
  62
  58
  75
  92
  69
  68
  82
  85
  84
  ⋮

To give an example of how we can work with this boundary, let us compute the area of the triangulation (a more efficient approach is with get_area(tri), but this is just for demonstration). For this, the order of the boundary edges is appropriate, so we must iterate in a way that respects the ordering.

function get_triangulation_area(tri)
    A = 0.0
    nc = DelaunayTriangulation.num_curves(tri)
    for curve_index in 1:nc
        bn = get_boundary_nodes(tri, curve_index)
        ns = DelaunayTriangulation.num_sections(bn)
        for segment_index in 1:ns
            bnn = get_boundary_nodes(bn, segment_index)
            ne = num_boundary_edges(bnn)
            for i in 1:ne
                vᵢ = get_boundary_nodes(bnn, i)
                vᵢ₊₁ = get_boundary_nodes(bnn, i+1)
                pᵢ, pᵢ₊₁ = get_point(tri, vᵢ, vᵢ₊₁)
                xᵢ, yᵢ = getxy(pᵢ)
                xᵢ₊₁, yᵢ₊₁ = getxy(pᵢ₊₁)
                A += (yᵢ + yᵢ₊₁)*(xᵢ - xᵢ₊₁)
            end
        end
    end
    return A/2
end
A = get_triangulation_area(tri)
330.0

This is of course quite a complicated example since we need to take care of the order. If we don't care about order, then the complexity of the code for iterating over a boundary is much simpler. For example, here we compute the perimeter of the boundary, and we also consider the length of each curve and of each segment.

function get_perimeters(tri)
    total_perimeter = 0.0
    nc = DelaunayTriangulation.num_curves(tri)
    curve_perimeters = zeros(nc) # curve_index => perimeter
    segment_perimeters = Dict{NTuple{2,Int},Float64}() # (curve_index, segment_index) => perimeter
    for (e, ((curve_index, section_index), node_index)) in get_boundary_edge_map(tri)
        u, v = edge_vertices(e)
        p, q = get_point(tri, u, v)
        ℓ = sqrt((getx(p) - getx(q))^2 + (gety(p) - gety(q))^2)
        total_perimeter += ℓ
        curve_perimeters[curve_index] += ℓ
        if haskey(segment_perimeters, (curve_index, section_index))
            segment_perimeters[(curve_index, section_index)] += ℓ
        else
            segment_perimeters[(curve_index, section_index)] = ℓ
        end
    end
    return total_perimeter, curve_perimeters, segment_perimeters
end
ℓ, cℓ, sℓ = get_perimeters(tri)
(150.2711258282229, [92.61427157873052, 24.0, 20.0, 13.65685424949238], Dict((1, 2) => 49.30056307974577, (3, 1) => 20.0, (1, 1) => 43.31370849898476, (4, 1) => 13.65685424949238, (2, 2) => 12.0, (2, 1) => 12.0))

Just the code

An uncommented version of this example is given below. You can view the source code for this file here.

using DelaunayTriangulation
using CairoMakie
using StableRNGs

curve_1 = [
    [ # first segment
        (0.0, 0.0), (4.0, 0.0), (8.0, 0.0), (12.0, 0.0), (12.0, 4.0),
        (12.0, 8.0), (14.0, 10.0), (16.0, 12.0), (16.0, 16.0),
        (14.0, 18.0), (12.0, 20.0), (12.0, 24.0), (12.0, 28.0)
    ],
    [ # second segment
        (12.0, 28.0), (8.0, 28.0), (4.0, 28.0), (0.0, 28.0), (-2.0, 26.0), (0.0, 22.0),
        (0.0, 18.0), (0.0, 10.0), (0.0, 8.0), (0.0, 4.0), (-4.0, 4.0),
        (-4.0, 0.0), (0.0, 0.0),
    ]
] # outer: counter-clockwise
curve_2 = [
    [ # first segment
        (4.0, 26.0), (8.0, 26.0), (10.0, 26.0), (10.0, 24.0),
        (10.0, 22.0), (10.0, 20.0)
    ],
    [ # second segment
        (10.0, 20.0), (8.0, 20.0), (6.0, 20.0),
        (4.0, 20.0), (4.0, 22.0), (4.0, 24.0), (4.0, 26.0)
    ]
] # inner: clockwise
curve_3 = [[(4.0, 16.0), (12.0, 16.0), (12.0, 14.0), (4.0, 14.0), (4.0, 16.0)]] # inner: clockwise
curve_4 = [[(4.0, 8.0), (10.0, 8.0), (8.0, 6.0), (6.0, 6.0), (4.0, 8.0)]] # inner: clockwise
curves = [curve_1, curve_2, curve_3, curve_4]
points = [
    (2.0, 26.0), (2.0, 24.0), (6.0, 24.0), (6.0, 22.0), (8.0, 24.0), (8.0, 22.0),
    (2.0, 22.0), (0.0, 26.0), (10.0, 18.0), (8.0, 18.0), (4.0, 18.0), (2.0, 16.0),
    (2.0, 12.0), (6.0, 12.0), (2.0, 8.0), (2.0, 4.0), (4.0, 2.0),
    (-2.0, 2.0), (4.0, 6.0), (10.0, 2.0), (10.0, 6.0), (8.0, 10.0), (4.0, 10.0),
    (10.0, 12.0), (12.0, 12.0), (14.0, 26.0), (16.0, 24.0), (18.0, 28.0),
    (16.0, 20.0), (18.0, 12.0), (16.0, 8.0), (14.0, 4.0), (14.0, -2.0),
    (6.0, -2.0), (2.0, -4.0), (-4.0, -2.0), (-2.0, 8.0), (-2.0, 16.0),
    (-4.0, 22.0), (-4.0, 26.0), (-2.0, 28.0), (6.0, 15.0), (7.0, 15.0),
    (8.0, 15.0), (9.0, 15.0), (10.0, 15.0), (6.2, 7.8),
    (5.6, 7.8), (5.6, 7.6), (5.6, 7.4), (6.2, 7.4), (6.0, 7.6),
    (7.0, 7.8), (7.0, 7.4)]
boundary_nodes, points = convert_boundary_points_to_indices(curves; existing_points=points);

rng = StableRNG(123) # the triangulation is not unique due to cocircular points
tri = triangulate(points; boundary_nodes, rng)
fig, ax, sc = triplot(tri, show_constrained_edges=true, show_convex_hull=true)
fig

get_boundary_edge_map(tri)

get_ghost_vertex_ranges(tri)

DelaunayTriangulation.all_ghost_vertices(tri)

get_ghost_vertex_map(tri)

DelaunayTriangulation.get_all_boundary_nodes(tri)

function get_triangulation_area(tri)
    A = 0.0
    nc = DelaunayTriangulation.num_curves(tri)
    for curve_index in 1:nc
        bn = get_boundary_nodes(tri, curve_index)
        ns = DelaunayTriangulation.num_sections(bn)
        for segment_index in 1:ns
            bnn = get_boundary_nodes(bn, segment_index)
            ne = num_boundary_edges(bnn)
            for i in 1:ne
                vᵢ = get_boundary_nodes(bnn, i)
                vᵢ₊₁ = get_boundary_nodes(bnn, i+1)
                pᵢ, pᵢ₊₁ = get_point(tri, vᵢ, vᵢ₊₁)
                xᵢ, yᵢ = getxy(pᵢ)
                xᵢ₊₁, yᵢ₊₁ = getxy(pᵢ₊₁)
                A += (yᵢ + yᵢ₊₁)*(xᵢ - xᵢ₊₁)
            end
        end
    end
    return A/2
end
A = get_triangulation_area(tri)

function get_perimeters(tri)
    total_perimeter = 0.0
    nc = DelaunayTriangulation.num_curves(tri)
    curve_perimeters = zeros(nc) # curve_index => perimeter
    segment_perimeters = Dict{NTuple{2,Int},Float64}() # (curve_index, segment_index) => perimeter
    for (e, ((curve_index, section_index), node_index)) in get_boundary_edge_map(tri)
        u, v = edge_vertices(e)
        p, q = get_point(tri, u, v)
        ℓ = sqrt((getx(p) - getx(q))^2 + (gety(p) - gety(q))^2)
        total_perimeter += ℓ
        curve_perimeters[curve_index] += ℓ
        if haskey(segment_perimeters, (curve_index, section_index))
            segment_perimeters[(curve_index, section_index)] += ℓ
        else
            segment_perimeters[(curve_index, section_index)] = ℓ
        end
    end
    return total_perimeter, curve_perimeters, segment_perimeters
end
ℓ, cℓ, sℓ = get_perimeters(tri)
