Pole of Inaccessibility

In this tutorial, we demonstrate how we can compute the pole of inaccessibility of a given polygon, namely the point inside the polygon that is furthest from the boundary, using the algorithm described in this blogpost based on recursively subdividing the polygon using quadtree partitioning. The polygons should be defined the same way the boundary of a triangulation is defined; see the constrained triangulation tutorials. In particular, the algorithm we use works for polygons that may possibly have interior holes, or even nested holes, as well as for multipolygons. We give a simple example. First, let us define our polygon.

using DelaunayTriangulation
using CairoMakie

points = [
    0.0 8.0
    2.0 5.0
    3.0 7.0
    1.81907 8.13422
    3.22963 8.865
    4.24931 7.74335
    4.50423 5.87393
    3.67149 4.3784
    2.73678 2.62795
    5.50691 1.38734
    8.43 2.74691
    9.7046 5.53404
    8.56595 7.79433
    6.71353 9.03494
    4.13034 9.66375
    2.75378 10.3775
    1.0883 10.4965
    -1.138 9.83369
    -2.25965 8.45712
    -2.78649 5.94191
    -1.39292 3.64763
    0.323538 4.97322
    -0.900078 6.6217
    0.98633 9.68074
    0.153591 9.54478
    0.272554 8.66106
    2.90673 8.18521
    2.12497 9.42582
    7.27436 2.7979
    3.0 4.0
    5.33697 1.88019
]'
outer_boundary = [
    # split into segments for demonstration purposes
    [1, 4, 3, 2],
    [2, 9, 10, 11, 8, 7, 12],
    [12, 6, 13, 5, 14, 15, 16, 17, 16],
    [16, 17, 18, 19, 20, 21, 22, 23, 1],
]
inner_1 = [
    [26, 25, 24], [24, 28, 27, 26],
]
inner_2 = [
    [29, 30, 31, 29],
]
boundary_nodes = [outer_boundary, inner_1, inner_2]
fig = Figure()
ax = Axis(fig[1, 1])
for i in eachindex(boundary_nodes)
    lines!(ax, points[:, reduce(vcat, boundary_nodes[i])], color = :red)
end
fig

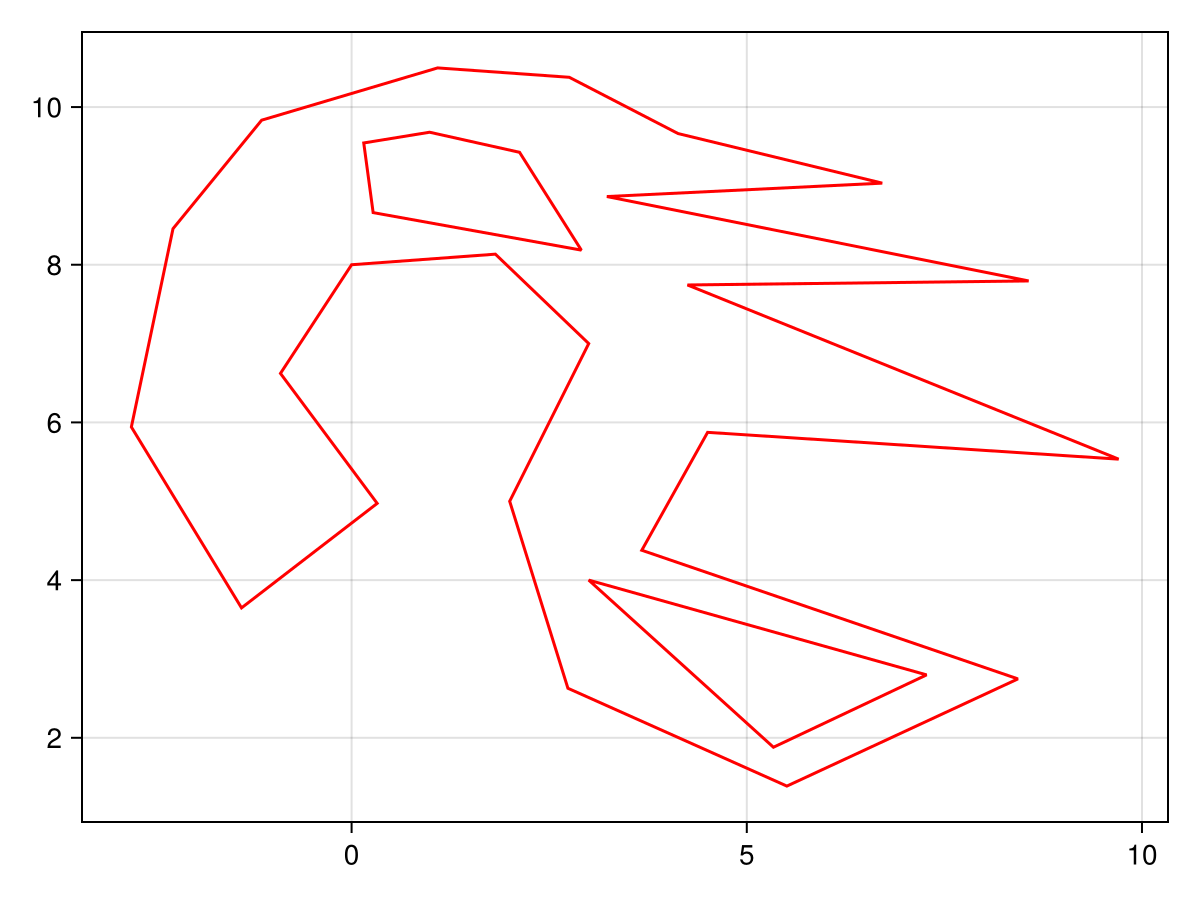

Example block output

To now find the pole of inaccessibility, use DelaunayTriangulation.pole_of_inaccessibility:

pole = DelaunayTriangulation.pole_of_inaccessibility(points, boundary_nodes)
(-1.0785225000000003, 5.3725974999999995)
scatter!(ax, pole, color = :blue, markersize = 16)
fig
Example block output

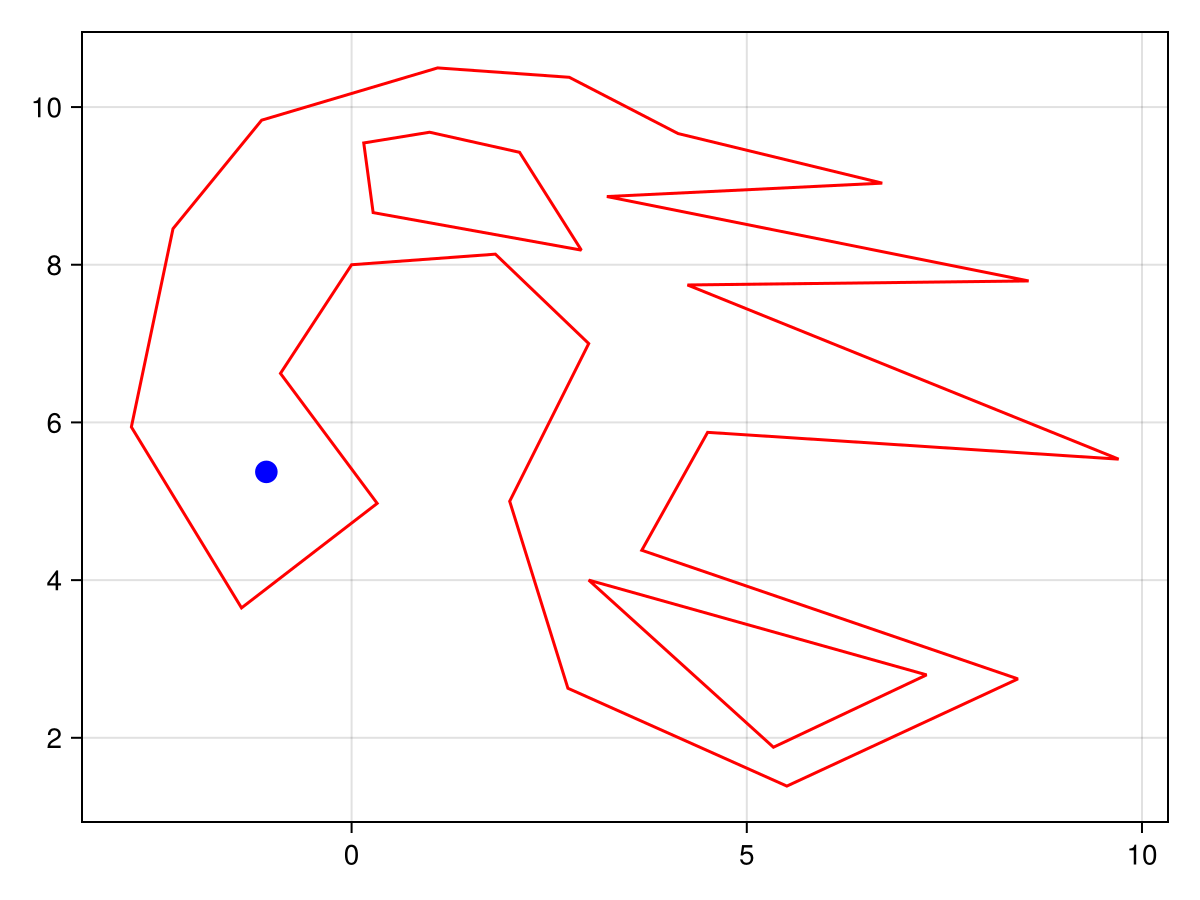

This shows that the point inside the red region that is furthest from the boundary is the blue point shown.

We note that triangulations also store the poles of inaccessibility for each boundary, as these are used to define the orientation of a ghost edge. Here is an example. First, we get the triangulation.

θ = LinRange(0, 2π, 20) |> collect
θ[end] = 0 # need to make sure that 2π gives the exact same coordinates as 0
xy = Vector{Vector{Vector{NTuple{2, Float64}}}}()
cx = 0.0
for i in 1:2
    global cx
    # Make the exterior circle
    push!(xy, [[(cx + cos(θ), sin(θ)) for θ in θ]])
    # Now the interior circle - clockwise
    push!(xy, [[(cx + 0.5cos(θ), 0.5sin(θ)) for θ in reverse(θ)]])
    cx += 3.0
end
boundary_nodes, points = convert_boundary_points_to_indices(xy)
tri = triangulate(points; boundary_nodes = boundary_nodes)
Delaunay Triangulation.
   Number of vertices: 76
   Number of triangles: 76
   Number of edges: 152
   Has boundary nodes: true
   Has ghost triangles: true
   Curve-bounded: false
   Weighted: false
   Constrained: true

To see the poles, called representative points, we use

DelaunayTriangulation.get_representative_point_list(tri)
Dict{Int64, DelaunayTriangulation.RepresentativeCoordinates{Int64, Float64}} with 4 entries:
  4 => RepresentativeCoordinates{Int64, Float64}(3.0, -4.79892e-17, 0)
  2 => RepresentativeCoordinates{Int64, Float64}(-1.7996e-17, -2.02455e-17, 0)
  3 => RepresentativeCoordinates{Int64, Float64}(3.0, -4.49899e-17, 0)
  1 => RepresentativeCoordinates{Int64, Float64}(0.50341, -0.499994, 0)

The keys of the Dict refer to the curve index, and the values contain the coordinates.

fig, ax, sc = triplot(tri, show_ghost_edges = true)
colors = (:red, :blue, :darkgreen, :purple)
for i in eachindex(boundary_nodes)
    lines!(ax, points[reduce(vcat, boundary_nodes[i])], color = colors[i], linewidth = 6)
    coords = DelaunayTriangulation.get_representative_point_coordinates(tri, i)
    scatter!(ax, coords, color = colors[i], markersize = 16)
end
fig
Example block output

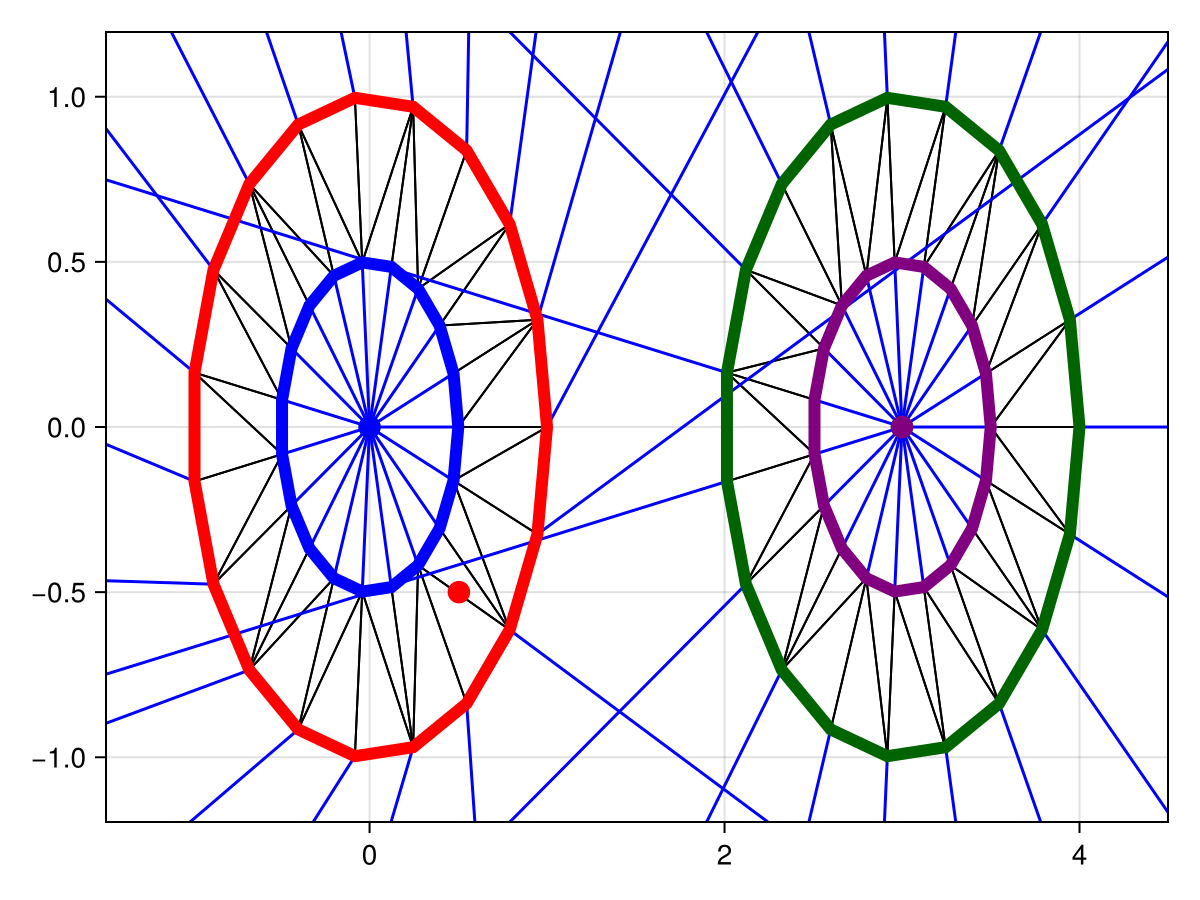

Note that the green and purple boundaries have the same pole of inaccessibility. The first curve, the red curve, is the only one that has the pole of inaccessibility computed with respect to all other boundaries. You can also see that indeed the ghost edges are all oriented relative to the representative points.

Just the code

An uncommented version of this example is given below. You can view the source code for this file here.

using DelaunayTriangulation
using CairoMakie

points = [
    0.0 8.0
    2.0 5.0
    3.0 7.0
    1.81907 8.13422
    3.22963 8.865
    4.24931 7.74335
    4.50423 5.87393
    3.67149 4.3784
    2.73678 2.62795
    5.50691 1.38734
    8.43 2.74691
    9.7046 5.53404
    8.56595 7.79433
    6.71353 9.03494
    4.13034 9.66375
    2.75378 10.3775
    1.0883 10.4965
    -1.138 9.83369
    -2.25965 8.45712
    -2.78649 5.94191
    -1.39292 3.64763
    0.323538 4.97322
    -0.900078 6.6217
    0.98633 9.68074
    0.153591 9.54478
    0.272554 8.66106
    2.90673 8.18521
    2.12497 9.42582
    7.27436 2.7979
    3.0 4.0
    5.33697 1.88019
]'
outer_boundary = [
    # split into segments for demonstration purposes
    [1, 4, 3, 2],
    [2, 9, 10, 11, 8, 7, 12],
    [12, 6, 13, 5, 14, 15, 16, 17, 16],
    [16, 17, 18, 19, 20, 21, 22, 23, 1],
]
inner_1 = [
    [26, 25, 24], [24, 28, 27, 26],
]
inner_2 = [
    [29, 30, 31, 29],
]
boundary_nodes = [outer_boundary, inner_1, inner_2]
fig = Figure()
ax = Axis(fig[1, 1])
for i in eachindex(boundary_nodes)
    lines!(ax, points[:, reduce(vcat, boundary_nodes[i])], color = :red)
end
fig

pole = DelaunayTriangulation.pole_of_inaccessibility(points, boundary_nodes)

scatter!(ax, pole, color = :blue, markersize = 16)
fig

θ = LinRange(0, 2π, 20) |> collect
θ[end] = 0 # need to make sure that 2π gives the exact same coordinates as 0
xy = Vector{Vector{Vector{NTuple{2, Float64}}}}()
cx = 0.0
for i in 1:2
    global cx
    # Make the exterior circle
    push!(xy, [[(cx + cos(θ), sin(θ)) for θ in θ]])
    # Now the interior circle - clockwise
    push!(xy, [[(cx + 0.5cos(θ), 0.5sin(θ)) for θ in reverse(θ)]])
    cx += 3.0
end
boundary_nodes, points = convert_boundary_points_to_indices(xy)
tri = triangulate(points; boundary_nodes = boundary_nodes)

DelaunayTriangulation.get_representative_point_list(tri)

fig, ax, sc = triplot(tri, show_ghost_edges = true)
colors = (:red, :blue, :darkgreen, :purple)
for i in eachindex(boundary_nodes)
    lines!(ax, points[reduce(vcat, boundary_nodes[i])], color = colors[i], linewidth = 6)
    coords = DelaunayTriangulation.get_representative_point_coordinates(tri, i)
    scatter!(ax, coords, color = colors[i], markersize = 16)
end
fig

This page was generated using Literate.jl.
