Point-in-Polygon Testing

This tutorial shows how we can perform point-in-polygon testing, and how we can find a polygon containing a point. First, let us build this ploygon.

using DelaunayTriangulation
using CairoMakie
using StableRNGs

C = (15.7109521325776, 33.244486807457)
D = (14.2705719699703, 32.8530791545746)
E = (14.3, 27.2)
F = (14.1, 27.0)
G = (13.7, 27.2)
H = (13.4, 27.5)
I = (13.1, 27.6)
J = (12.7, 27.4)
K = (12.5, 27.1)
L = (12.7, 26.7)
M = (13.1, 26.5)
N = (13.6, 26.4)
O = (14.0, 26.4)
P = (14.6, 26.5)
Q = (15.1983491346581, 26.8128534095401)
R = (15.6, 27.6)
S = (15.6952958264624, 28.2344688505621)
T = (17.8088971520274, 33.1192363585346)
U = (16.3058917649589, 33.0722674401887)
V = (16.3215480710742, 29.7374742376305)
W = (16.3841732955354, 29.393035503094)
Z = (16.6190178872649, 28.9233463196351)
A1 = (17.0417381523779, 28.5319386667527)
B1 = (17.5114273358368, 28.3753756055997)
C1 = (18.1376795804487, 28.3597192994844)
D1 = (18.7169629067146, 28.5632512789833)
E1 = (19.2805899268653, 28.8920337074045)
F1 = (19.26493362075, 28.4536571361762)
G1 = (20.6426885588962, 28.4223445239456)
H1 = (20.689657477242, 33.1035800524193)
I1 = (19.2805899268653, 33.0722674401887)
J1 = (19.2962462329806, 29.7531305437458)
K1 = (19.0614016412512, 29.393035503094)
L1 = (18.7482755189452, 29.236472441941)
M1 = (18.4508057027546, 29.1425346052493)
N1 = (18.1689921926793, 29.3147539725175)
O1 = (17.7932408459121, 29.6278800948235)
P1 = (22.6466957416542, 35.4207133574833)
Q1 = (21.2219718851621, 34.9979930923702)
R1 = (21.2376281912774, 28.4693134422915)
S1 = (22.6780083538847, 28.4380008300609)
T1 = (24.5724213938357, 33.1975178891111)
U1 = (23.3512295168425, 32.8530791545746)
V1 = (23.3199169046119, 28.4380008300609)
W1 = (24.6663592305274, 28.3753756055997)
Z1 = (15.1942940307729, 35.4363696635986)
A2 = (14.7246048473139, 35.3737444391374)
B2 = (14.3645098066621, 35.1858687657538)
C2 = (14.1766341332786, 34.8570863373326)
D2 = (14.1140089088174, 34.3247719294125)
E2 = (14.2705719699703, 33.8394264398383)
F2 = (14.7246048473139, 33.6202381542241)
G2 = (15.4604512347329, 33.6045818481088)
H2 = (16.0, 34.0)
I2 = (15.9771093365377, 34.6848669700643)
J2 = (15.6170142958859, 35.2328376840997)
K2 = (24.1653574348379, 35.4520259697138)
L2 = (23.7739497819555, 35.4363696635986)
M2 = (23.4608236596496, 35.2641502963303)
N2 = (23.272947986266, 34.9040552556785)
O2 = (23.1320412312284, 34.5909291333725)
P2 = (23.1163849251131, 34.2151777866054)
Q2 = (23.2886042923813, 33.8081138276077)
R2 = (23.8209187003014, 33.6045818481088)
S2 = (24.3062641898756, 33.5576129297629)
T2 = (24.7602970672192, 33.8550827459536)
U2 = (25.010797965064, 34.4656786844502)
V2 = (24.8385785977957, 34.9666804801397)
W2 = (24.5254524754898, 35.2641502963303)
Z2 = (25.3708930057158, 37.4716894585871)
A3 = (24.7916096794498, 37.3464390096648)
B3 = (24.4471709449133, 36.9550313567823)
C3 = (24.3062641898756, 36.5636237038999)
D3 = (24.4941398632592, 35.9999966837492)
E3 = (25.0264542711793, 35.5929327247515)
F3 = (25.5587686790994, 35.5929327247515)
F3 = (25.5587686790994, 35.5929327247515)
G3 = (26.0, 36.0)
H3 = (26.1380520053653, 36.5792800100152)
I3 = (26.0, 37.0)
J3 = (25.7466443524829, 37.2838137852036)
K3 = (26.3885529032101, 35.4676822758291)
L3 = (25.9814889442124, 35.3580881330221)
M3 = (25.6840191280217, 35.1858687657538)
N3 = (25.5274560668688, 34.9040552556785)
O3 = (25.4961434546382, 34.5596165211419)
P3 = (25.5274560668688, 34.246490398836)
Q3 = (25.6683628219064, 33.8394264398383)
R3 = (26.0284578625583, 33.6358944603394)
S3 = (26.5451159643631, 33.6202381542241)
T3 = (27.0, 34.0)
U3 = (27.280962351782, 34.5596165211419)
V3 = (27.0304614539373, 35.2171813779844)
W3 = (26.1693646175959, 33.087923746304)
Z3 = (26.0, 33.0)
A4 = (25.5274560668688, 32.7278287056522)
B4 = (25.2612988629087, 32.4147025833463)
C4 = (25.1830173323322, 32.0702638488098)
D4 = (25.2299862506781, 31.7727940326191)
E4 = (25.6527065157911, 31.5222931347744)
F4 = (26.2946150665183, 31.7258251142732)
G4 = (26.5607722704784, 32.5086404200381)
H4 = (27.1557119028596, 32.7434850117675)
I4 = (27.6097447802033, 32.4929841139228)
J4 = (27.6410573924338, 32.1015764610403)
K4 = (27.7193389230103, 31.6005746653509)
L4 = (27.437525412935, 31.4283552980826)
M4 = (26.9834925355914, 31.2561359308143)
N4 = (26.5764285765937, 31.0995728696614)
O4 = (26.0441141686736, 30.7864467473554)
P4 = (25.6527065157911, 30.5672584617413)
Q4 = (25.3239240873699, 30.1915071149741)
R4 = (25.1673610262169, 29.8783809926682)
S4 = (25.1047358017558, 29.6122237887082)
T4 = (25.0890794956405, 29.1895035235952)
U4 = (25.2926114751393, 28.8294084829433)
V4 = (25.6840191280217, 28.5632512789833)
W4 = (26.1537083114806, 28.3753756055997)
Z4 = (26.8269294744384, 28.391031911715)
A5 = (27.4844943312809, 28.6102201973292)
B5 = (27.7342002330051, 28.7239579596219)
C5 = (27.7264126450755, 28.4202565942047)
D5 = (29.1825559185446, 28.3922538389457)
E5 = (29.1545531632856, 32.2146299318021)
F5 = (29.000538009361, 32.5786657501693)
G5 = (28.6785063238822, 32.9006974356481)
H5 = (28.3144705055149, 33.0827153448317)
I5 = (27.9084305542591, 33.2367304987563)
J5 = (27.3343740714492, 33.3207387645334)
K5 = (26.8303244767868, 33.2367304987563)
L5 = (27.6564057569279, 30.786489413592)
M5 = (27.6984098898165, 30.3944508399657)
N5 = (27.6984098898165, 29.7363860913787)
O5 = (27.5863988687804, 29.4143544059)
P5 = (27.2643671833016, 29.2043337414573)
Q5 = (26.9843396307114, 29.1763309861983)
R5 = (26.6903107004917, 29.3163447624934)
S5 = (26.5782996794556, 29.7503874690082)
T5 = (26.7603175886393, 30.3384453294476)
U5 = (27.3203726938197, 30.7024811478149)
J_curve = [[C, D, E, F, G, H, I, J, K, L, M, N, O, P, Q, R, S, C]]
U_curve = [[T, U, V, W, Z, A1, B1, C1, D1, E1, F1, G1, H1, I1, J1, K1, L1, M1, N1, O1, T]]
L_curve = [[P1, Q1, R1, S1, P1]]
I_curve = [[T1, U1, V1, W1, T1]]
A_curve_outline = [
    [
        K5, W3, Z3, A4, B4, C4, D4, E4, F4, G4, H4, I4, J4, K4, L4, M4, N4,
        O4, P4, Q4, R4, S4, T4, U4, V4, W4, Z4, A5, B5, C5, D5, E5, F5, G5,
        H5, I5, J5, K5,
    ],
]
A_curve_hole = [[L5, M5, N5, O5, P5, Q5, R5, S5, T5, U5, L5]]
dot_1 = [[Z1, A2, B2, C2, D2, E2, F2, G2, H2, I2, J2, Z1]]
dot_2 = [[Z2, A3, B3, C3, D3, E3, F3, G3, H3, I3, J3, Z2]]
dot_3 = [[K2, L2, M2, N2, O2, P2, Q2, R2, S2, T2, U2, V2, W2, K2]]
dot_4 = [[K3, L3, M3, N3, O3, P3, Q3, R3, S3, T3, U3, V3, K3]]
curves = [J_curve, U_curve, L_curve, I_curve, A_curve_outline, A_curve_hole, dot_1, dot_2, dot_3, dot_4]
nodes, points = convert_boundary_points_to_indices(curves)
xmin, xmax, ymin, ymax = DelaunayTriangulation.polygon_bounds(points, nodes, Val(true)) # Val(true) => check all parts of the polygon
rng = StableRNG(123)
query_points = [((xmax - xmin) * rand(rng) + xmin, (ymax - ymin) * rand(rng) + ymin) for _ in 1:1000]

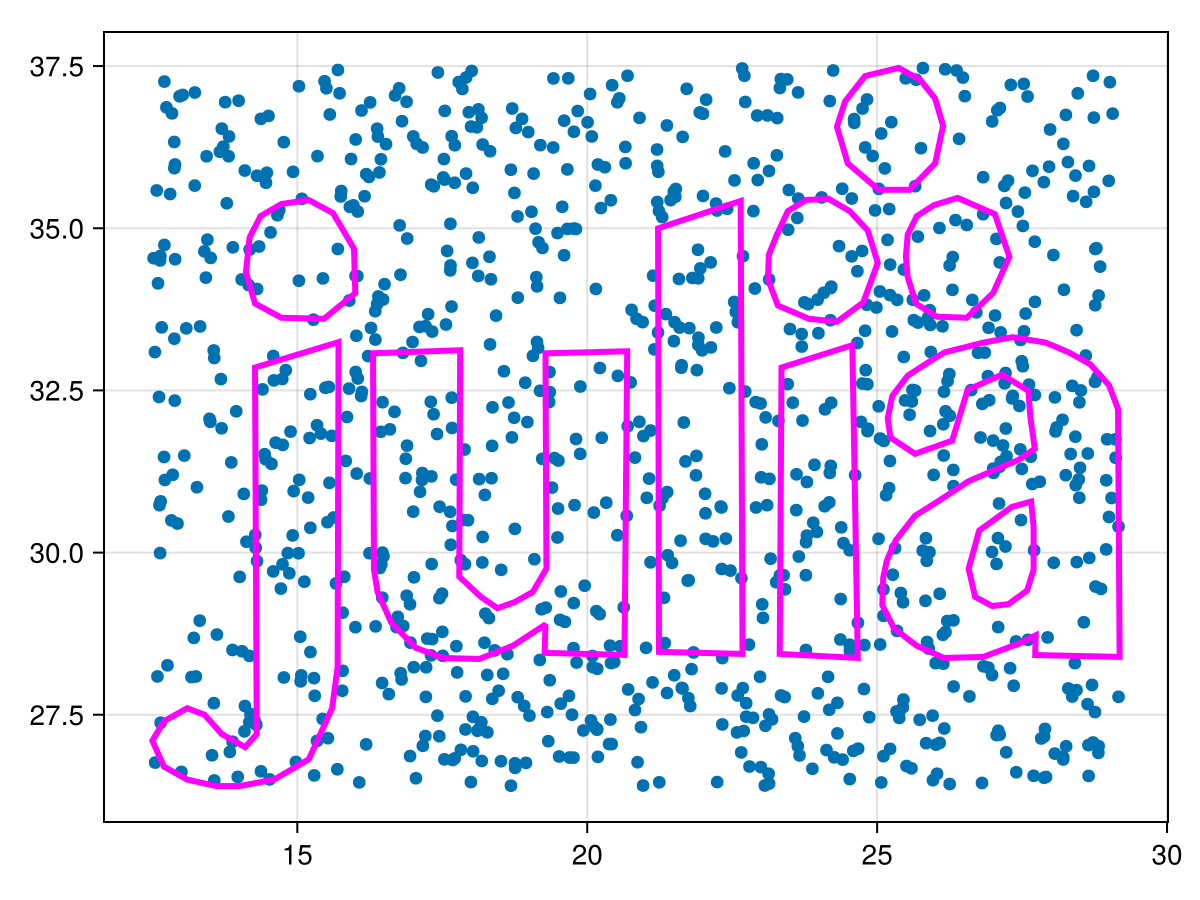

fig = Figure()
ax = Axis(fig[1, 1])
scatter!(ax, query_points)
for nodes in nodes
    lines!(ax, points[reduce(vcat, nodes)], color = :magenta, linewidth = 3)
end
fig

To now determine which of these query points are inside any of the magenta regions, we have several methods:

Using DelaunayTriangulation.distance_to_polygon, check if the distance to the polygon is positive (inside) or negative (outside).
Triangulate the domain and use DelaunayTriangulation.dist to get the distance from a point to the triangulation.
Triangulate the domain and use find_polygon to find a polygon, or identify the lack of a polygon, containing the point.
Similar to the previous method, but constructing the DelaunayTriangulation.PolygonHierarchy to avoid the need for triangulating (this is what the third method does).

The most efficient approach is the first (since all of them essentially just use the first method), but for the sake of demonstration, we will show all four methods here since, for example, you might already have a triangulation and want to use that. We also emphasise that the tests we perform here do not use exact arithmetic, unlike other predicates in this package, so there may be some robustness issues for points very close to the boundary. Here is the first approach:

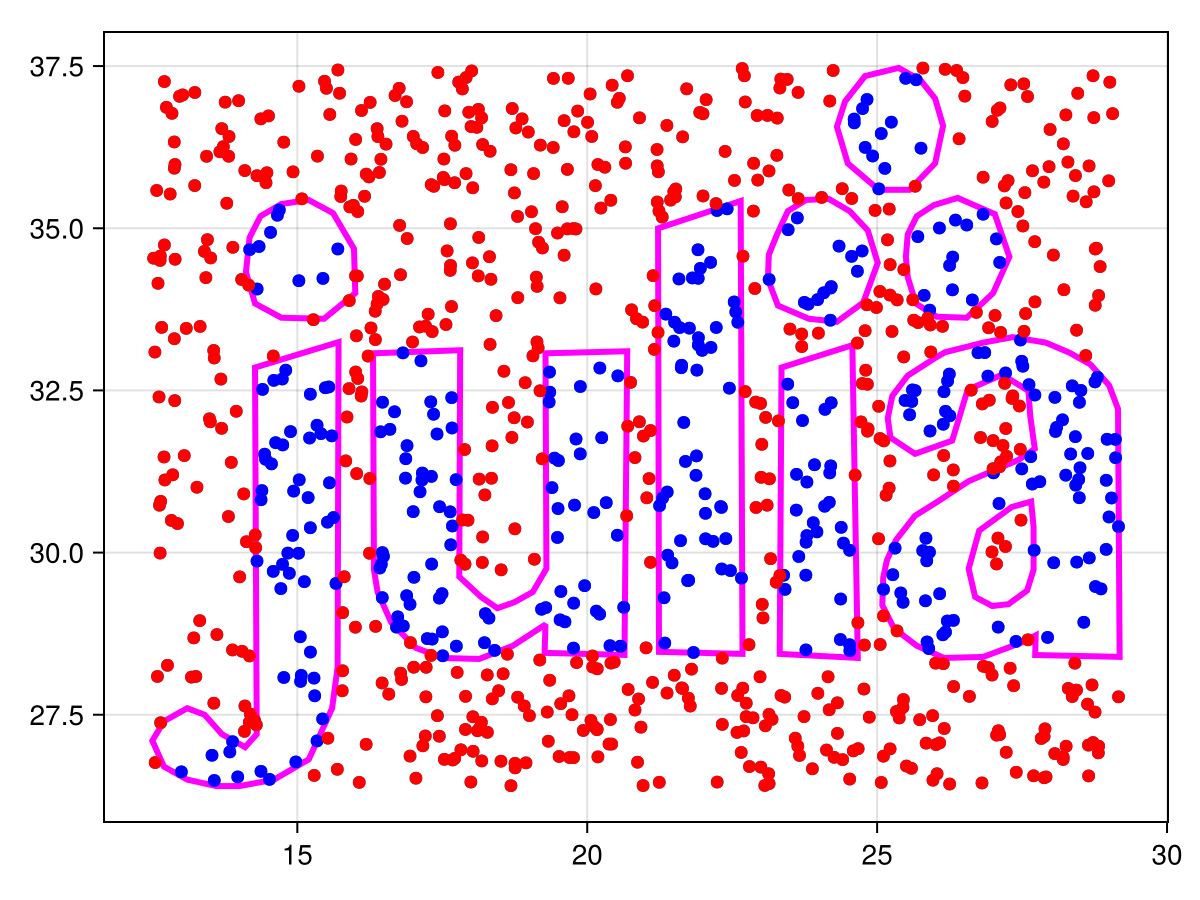

is_inside = [DelaunayTriangulation.distance_to_polygon(q, points, nodes) > 0 for q in query_points]
scatter!(ax, query_points[is_inside], color = :blue)
scatter!(ax, query_points[.!is_inside], color = :red)
fig

Here is the second method.

tri = triangulate(points; boundary_nodes = nodes)
is_inside_2 = [DelaunayTriangulation.dist(tri, q) > 0 for q in query_points];

The third method is to use find_polygon to find the polygon containing the point. If no such polygon exists, find_polygon returns 0, so this is what we use to determine if a point is inside or outside the polygon.

is_inside_3 = [find_polygon(tri, q) ≠ 0 for q in query_points];

This test is not exactly the same as the previous one (with a difference of about five points) due to points near the boundary. The fourth method is:

hierarchy = DelaunayTriangulation.construct_polygon_hierarchy(points, nodes)
is_inside_4 = [find_polygon(hierarchy, points, nodes, q) ≠ 0 for q in query_points];
