Triangulation Operations

Segment Insertion

This tutorial shows how we can add segments into a triangulation. First, load the packages we need:

using DelaunayTriangulation
using CairoMakie

Let us now define our initial triangulation.

points = [
    (0.0, 0.0), (1.0, 0.0), (1.0, 1.0), (0.0, 1.0),
    (0.9, 0.9), (0.5, 0.5), (0.2, 0.5), (0.5, 0.8),
]
tri = triangulate(points)

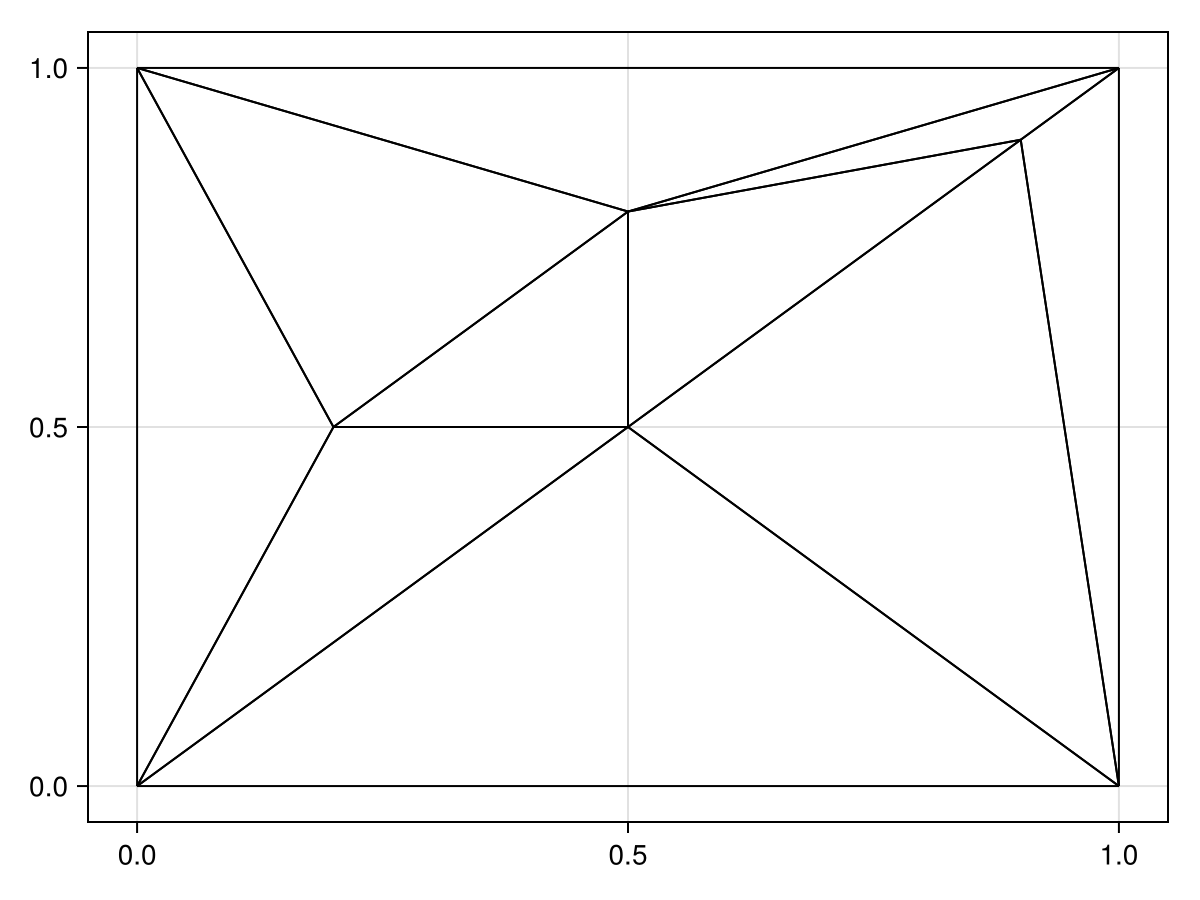

fig, ax, sc = triplot(tri)
fig

To add a segment, we use add_segment!, providing the vertices for the points that a segment should be added between. Let us add a segment between (0.0, 0.0) and (1.0, 1.0), which corresponds to vertices 1 and 3.

add_segment!(tri, 1, 3)

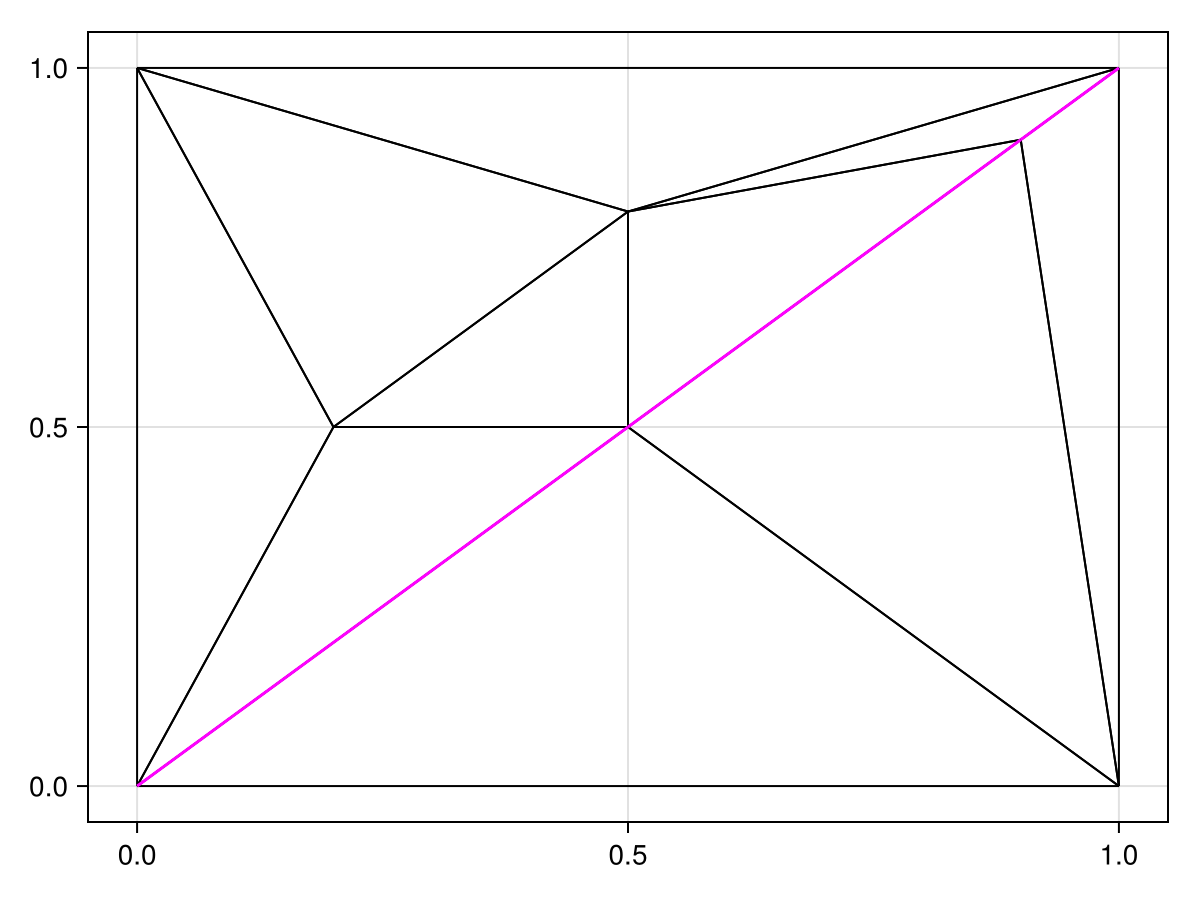

fig, ax, sc = triplot(tri, show_constrained_edges = true)
fig

Of course, this changed nothing since the segment was already there. We do note, though, that if we look at the constrained edges

get_interior_segments(tri)

Set{Tuple{Int64, Int64}} with 3 elements:
  (1, 6)
  (5, 3)
  (5, 6)

then we notice that the segment (1, 3) was converted into the segments (1, 6), (5, 3), and (5, 6). This is because the segment (1, 3) crossed through other vertices, and so the algorithm automatically breaks down the segments into a sequence of connected collinear segments.

Now we add a segment that was not already there.

add_segment!(tri, 1, 8)

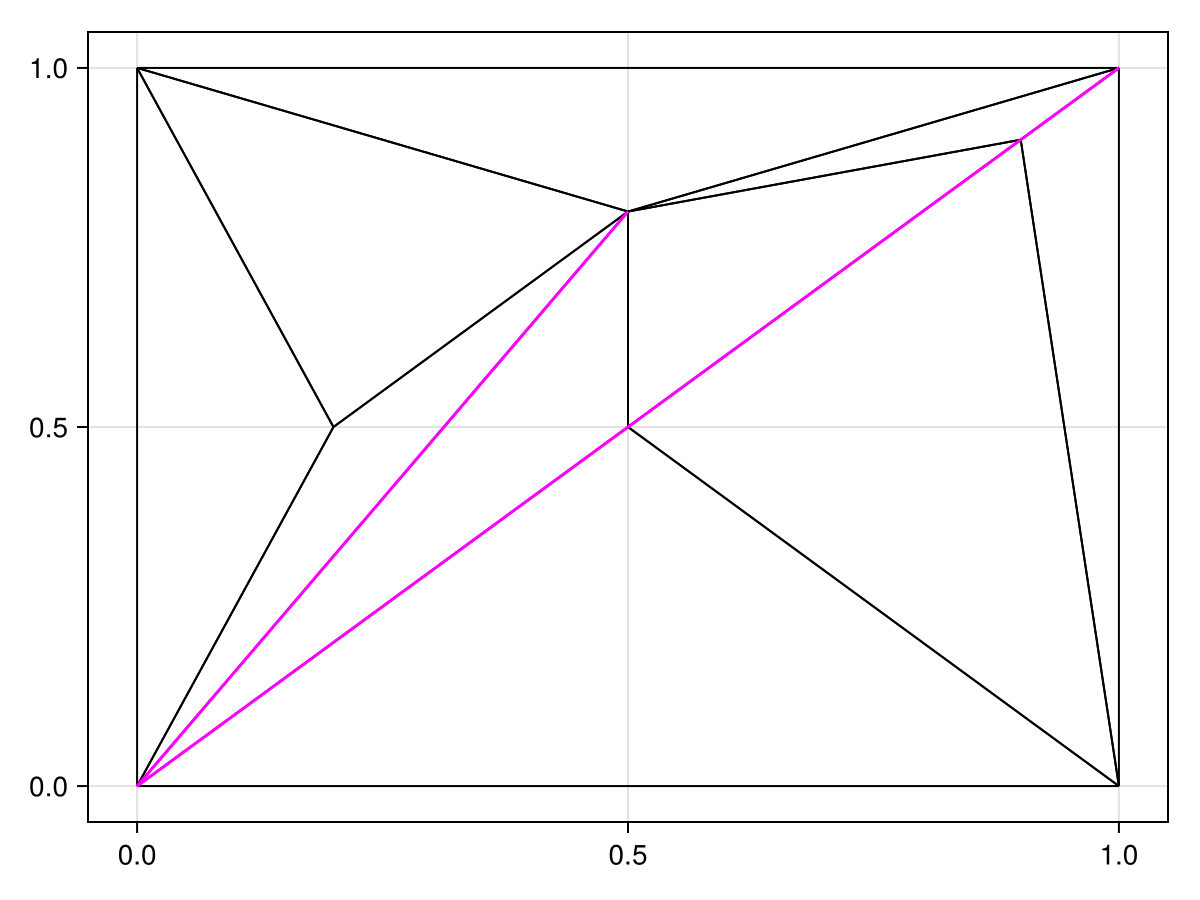

fig, ax, sc = triplot(tri, show_constrained_edges = true)
fig

Currently, the segments that you add must not intersect at an angle (they can be collinear with other edges as we have demonstrated above). To see what happens if we do this:

add_segment!(tri, 8, 2)

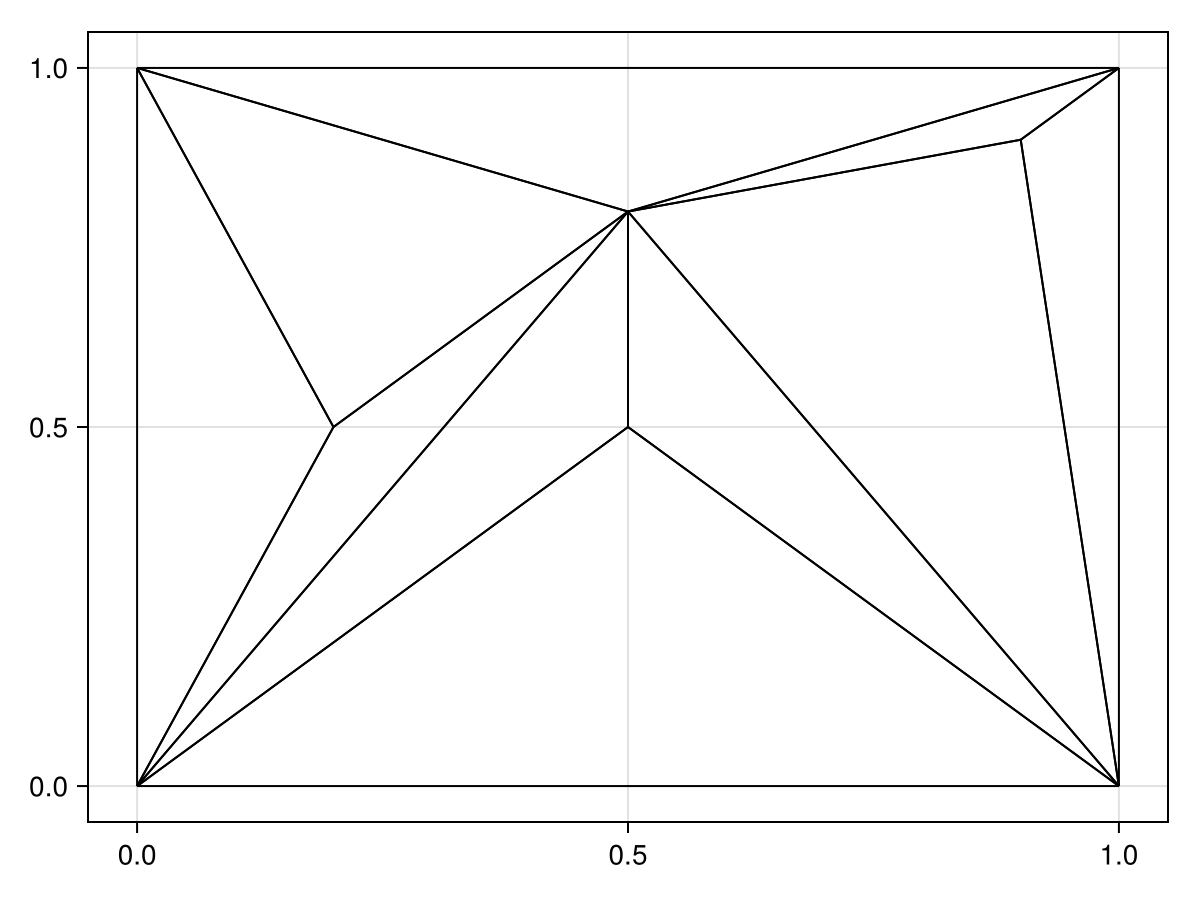

fig, ax, sc = triplot(tri)
fig

The other constrained edge was partially removed.

Just the code

An uncommented version of this example is given below. You can view the source code for this file here.

using DelaunayTriangulation
using CairoMakie

points = [
    (0.0, 0.0), (1.0, 0.0), (1.0, 1.0), (0.0, 1.0),
    (0.9, 0.9), (0.5, 0.5), (0.2, 0.5), (0.5, 0.8),
]
tri = triangulate(points)

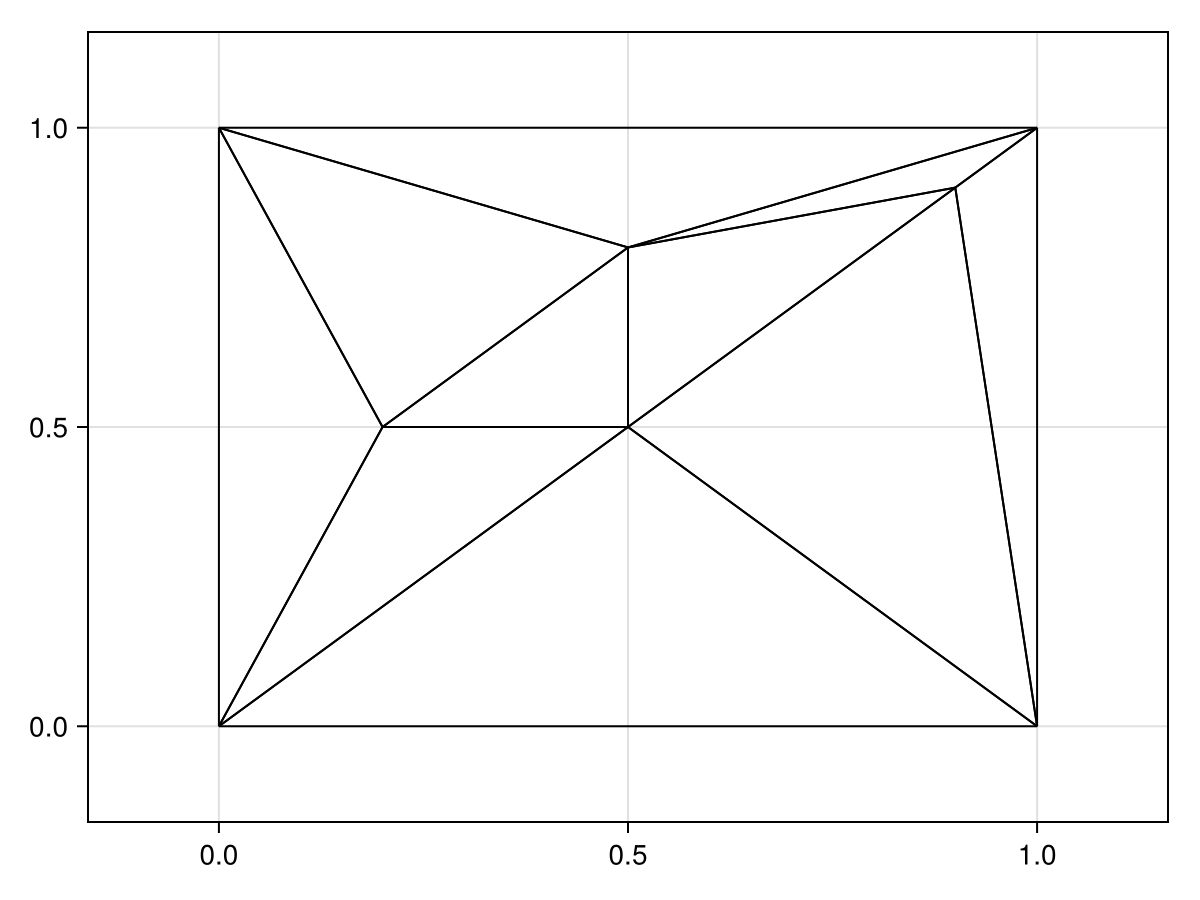

fig, ax, sc = triplot(tri)
fig

add_segment!(tri, 1, 3)

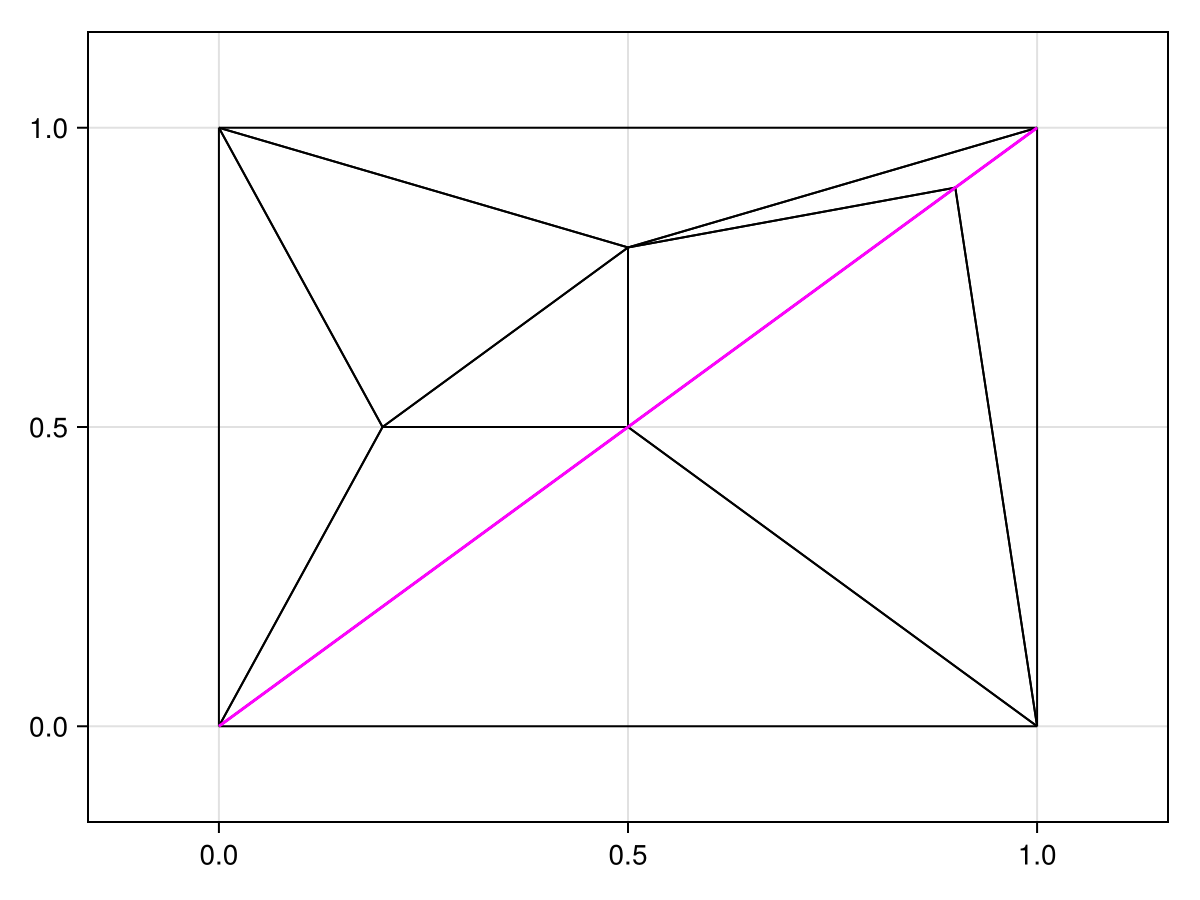

fig, ax, sc = triplot(tri, show_constrained_edges = true)
fig

get_interior_segments(tri)

add_segment!(tri, 1, 8)

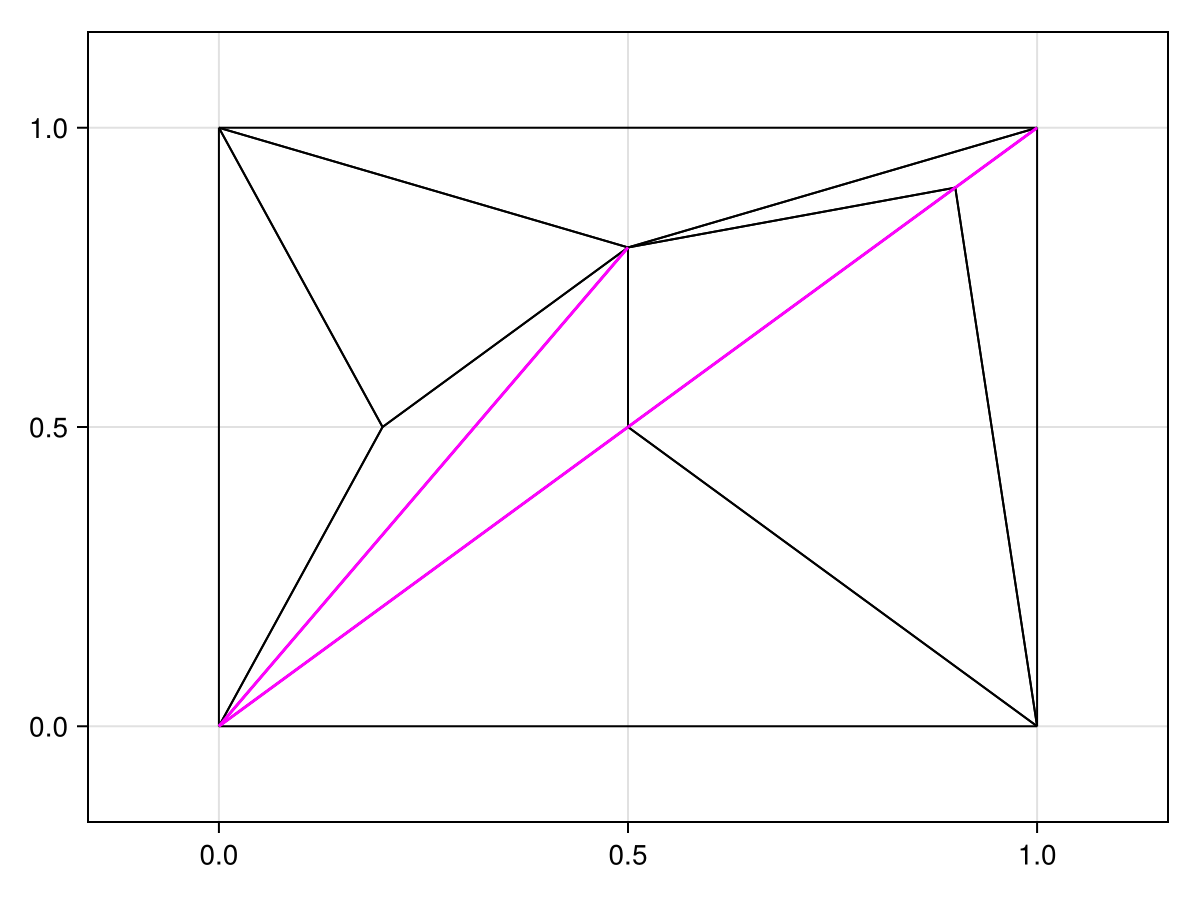

fig, ax, sc = triplot(tri, show_constrained_edges = true)
fig

add_segment!(tri, 8, 2)

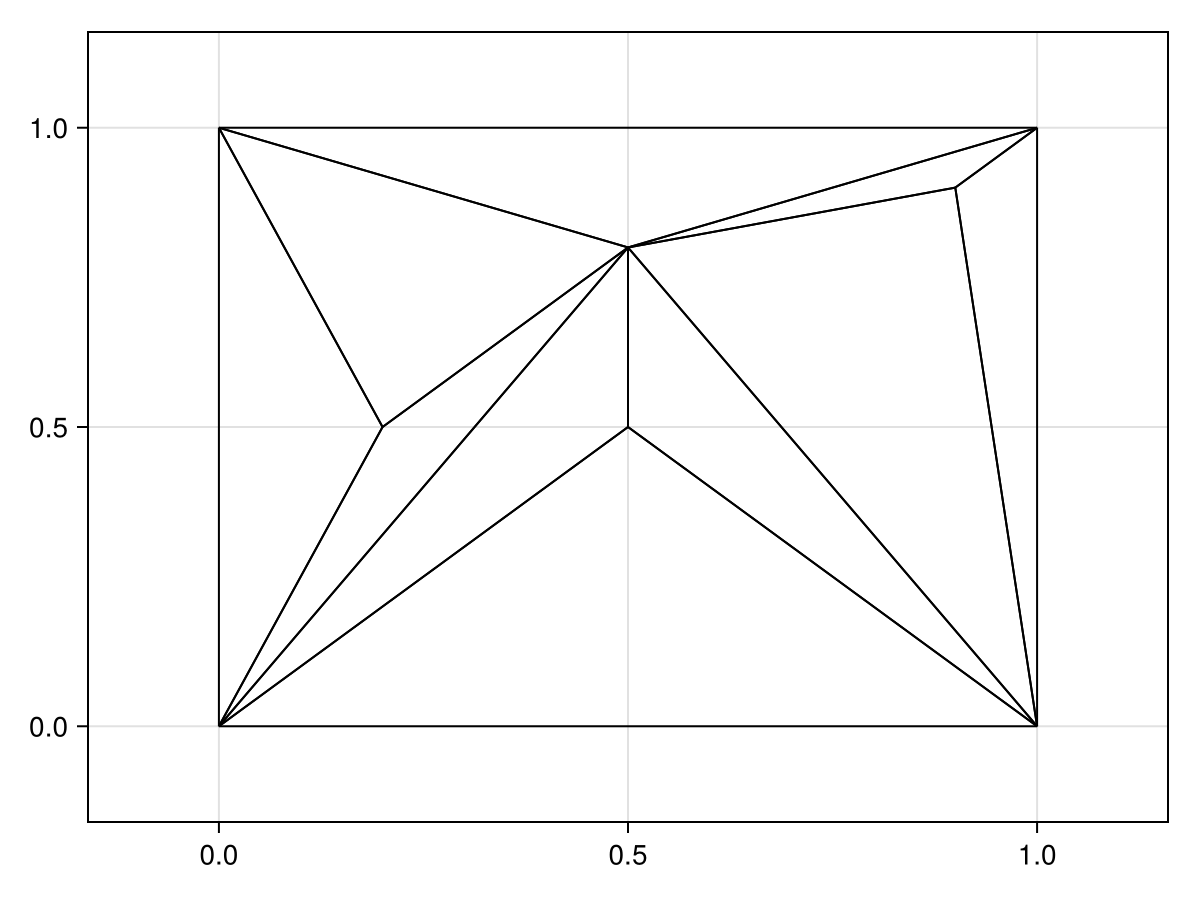

fig, ax, sc = triplot(tri)
fig
