Triangulating Convex Polygons

In this tutorial, we show how we can triangulate convex polygons. The function triangulate_convex is used for this. Let us start with a simple example.

using DelaunayTriangulation
using CairoMakie

points = [
    (10.0, 12.0), (7.0, 11.0), (8.0, 6.0),
    (10.0, 3.0), (14.0, 5.0), (15.0, 10.0),
    (13.0, 12.0),
]
S = 1:7
tri = triangulate_convex(points, 1:7)
Delaunay Triangulation.
   Number of vertices: 7
   Number of triangles: 5
   Number of edges: 11
   Has boundary nodes: false
   Has ghost triangles: true
   Curve-bounded: false
   Weighted: false
   Constrained: false
fig, ax, sc = triplot(tri)
fig

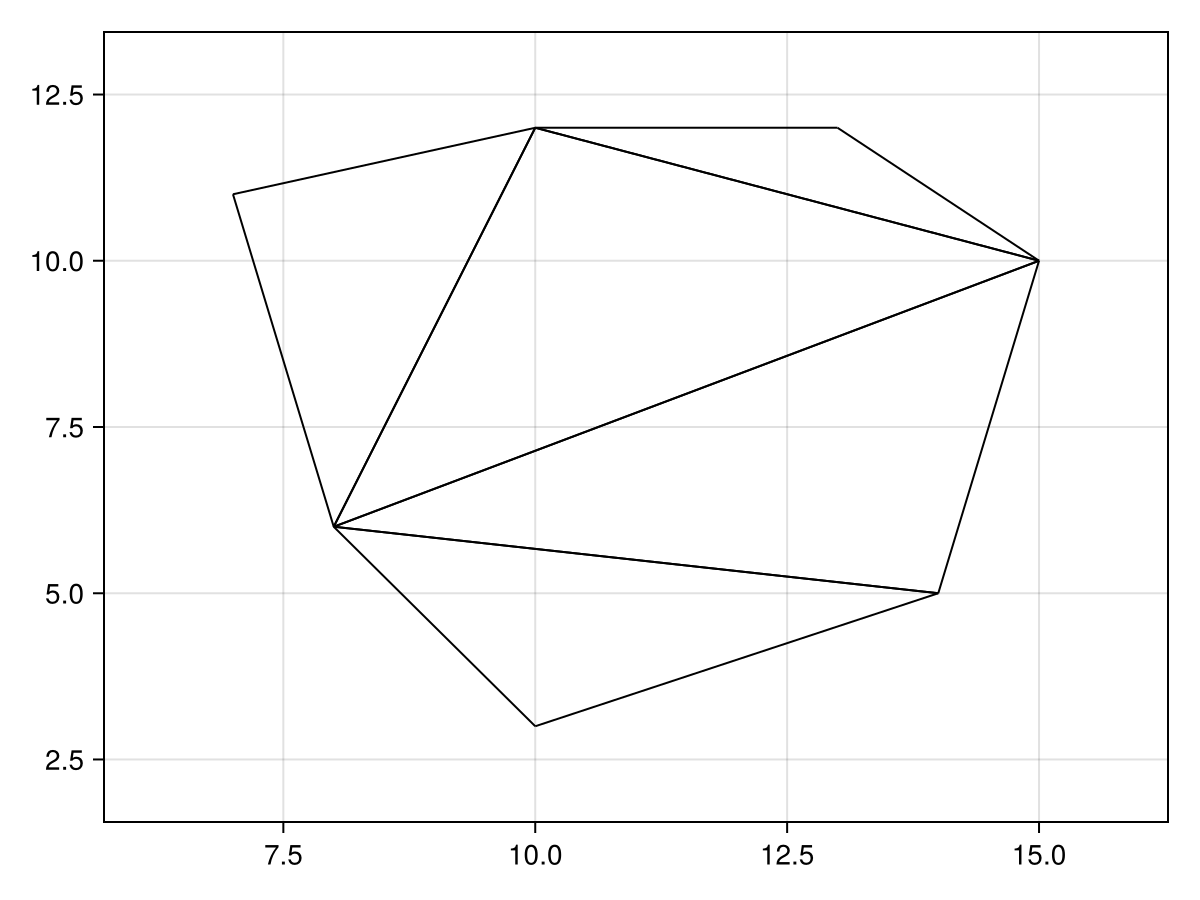

Example block output

This tri is our triangulation of the convex polygon. The first input is the set of points, and S defines the vertices to take from these points and their order, which must be provided in a counter-clockwise order. Note that points does not have to contain only the points of the polygon, since S will be used to define the points needed.

Let us give a larger example. For simplicity, we triangulate a a discretised circle.

θ = LinRange(0, 2π, 5000) |> collect
pop!(θ)
x = cos.(θ)
y = sin.(θ)
points = tuple.(x, y)
S = 1:4999 # can also be [1:4999; 1], if you want the array to be circular
tri = triangulate_convex(points, S)
Delaunay Triangulation.
   Number of vertices: 4999
   Number of triangles: 4997
   Number of edges: 9995
   Has boundary nodes: false
   Has ghost triangles: true
   Curve-bounded: false
   Weighted: false
   Constrained: false
fig, ax, sc = triplot(tri)
fig

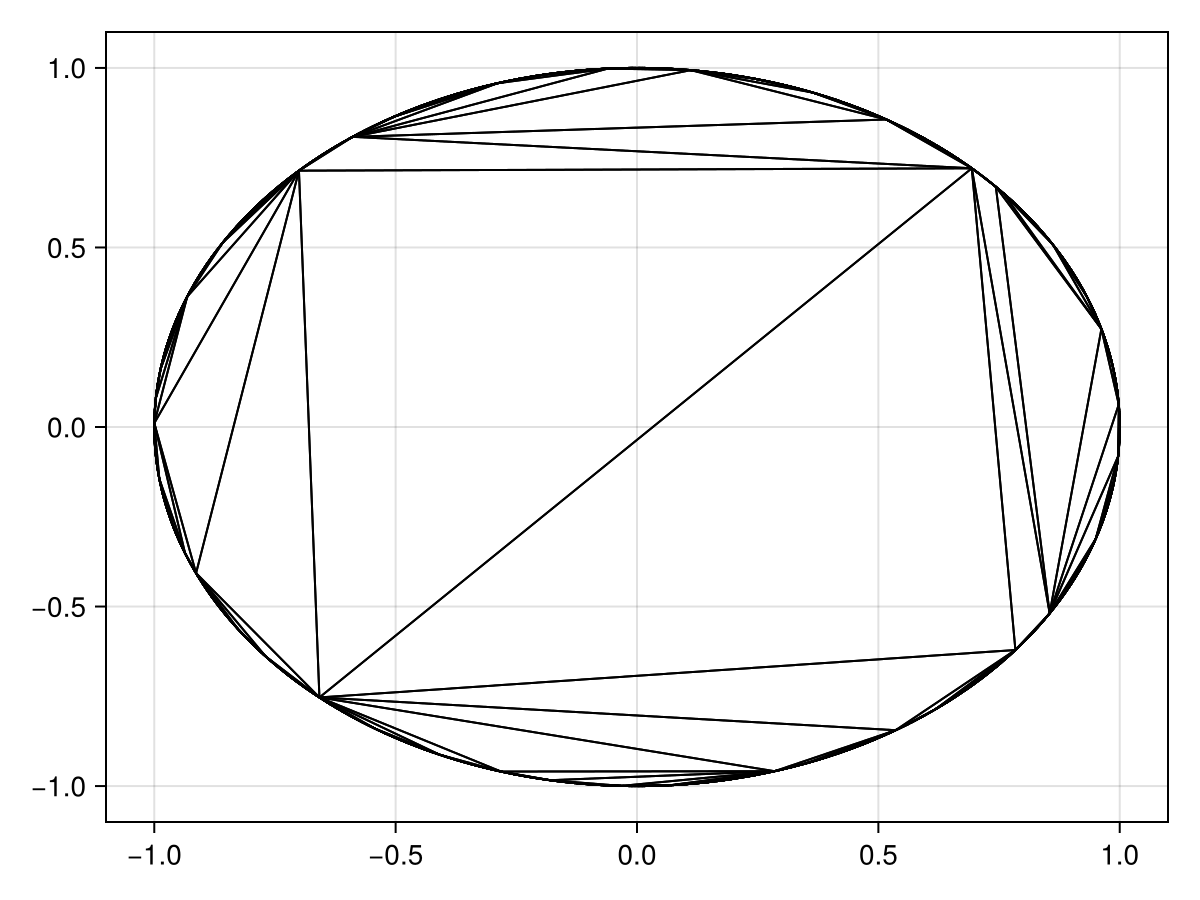

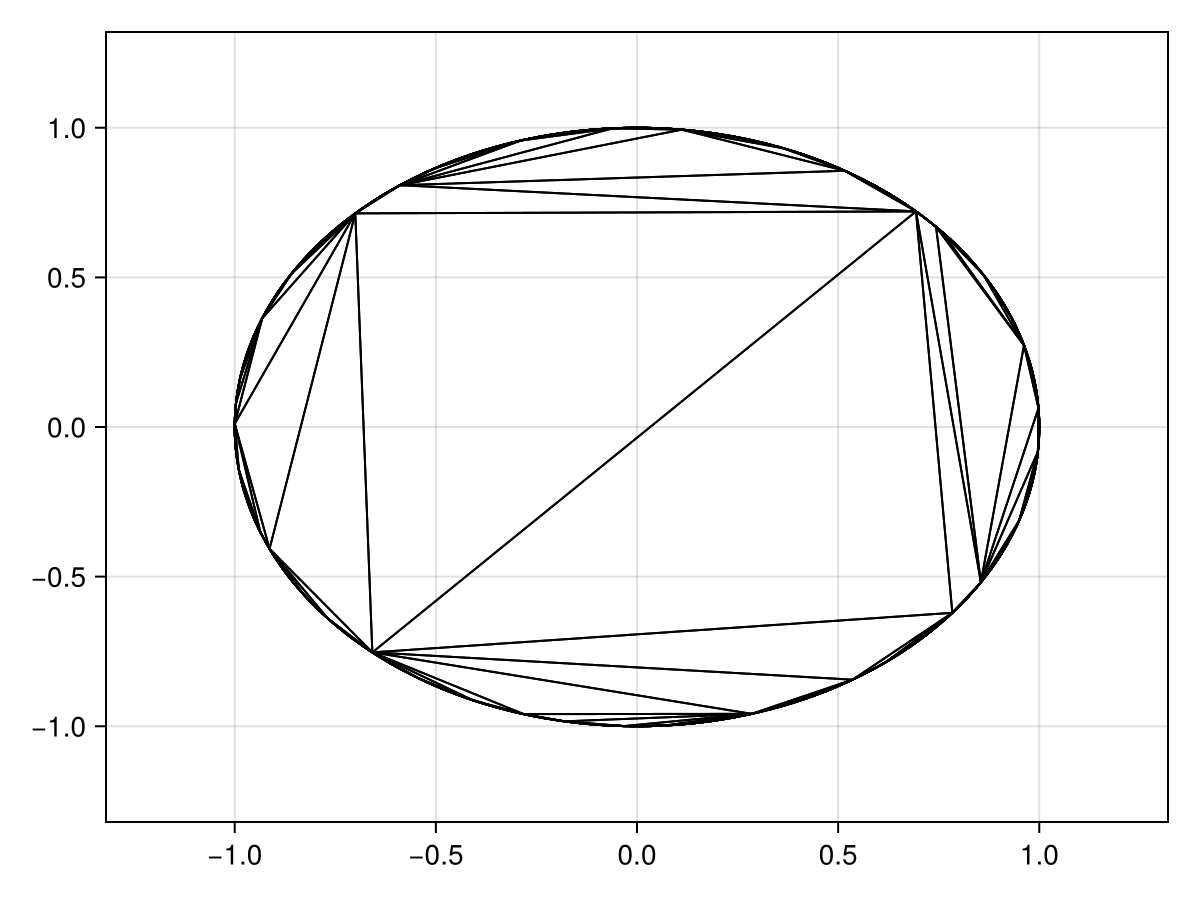

Example block output

Here is a comparison of the time it takes to triangulate this using triangulate_convex or triangulate.

using BenchmarkTools
@benchmark triangulate_convex($points, $S)
BenchmarkTools.Trial: 127 samples with 1 evaluation per sample.
 Range (minmax):  37.062 ms53.887 ms   GC (min … max): 0.00% … 30.09%
 Time  (median):     38.659 ms               GC (median):    0.00%
 Time  (mean ± σ):   39.534 ms ±  2.601 ms   GC (mean ± σ):  2.87% ±  5.10%

   ▁██ ▆
  ▄███▆█▆▅▃▅▆▄▄▄▃▁▄▁▄▄▄▁▁▄▄▁▃▁▁▃▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▃ ▃
  37.1 ms         Histogram: frequency by time        52.8 ms <

 Memory estimate: 16.03 MiB, allocs estimate: 59761.
@benchmark triangulate($points)
BenchmarkTools.Trial: 17 samples with 1 evaluation per sample.
 Range (minmax):  290.418 ms302.334 ms   GC (min … max): 0.00% … 2.31%
 Time  (median):     293.952 ms                GC (median):    0.00%
 Time  (mean ± σ):   294.826 ms ±   3.492 ms   GC (mean ± σ):  0.14% ± 0.56%

  ▁ ▁   █    ▁▁▁   █ ▁        ▁   ▁   █                   ▁  ▁
  █▁█▁▁▁█▁▁▁▁███▁▁▁█▁█▁▁▁▁▁▁▁█▁▁▁█▁▁▁█▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁█▁▁█ ▁
  290 ms           Histogram: frequency by time          302 ms <

 Memory estimate: 16.93 MiB, allocs estimate: 44682.

For the smaller example that we started with above, triangulate_convex is also faster, although not by much (≈15.10 μs versus ≈10.7 μs).
