Clipped Voronoi Tessellations

Clipping to a Rectangle

In the previous tutorial, we demonstrated how we can clip to the convex hull of the point set. However, it is often useful to clip to a rectangle, for example if you want to clip to a region of interest in a simulation. Here we obtain the coordinates just by looping over all the polygons, but you can also use this by providing a clip_polygon into voronoi, as described in this tutorial.

Let us now demonstrate. First, we construct a tessellation of some example point set.

using DelaunayTriangulation
using CairoMakie
A = (-3.0, 7.0)
B = (1.0, 6.0)
C = (-1.0, 3.0)
D = (-2.0, 4.0)
E = (3.0, -2.0)
F = (5.0, 5.0)
G = (-4.0, -3.0)
H = (3.0, 8.0)
points = [A, B, C, D, E, F, G, H]
tri = triangulate(points)
vorn = voronoi(tri)
Voronoi Tessellation.
    Number of generators: 8
    Number of polygon vertices: 9
    Number of polygons: 8
    Weighted: false

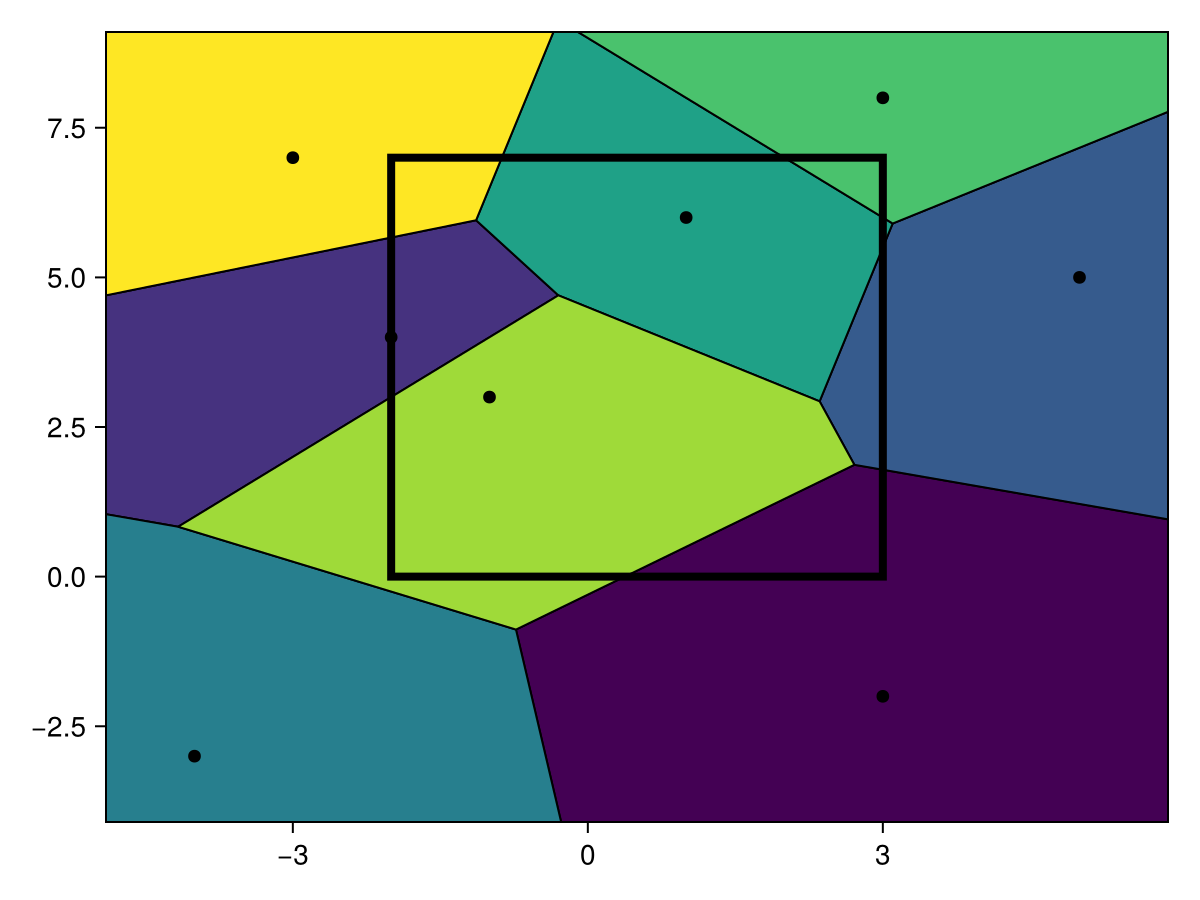

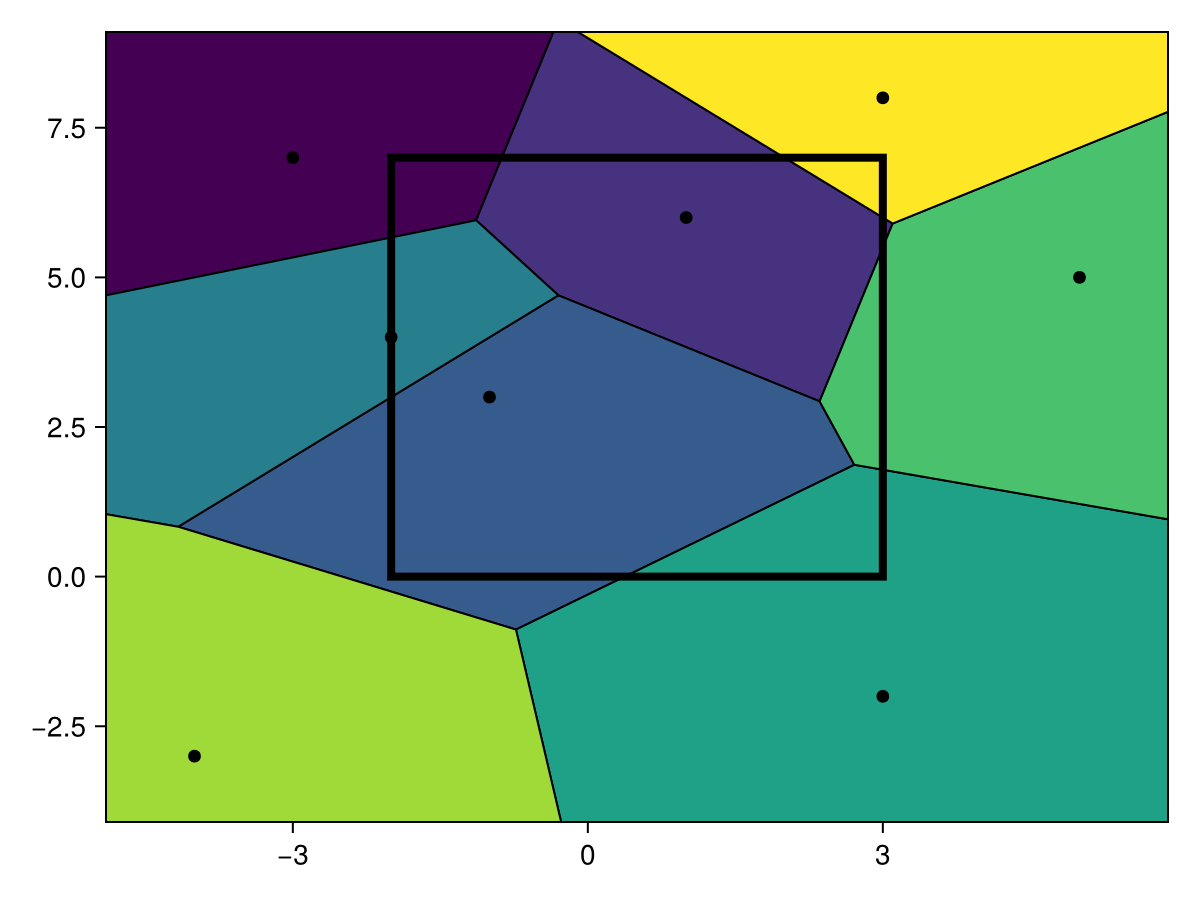

Let us show the tessellation, and the rectangle we want to clip the tessellation to.

fig, ax, sc = voronoiplot(vorn)
a, b, c, d = -2.0, 3.0, 0.0, 7.0
lines!(ax, [(a, c), (b, c), (b, d), (a, d), (a, c)], color = :black, linewidth = 4)
fig
Example block output

To apply this clipping, we need to provide a bounding box of the form (xmin, xmax, ymin, ymax). Here, we will use

bounding_box = (a, b, c, d)
(-2.0, 3.0, 0.0, 7.0)

You can obtain some reasonable defaults for this bounding box using DelaunayTriangulation.polygon_bounds(vorn). The coordinates for each polygon clipped to this box can be obtained as follows.

clipped_coords = Vector{Vector{NTuple{2, Float64}}}(undef, num_polygons(vorn))
for i in each_polygon_index(vorn)
    clipped_coords[i] = get_polygon_coordinates(vorn, i, bounding_box)
end
clipped_coords
8-element Vector{Vector{Tuple{Float64, Float64}}}:
 [(-2.000000000000001, 7.0), (-2.0, 5.666666666666667), (-1.1363636363636365, 5.954545454545455), (-0.8750000000000009, 7.0), (-2.000000000000001, 7.0)]
 [(-0.30000000000000004, 4.7), (2.357142857142857, 2.9285714285714284), (3.0, 5.499999999999999), (3.0, 6.0), (2.0, 7.0), (-0.8750000000000009, 7.0), (-1.1363636363636365, 5.954545454545455), (-0.30000000000000004, 4.7)]
 [(0.375, 0.0), (2.710526315789474, 1.868421052631579), (2.357142857142857, 2.9285714285714284), (-0.30000000000000004, 4.7), (-2.0, 3.0), (-2.0, 0.0), (0.375, 0.0)]
 [(-2.0, 3.0), (-0.30000000000000004, 4.7), (-1.1363636363636365, 5.954545454545455), (-2.0, 5.666666666666667), (-2.0, 3.0)]
 [(3.0, 0.0), (3.0, 1.7857142857142858), (2.710526315789474, 1.868421052631579), (0.375, 0.0), (3.0, 0.0)]
 [(3.0, 1.7857142857142858), (3.0, 5.499999999999999), (2.357142857142857, 2.9285714285714284), (2.710526315789474, 1.868421052631579), (3.0, 1.7857142857142858)]
 []
 [(3.0, 7.0), (2.0, 7.0), (3.0, 6.0), (3.0, 7.0)]

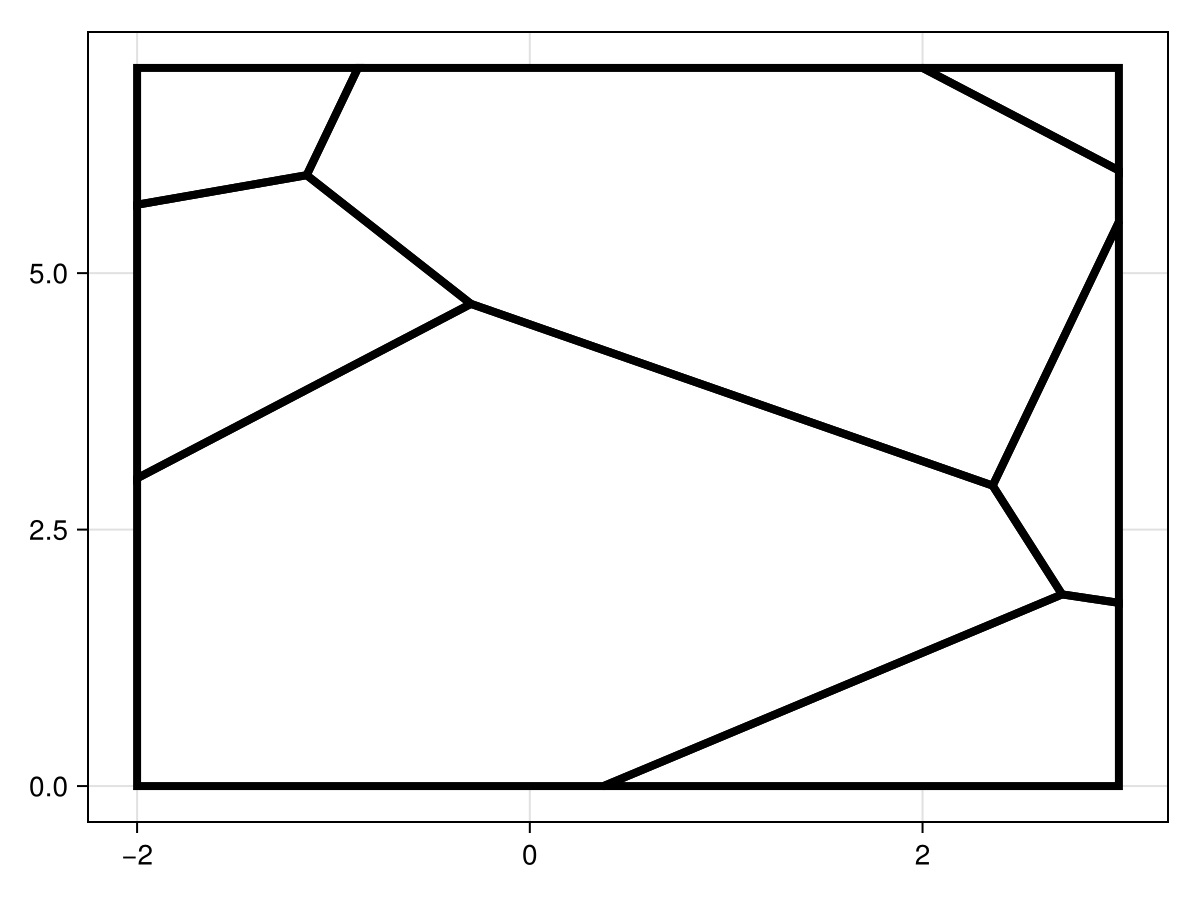

Now let's plot these.

fig, ax, sc = poly(clipped_coords, color = :white, strokewidth = 4)
fig
Example block output

As we can see, the polygons have been clipped to the rectangle. Note that if you just want this for plotting, you can also call voronoiplot with the bounding_box keyword argument.

Just the code

An uncommented version of this example is given below. You can view the source code for this file here.

using DelaunayTriangulation
using CairoMakie
A = (-3.0, 7.0)
B = (1.0, 6.0)
C = (-1.0, 3.0)
D = (-2.0, 4.0)
E = (3.0, -2.0)
F = (5.0, 5.0)
G = (-4.0, -3.0)
H = (3.0, 8.0)
points = [A, B, C, D, E, F, G, H]
tri = triangulate(points)
vorn = voronoi(tri)

fig, ax, sc = voronoiplot(vorn)
a, b, c, d = -2.0, 3.0, 0.0, 7.0
lines!(ax, [(a, c), (b, c), (b, d), (a, d), (a, c)], color = :black, linewidth = 4)
fig

bounding_box = (a, b, c, d)

clipped_coords = Vector{Vector{NTuple{2, Float64}}}(undef, num_polygons(vorn))
for i in each_polygon_index(vorn)
    clipped_coords[i] = get_polygon_coordinates(vorn, i, bounding_box)
end
clipped_coords

fig, ax, sc = poly(clipped_coords, color = :white, strokewidth = 4)
fig

This page was generated using Literate.jl.
